Rear Springs And Shock Absorbers (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Rear Springs And Shock Absorbers (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038196 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR061358 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR033244 NUT Enquire To Order
Photo Part No Description Price (each) Stock
LR061467 KIT - SUSPENSION SPRING AND PAD Enquire To Order
LR061468 KIT - SUSPENSION SPRING AND PAD Enquire To Order
LR061469 KIT - SUSPENSION SPRING AND PAD Enquire To Order
...and 31 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR061355 SHOCK ABSORBER - REAR Enquire To Order
LR098141 SHOCK ABSORBER - REAR Enquire To Order
Photo Part No Description Price (each) Stock
LR078648 BRACKET - SHOCK ABSORBER Enquire To Order
LR078649 BRACKET - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR061478 PAD - SUSPENSION SPRING Enquire To Order
LR068309 PAD - SUSPENSION SPRING Enquire To Order
Photo Part No Description Price (each) Stock
LR061479 PAD - ANTI-SQUEAK Enquire To Order
Photo Part No Description Price (each) Stock
LR061353 BUMPER - SHOCK ABSORBER Enquire To Order
Photo Part No Description Price (each) Stock
LR061354 BOOT - SHOCK ABSORBER Enquire To Order
View All

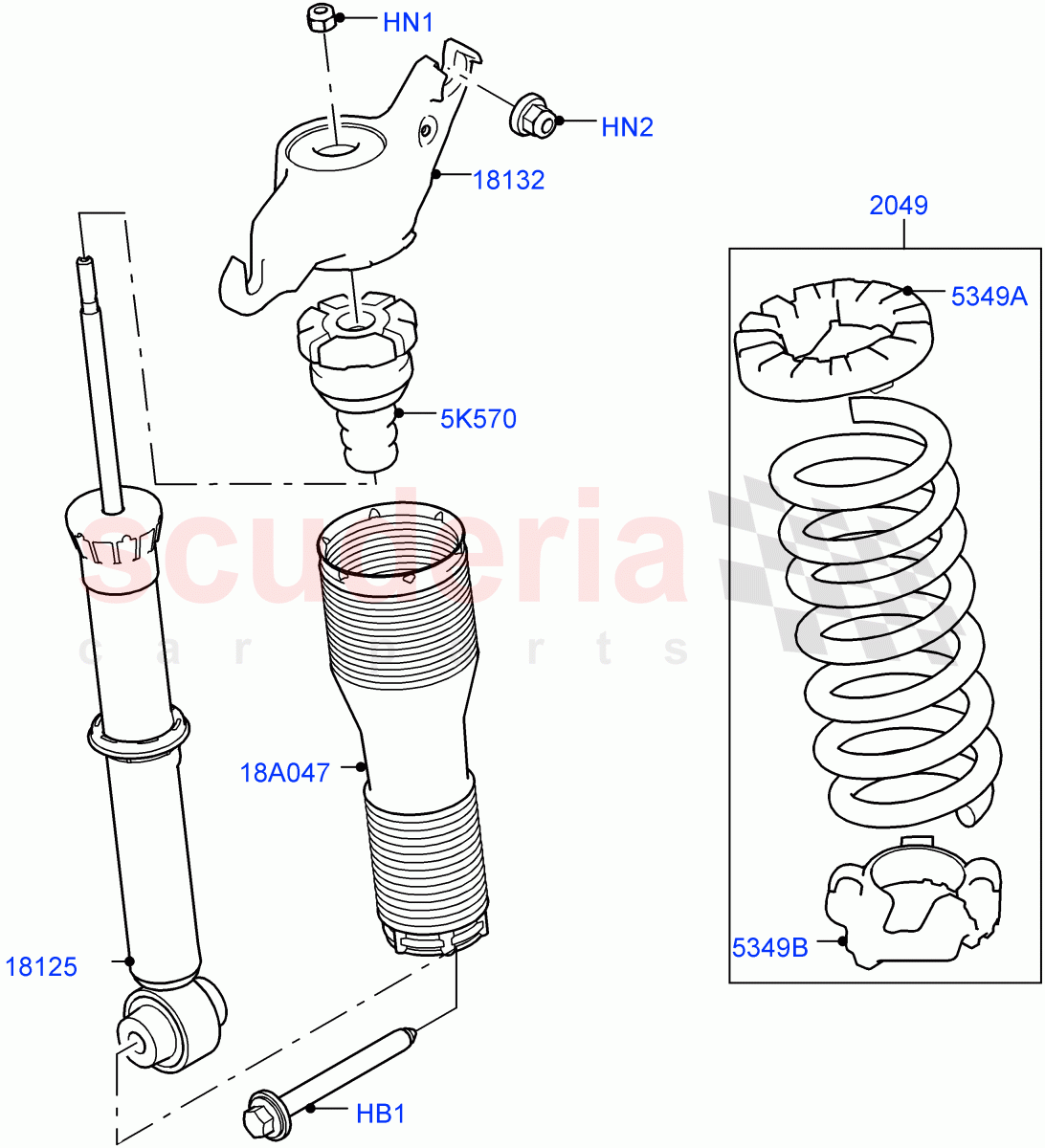

Rear Springs And Shock Absorbers (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR038196
BOLT
HEX Flange, Hexagonal Head, M14 X 125 / From: GT000001 		- 2 Enquire
HN1 LR061358
NUT
M10 x 1.0 / From: GT000001 		- 2 Enquire
HN2 LR033244
NUT
Hexagonal Head, M12 / From: GT000001 		- 4 Enquire
5K570 LR061353
BUMPER - SHOCK ABSORBER
From: GT000001 		- 2 Enquire
18A047 LR061354
BOOT - SHOCK ABSORBER
From: GT000001 		- 2 Enquire
2049 LR061467
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-A / Orange/Red/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061468
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-B / Orange/Yellow/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061469
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-C / Orange/Blue/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061470
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-D / Orange/Green/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061471
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-E / Orange/White/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061472
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-F / Orange/Pink/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061473
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-G / Orange/Brown/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061474
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-H / Orange/Grey/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061475
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-J / Orange / Orange / White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061476
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-K / Grey/Red/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR061477
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-L / Grey/Yellow/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR066160
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-N / Grey/Blue/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR066159
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-P / Grey/Green/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR066158
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-Q / Grey/White/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR067138
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-R / Grey/Pink/White / From: GT000001 / To: HT999999 		- 2 Enquire
2049 LR078714
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-S / White / Green / White / From: GT000001 		- 2 Enquire
2049 LR078660
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-A / Purple / White / White / From: JT000001 		- 2 Enquire
2049 LR078661
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-B / Pink / Red / White / From: JT000001 		- 2 Enquire
2049 LR078662
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-C / Pink / Blue / White / From: JT000001 		- 2 Enquire
2049 LR078663
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-D / Pink / White / White / From: JT000001 		- 2 Enquire
2049 LR078664
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-E / Green / Red / White / From: JT000001 		- 2 Enquire
2049 LR078698
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-F / Green / Blue / White / From: JT000001 		- 2 Enquire
2049 LR078699
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-G / Yellow / Red / White / From: JT000001 		- 2 Enquire
2049 LR078700
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-H / White / Blue / White / From: JT000001 		- 2 Enquire
2049 LR078704
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-N / Pink / Pink / White / From: JT000001 		- 2 Enquire
2049 LR078711
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-P / Green / Yellow / White / From: JT000001 		- 2 Enquire
2049 LR078712
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-Q / Green / Green / White / From: JT000001 		- 2 Enquire
2049 LR078713
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-R / Yellow / Yellow / White / From: JT000001 		- 2 Enquire
2049 LR078715
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-T / Blue / Yellow / White / From: JT000001 		- 2 Enquire
2049 LR078716
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-U / Blue / Red / White / From: JT000001 		- 2 Enquire
2049 LR078701
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-J / Purple / Grey / White / From: JT000001 		- 2 Enquire
2049 LR078702
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-K / Pink / Yellow / White / From: JT000001 		- 2 Enquire
2049 LR078703
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-L / Pink / Green / White / From: JT000001 		- 2 Enquire
2049 LR073527
KIT - SUSPENSION SPRING AND PAD
Rear Spring Load Class-T / Brown/Pink/White / From: GT000001 / To: HT999999 		- 2 Enquire
5349A LR061478
PAD - SUSPENSION SPRING
Thin, Upper / From: GT000001 		- 2 Enquire
5349A LR068309
PAD - SUSPENSION SPRING
Thick, Upper / From: GT000001 		- 2 Enquire
5349B LR061479
PAD - ANTI-SQUEAK
Lower / From: GT000001 		- 2 Enquire
18125 LR061355
SHOCK ABSORBER - REAR
RH/LH / From: GT000001 / To: JT999999 		- 2 Enquire
18125 LR098141
SHOCK ABSORBER - REAR
RH/LH / From: KT000001 		- 2 Enquire
18132 LR078648
BRACKET - SHOCK ABSORBER
RH, Shock Absorber Mounting, Top / From: GT000001 		- 1 Enquire
18132 LR078649
BRACKET - SHOCK ABSORBER
LH, Shock Absorber Mounting, Top / From: GT000001 		- 1 Enquire
