Electronic Damper Control (Halewood (UK)) ((V) FROMLH000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Electronic Damper Control (Halewood (UK)) ((V) FROMLH000001)

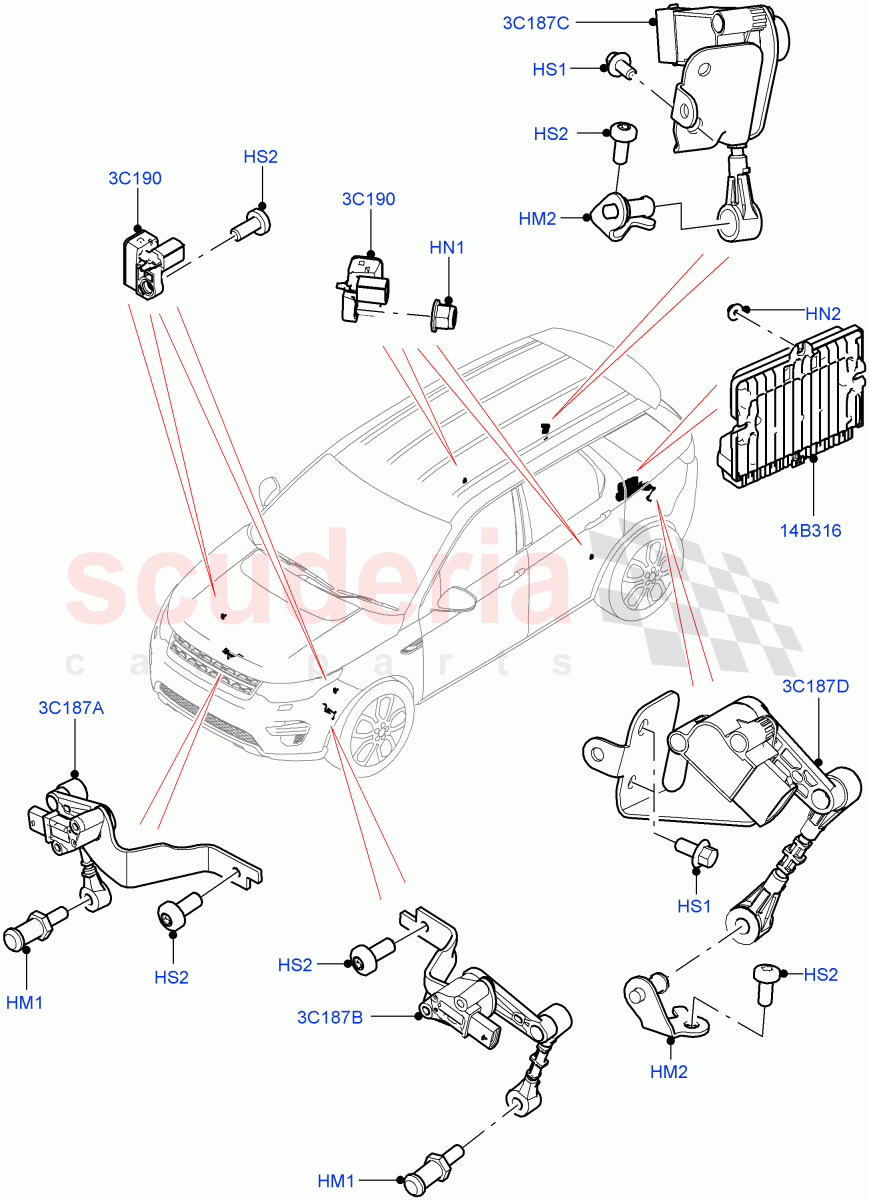

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR001707	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020475	PIN	Enquire	To Order
	LR020477	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500190	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500920	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114035	SENSOR - ACCELERATION	Enquire	To Order
	LR149962	SENSOR - ACCELERATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117752	MODULE - ECU	Enquire	To Order
	LR139998	MODULE - ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114546	SENSOR - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114543	SENSOR - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114545	SENSOR - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114542	SENSOR - AIR SUSPENSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HM1	LR001707	PIN	LR001707 PIN 16 MM, Front, PIVOT / From: LH000001	-	2	Enquire
HM2	LR020475	PIN	LR020475 PIN RH, PIVOT, Rear / From: LH000001	-	1	Enquire
HM2	LR020477	PIN	LR020477 PIN LH, PIVOT, Rear / From: LH000001	-	1	Enquire
HN1	FY106046	NUT - HEX.	FY106046 NUT - HEX. Active Damping / Hexagonal Head, M6 / From: LH000001	-	2	Enquire
HN2	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Active Damping / Hexagonal Head, M6, Nut And Washer / From: LH000001	-	5	Enquire
HS1	RYP500190	SCREW	RYP500190 SCREW Hexagonal Head, M6 x 12MM / From: LH000001	-	4	Enquire
HS2	RYP500920	SCREW	RYP500920 SCREW M6 X 14MM, Torx / From: LH000001	-	6	Enquire
3C187A	LR114546	SENSOR - AIR SUSPENSION	LR114546 SENSOR - AIR SUSPENSION RH, Front, Height Sensor / From: LH000001	-	1	Enquire
3C187B	LR114543	SENSOR - AIR SUSPENSION	LR114543 SENSOR - AIR SUSPENSION Active Damping / LH, Front, Height Sensor / From: LH000001	-	1	Enquire
3C187C	LR114545	SENSOR - AIR SUSPENSION	LR114545 SENSOR - AIR SUSPENSION RH, Height Sensor, Rear / From: LH000001	-	1	Enquire
3C187D	LR114542	SENSOR - AIR SUSPENSION	LR114542 SENSOR - AIR SUSPENSION Active Damping / LH, Height Sensor, Rear / From: LH000001	-	1	Enquire
3C190	LR114035	SENSOR - ACCELERATION	LR114035 SENSOR - ACCELERATION Active Damping / Accelerometer / From: LH000001 / To: MH887315	-	4	Enquire
3C190	LR149962	SENSOR - ACCELERATION	LR149962 SENSOR - ACCELERATION Active Damping / Accelerometer / From: MH887316	-	4	Enquire
14B316	LR117752	MODULE - ECU	LR117752 MODULE - ECU Active Damping / From: LH000001 / To: LH999999	-	1	Enquire
14B316	LR139998	MODULE - ECU	LR139998 MODULE - ECU Active Damping / From: MH000001	-	1	Enquire
