Front Suspension Struts And Springs (Halewood (UK)) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Front Suspension Struts And Springs (Halewood (UK)) ((V) TOKH999999)

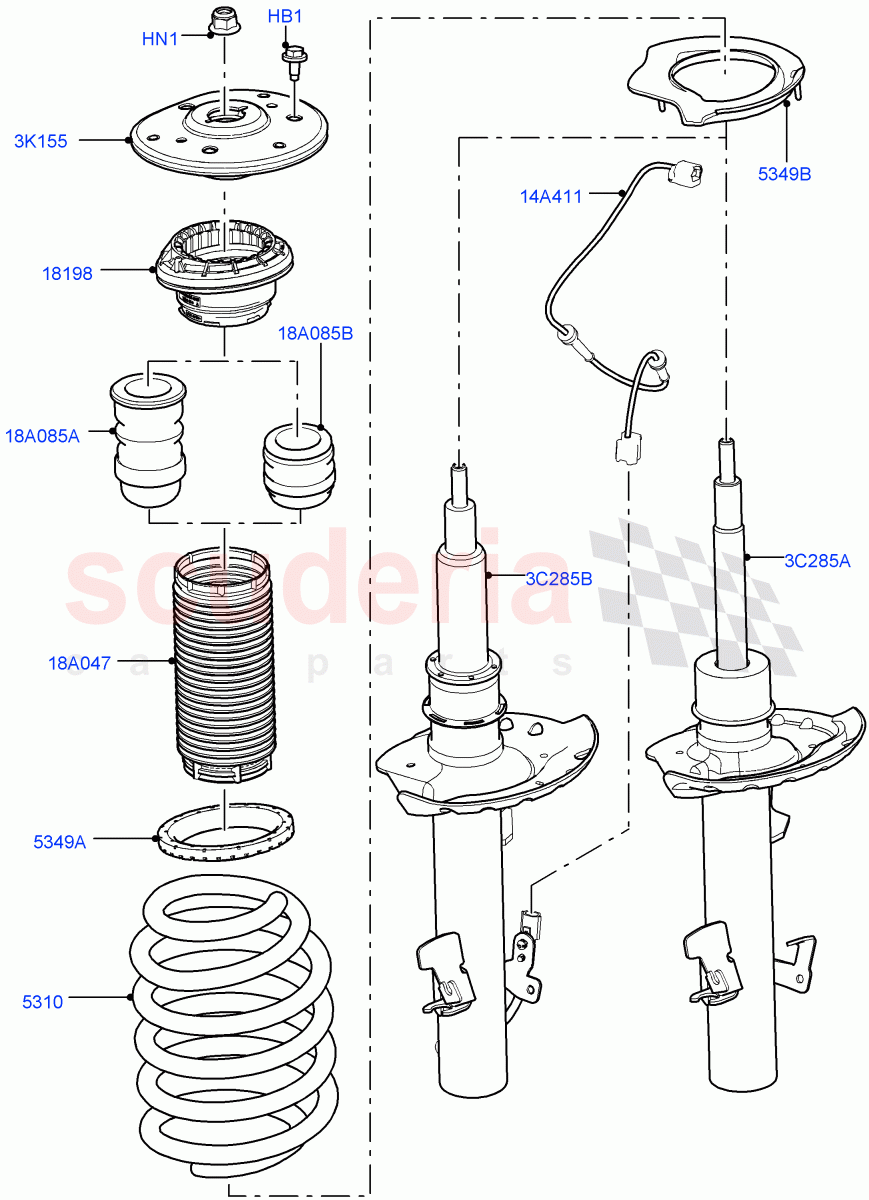

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR008026	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000055	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060796	SPRING - SUSPENSION - FRONT	Enquire	To Order
	LR060797	SPRING - SUSPENSION - FRONT	Enquire	To Order
	LR096076	SPRING - SUSPENSION - FRONT	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR121039	INSULATOR - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024477	MOUNTING - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR009664	PAD - SUSPENSION SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028618	PAD - ANTI-SQUEAK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR064632	WIRING - MAGNETIC DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073344	BOOT - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060804	MACPHERSON STRUT	Enquire	To Order
	LR084894	MACPHERSON STRUT	Enquire	To Order
	LR060807	MACPHERSON STRUT	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR060818	MACPHERSON STRUT	Enquire	To Order
	LR060817	MACPHERSON STRUT	Enquire	To Order
	LR060817	MACPHERSON STRUT	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR001144	BUMPER - SHOCK ABSORBER	Enquire	To Order
	LR075377	BUMPER - SHOCK ABSORBER	Enquire	To Order
	LR075377	BUMPER - SHOCK ABSORBER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024476	BUMPER - SHOCK ABSORBER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR008026	BOLT	LR008026 BOLT Bolt And Washer, M8 X 17MM	-	6	Enquire
HN1	LR000055	NUT - HEX.	LR000055 NUT - HEX. M12 x 1.25MM	-	2	Enquire
3C285A	LR060804	MACPHERSON STRUT	LR060804 MACPHERSON STRUT Less Adaptive Damping / RH, Less Magnetic Damping System / To: GH581454	-	1	Enquire
3C285A	LR084894	MACPHERSON STRUT	LR084894 MACPHERSON STRUT Less Adaptive Damping / RH, Less Magnetic Damping System / From: GH581455 / To: GH999999	-	1	Enquire
3C285A	LR060807	MACPHERSON STRUT	LR060807 MACPHERSON STRUT Less Adaptive Damping / LH, Less Magnetic Damping System / To: GH581454	-	1	Enquire
3C285A	LR084745	MACPHERSON STRUT	LR084745 MACPHERSON STRUT Less Adaptive Damping / LH, Less Magnetic Damping System / From: GH581455 / To: GH999999	-	1	Enquire
3C285A	LR085963	MACPHERSON STRUT	LR085963 MACPHERSON STRUT AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: HH000001 / To: HH999999	-	1	Enquire
3C285A	LR084894	MACPHERSON STRUT	LR084894 MACPHERSON STRUT Less AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: HH000001 / To: HH999999	-	1	Enquire
3C285A	LR085964	MACPHERSON STRUT	LR085964 MACPHERSON STRUT AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: HH000001 / To: HH999999	-	1	Enquire
3C285A	LR084745	MACPHERSON STRUT	LR084745 MACPHERSON STRUT Less AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: HH000001 / To: HH999999	-	1	Enquire
3C285A	LR092360	MACPHERSON STRUT	LR092360 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 16, Less AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: JH000001 / To: JH768055	-	1	Enquire
3C285A	LR084745	MACPHERSON STRUT	LR084745 MACPHERSON STRUT Front Disc And Caliper Size 17, Less AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: JH000001 / To: JH768055	-	1	Enquire
3C285A	LR092359	MACPHERSON STRUT	LR092359 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 16, Less AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: JH000001 / To: JH768055	-	1	Enquire
3C285A	LR084894	MACPHERSON STRUT	LR084894 MACPHERSON STRUT Disc Brake Size Frt 17/RR 17, Less AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: JH000001 / To: JH768055	-	1	Enquire
3C285A	LR116116	MACPHERSON STRUT	LR116116 MACPHERSON STRUT Front Disc And Caliper Size 17, Less AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: JH768056	-	1	Enquire
3C285A	LR116118	MACPHERSON STRUT	LR116118 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 17, Less AMS Conversion, Less Adaptive Damping / RH, Less Magnetic Damping System / From: JH768056	-	1	Enquire
3C285A	LR116119	MACPHERSON STRUT	LR116119 MACPHERSON STRUT Front Disc And Caliper Size 17, Less AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: JH768056	-	1	Enquire
3C285A	LR116120	MACPHERSON STRUT	LR116120 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 17, Less AMS Conversion, Less Adaptive Damping / LH, Less Magnetic Damping System / From: JH768056	-	1	Enquire
3C285B	LR060818	MACPHERSON STRUT	LR060818 MACPHERSON STRUT Magnetic Damping System / LH / To: HH999999	-	1	Enquire
3C285B	LR060817	MACPHERSON STRUT	LR060817 MACPHERSON STRUT Magnetic Damping System / RH / To: HH999999	-	1	Enquire
3C285B	LR060817	MACPHERSON STRUT	LR060817 MACPHERSON STRUT Disc Brake Size Frt 17/RR 17, Magnetic Damping System / RH / From: JH000001	-	1	Enquire
3C285B	LR090481	MACPHERSON STRUT	LR090481 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 17, Magnetic Damping System / LH / From: JH000001	-	1	Enquire
3C285B	LR060818	MACPHERSON STRUT	LR060818 MACPHERSON STRUT Disc Brake Size Frt 17/RR 17, Magnetic Damping System / LH / From: JH000001	-	1	Enquire
3C285B	LR090482	MACPHERSON STRUT	LR090482 MACPHERSON STRUT Disc And Caliper Size-Frt 18/RR 16, Magnetic Damping System / RH / From: JH000001	-	1	Enquire
3K155	LR024477	MOUNTING - SHOCK ABSORBER	LR024477 MOUNTING - SHOCK ABSORBER	-	2	Enquire
14A411	LR064632	WIRING - MAGNETIC DAMPER	LR064632 WIRING - MAGNETIC DAMPER Magnetic Damping System	-	2	Enquire
18A047	LR073344	BOOT - SHOCK ABSORBER	LR073344 BOOT - SHOCK ABSORBER	-	2	Enquire
18A085A	LR001144	BUMPER - SHOCK ABSORBER	LR001144 BUMPER - SHOCK ABSORBER 6 Speed Manual Trans M66 - AWD, Less Adaptive Damping / Less Magnetic Damping System	-	2	Enquire
18A085A	LR075377	BUMPER - SHOCK ABSORBER	LR075377 BUMPER - SHOCK ABSORBER 6 Speed Manual Trans-JLR M66 2WD, Less Adaptive Damping / Less Magnetic Damping System / From: GH000001	-	2	Enquire
18A085A	LR075377	BUMPER - SHOCK ABSORBER	LR075377 BUMPER - SHOCK ABSORBER 6 Speed Manual Trans BG6, Front Wheel Drive, Less Adaptive Damping / Less Magnetic Damping System / From: KH000001	-	2	Enquire
18A085A	LR001144	BUMPER - SHOCK ABSORBER	LR001144 BUMPER - SHOCK ABSORBER 6 Speed Manual Trans BG6, All Wheel Drive, Less Adaptive Damping / Less Magnetic Damping System / From: KH000001	-	2	Enquire
18A085B	LR024476	BUMPER - SHOCK ABSORBER	LR024476 BUMPER - SHOCK ABSORBER Magnetic Damping System	-	2	Enquire
5310	LR060796	SPRING - SUSPENSION - FRONT	LR060796 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / Purple/Orange/Yellow / To: HH999999	-	2	Enquire
5310	LR060797	SPRING - SUSPENSION - FRONT	LR060797 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / Purple/Purple/Yellow / To: HH999999	-	2	Enquire
5310	LR096076	SPRING - SUSPENSION - FRONT	LR096076 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Orange/Red/Yellow / To: HH999999	-	2	Enquire
5310	LR096079	SPRING - SUSPENSION - FRONT	LR096079 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Orange / Yellow / To: HH999999	-	2	Enquire
5310	LR060800	SPRING - SUSPENSION - FRONT	LR060800 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Orange/Blue/Yellow / To: HH999999	-	2	Enquire
5310	LR060801	SPRING - SUSPENSION - FRONT	LR060801 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Orange/Green/Yellow / To: HH999999	-	2	Enquire
5310	LR060802	SPRING - SUSPENSION - FRONT	LR060802 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Orange/White/Yellow / To: HH999999	-	2	Enquire
5310	LR060803	SPRING - SUSPENSION - FRONT	LR060803 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Orange/Purple/Yellow / To: HH999999	-	2	Enquire
5310	LR094378	SPRING - SUSPENSION - FRONT	LR094378 SPRING - SUSPENSION - FRONT Front Spring Load Class-J / From: JH000001	-	2	Enquire
5310	LR092333	SPRING - SUSPENSION - FRONT	LR092333 SPRING - SUSPENSION - FRONT Front Spring Load Class-I / Pink / From: JH000001	-	2	Enquire
5310	LR106282	SPRING - SUSPENSION - FRONT	LR106282 SPRING - SUSPENSION - FRONT Front Spring Load Class-A / Orange / Orange / Yellow / From: JH000001	-	2	Enquire
5310	LR096078	SPRING - SUSPENSION - FRONT	LR096078 SPRING - SUSPENSION - FRONT Front Spring Load Class-B / Grey / Green / Yellow / From: JH000001	-	2	Enquire
5310	LR096076	SPRING - SUSPENSION - FRONT	LR096076 SPRING - SUSPENSION - FRONT Front Spring Load Class-C / Grey / White / Yellow / From: JH000001	-	2	Enquire
5310	LR096079	SPRING - SUSPENSION - FRONT	LR096079 SPRING - SUSPENSION - FRONT Front Spring Load Class-D / Grey / Pink / Yellow / From: JH000001	-	2	Enquire
5310	LR106283	SPRING - SUSPENSION - FRONT	LR106283 SPRING - SUSPENSION - FRONT Front Spring Load Class-E / Grey / Red / Yellow / From: JH000001	-	2	Enquire
5310	LR106284	SPRING - SUSPENSION - FRONT	LR106284 SPRING - SUSPENSION - FRONT Front Spring Load Class-F / Grey / Yellow / Yellow / From: JH000001	-	2	Enquire
5310	LR096077	SPRING - SUSPENSION - FRONT	LR096077 SPRING - SUSPENSION - FRONT Front Spring Load Class-G / Grey / Brown / Yellow / From: JH000001	-	2	Enquire
5310	LR106285	SPRING - SUSPENSION - FRONT	LR106285 SPRING - SUSPENSION - FRONT Front Spring Load Class-H / Grey / Blue / Yellow / From: JH000001	-	2	Enquire
5349A	LR009664	PAD - SUSPENSION SPRING	LR009664 PAD - SUSPENSION SPRING Upper	-	2	Enquire
5349B	LR028618	PAD - ANTI-SQUEAK	LR028618 PAD - ANTI-SQUEAK Lower	-	2	Enquire
18198	LR121039	INSULATOR - SHOCK ABSORBER	LR121039 INSULATOR - SHOCK ABSORBER	-	2	Enquire
