Front Knuckle And Hub (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Front Knuckle And Hub (Changsu (China)) ((V) FROMFG000001, (V) TOKG446856)

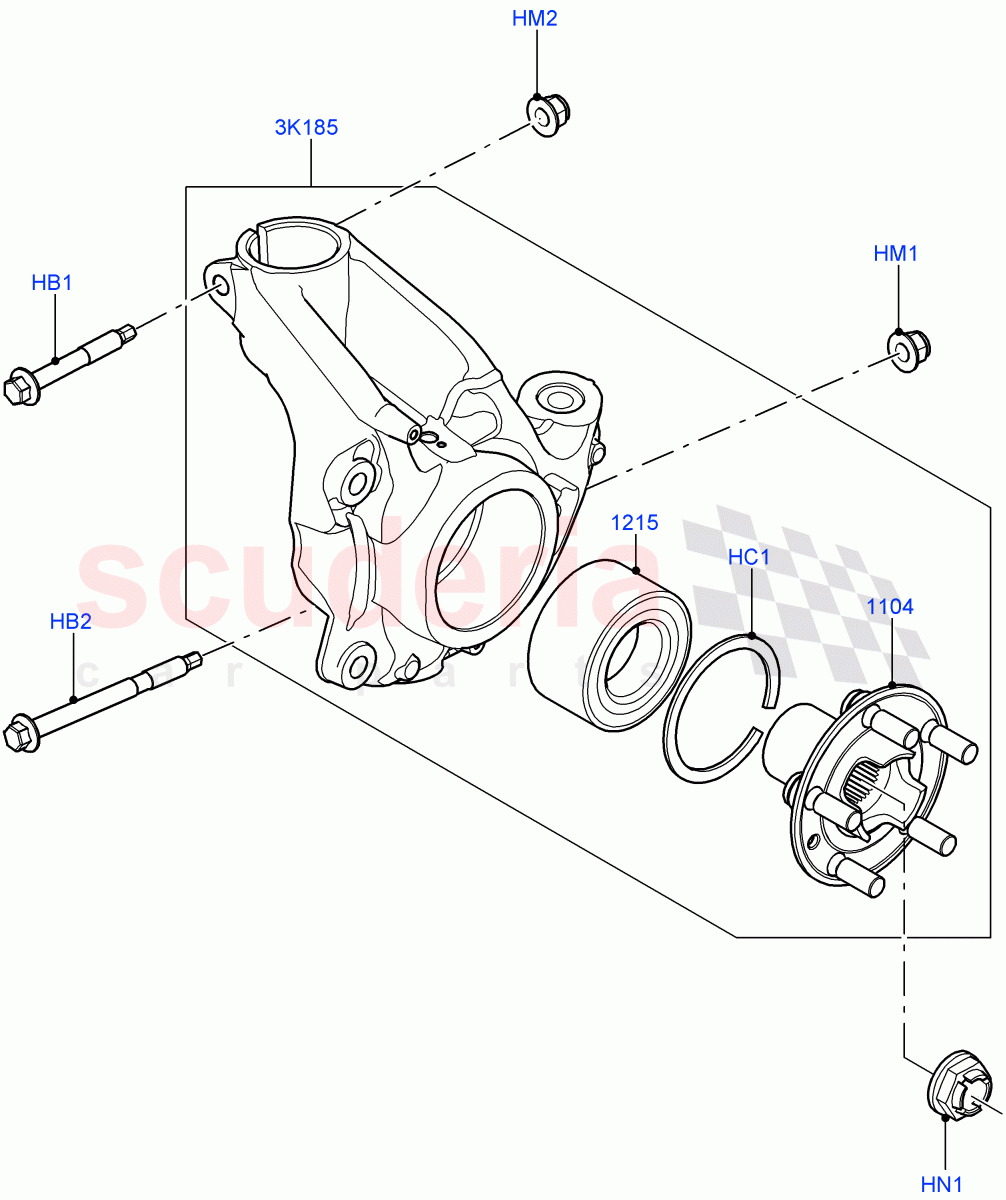

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR024507	BOLT	Enquire	To Order
	LR096556	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024747	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RUE000010	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077860	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024151	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060751	HUB - WHEEL	Enquire	To Order
	LR138237	HUB - WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078387	BEARING - WHEEL HUB	Enquire	To Order
	LR179001	BEARING - WHEEL HUB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077914	KNUCKLE - FRONT WHEEL	Enquire	To Order
	LR078178	KNUCKLE - FRONT WHEEL	Enquire	To Order
	LR109400	KNUCKLE - FRONT WHEEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR024507	BOLT	LR024507 BOLT Hex Head, M12 x 80MM, Upper / From: FG000001 / To: HG379387	-	2	Enquire
HB1	LR096556	BOLT	LR096556 BOLT Hexagonal Head, M12 x 90MM / From: HG379388	-	2	Enquire
HB2	LR024747	BOLT	LR024747 BOLT Hexagonal Head, Lower, M12 X 112 / From: FG000001	-	2	Enquire
HC1	RUE000010	CIRCLIP	RUE000010 CIRCLIP	-	2	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12 / From: FG000001	-	2	Enquire
HM2	LR077860	NUT - HEX.	LR077860 NUT - HEX. HEX Flange, Hex Nut Type, M12, With Free Spinning Washer / From: FG000001	-	2	Enquire
HN1	LR024151	NUT AND WASHER - HEX.	LR024151 NUT AND WASHER - HEX. M24X2.0 / From: FG000001	-	2	Enquire
3K185	LR077914	KNUCKLE - FRONT WHEEL	LR077914 KNUCKLE - FRONT WHEEL RH / From: FG000001 / To: HG379387	-	1	Enquire
3K185	LR078178	KNUCKLE - FRONT WHEEL	LR078178 KNUCKLE - FRONT WHEEL LH / From: FG000001 / To: HG379387	-	1	Enquire
3K185	LR109400	KNUCKLE - FRONT WHEEL	LR109400 KNUCKLE - FRONT WHEEL LH / From: HG379388	-	1	Enquire
3K185	LR109399	KNUCKLE - FRONT WHEEL	LR109399 KNUCKLE - FRONT WHEEL RH / From: HG379388	-	1	Enquire
1104	LR060751	HUB - WHEEL	LR060751 HUB - WHEEL RH/LH / From: FG000001 / To: KG445370	-	2	Enquire
1104	LR138237	HUB - WHEEL	LR138237 HUB - WHEEL RH/LH / From: KG445371	-	2	Enquire
1215	LR078387	BEARING - WHEEL HUB	LR078387 BEARING - WHEEL HUB RH/LH / From: GG319967	-	2	Enquire
1215	LR179001	BEARING - WHEEL HUB	LR179001 BEARING - WHEEL HUB RH/LH / From: FG000001 / To: GG319966	-	2	Enquire
