Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] - Rear Axle (Halewood (UK), Efficient Driveline) ((V) TOKH999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FB108106 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR004136 BOLT - HEX.HEAD Enquire To Order
LR004136 BOLT - HEX.HEAD Enquire To Order
LR004136 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR037085 CLIP - DOUBLE Enquire To Order
Photo Part No Description Price (each) Stock
LR001949 WASHER - DRAIN PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR073539 DIFFERENTIAL AND CARRIER Enquire To Order
LR072726 DIFFERENTIAL AND CARRIER Enquire To Order
LR095737 DIFFERENTIAL AND CARRIER Enquire To Order
Photo Part No Description Price (each) Stock
LR095326 PIPE - CONNECTING Enquire To Order
LR051312 PIPE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR073538 COUPLING - DRIVE SHAFT Enquire To Order
LR101750 DRIVE SHAFT COUPLING Enquire To Order
LR124976 COUPLING - DRIVE SHAFT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR051320 COVER - OIL RESERVOIR Enquire To Order
Photo Part No Description Price (each) Stock
LR076676 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR003148 RING - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR060388 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR101752 FLANGE - COUPLING SHAFT Enquire To Order
LR101752 FLANGE - COUPLING SHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR051346 FLANGE - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR051347 KIT - OIL SEALS Enquire To Order
Photo Part No Description Price (each) Stock
LR003144 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR073537 CONTROL UNIT - HALDEX Enquire To Order
LR139418 CONTROL UNIT - HALDEX Enquire To Order
Photo Part No Description Price (each) Stock
LR051321 PUMP - HALDEX Enquire To Order
LR124825 PUMP - HALDEX Enquire To Order
Photo Part No Description Price (each) Stock
LR051311 BRACKET - DIFFERENTIAL Enquire To Order
Photo Part No Description Price (each) Stock
LR061614 PLUG - DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR002877 PLUG - FILLER Enquire To Order
LR076677 PLUG - FILLER Enquire To Order
View All

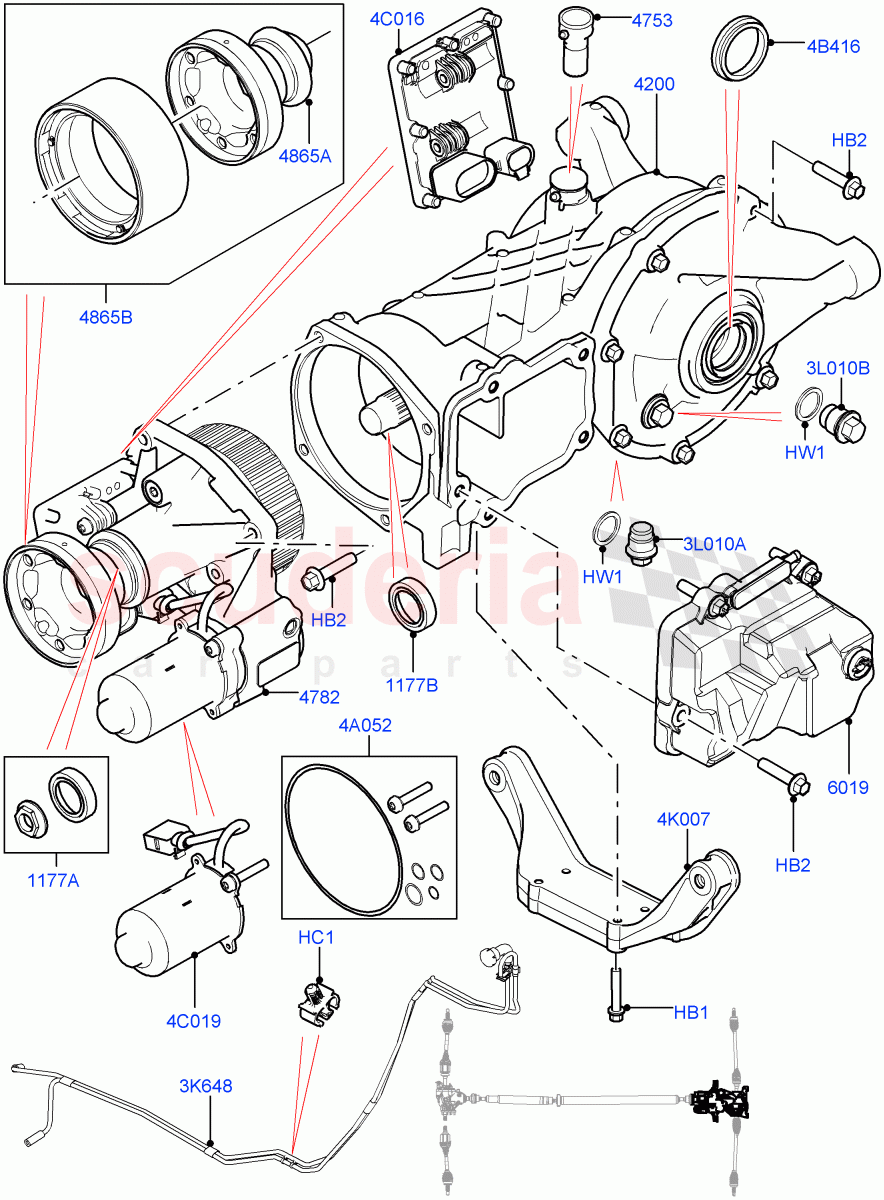

Rear Axle (Halewood (UK), Efficient Driveline) ((V) TOKH999999) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FB108106
BOLT
Hexagonal Head, M8 x 50MM 		- 4 Enquire
HB2 LR004136
BOLT - HEX.HEAD
M8 X 35MM, Oil Pan 		- 5 Enquire
HB2 LR004136
BOLT - HEX.HEAD
Differential Cover, M8 X 35MM 		- 7 Enquire
HB2 LR004136
BOLT - HEX.HEAD
For Haldex, M8 X 35MM 		- 4 Enquire
HC1 LR037085
CLIP - DOUBLE
6MM, Double 		- 1 Enquire
HW1 LR001949
WASHER - DRAIN PLUG
18 X 24 X 1.5, Sealing Washer 		- 2 Enquire
3K648 LR060388
TUBE - BREATHER
6 Speed Manual Trans M66 - AWD 		- 1 Enquire
3L010A LR061614
PLUG - DRAIN
Drain Plug 		- 1 Enquire
3L010B LR002877
PLUG - FILLER
Filler Plug / To: FH533161 		- 1 Enquire
3L010B LR076677
PLUG - FILLER
Filler Plug / From: FH533162 		- 1 Enquire
4A052 LR051347
KIT - OIL SEALS
Includes Seals For Haldex Coupling, Pump And Overflow Valve 		- 1 Enquire
4B416 LR003144
SEAL
Driveshaft 		- 2 Enquire
4C016 LR073537
CONTROL UNIT - HALDEX
For Haldex, Kit - Includes Fixings, New Part-Please Check For Reman Version 		- 1 Enquire
4C016 LR139418
CONTROL UNIT - HALDEX
For Haldex, Kit - Includes Fixings, Remanufactured Part 		- 1 Enquire
4C019 LR051321
PUMP - HALDEX
Kit - Includes Fixings, New Part-Please Check For Reman Version 		- 1 Enquire
4C019 LR124825
PUMP - HALDEX
Kit - Includes Fixings, Remanufactured Part 		- 1 Enquire
4K007 LR051311
BRACKET - DIFFERENTIAL 		- 1 Enquire
1177A LR076676
RING - SEALING
For Haldex, Includes Seal, Nut, Please Refer To TOPIX Bulletin LTB00825v3 Before Ordering 		- 1 Enquire
1177B LR003148
RING - SEALING
For Differential Flange 		- 1 Enquire
4200 LR073539
DIFFERENTIAL AND CARRIER
To: FH999999 		- 1 Enquire
4200 LR072726
DIFFERENTIAL AND CARRIER
New Part-Please Check For Reman Version / From: GH000001 		- 1 Enquire
4200 LR095737
DIFFERENTIAL AND CARRIER
Remanufactured Part / From: GH000001 		- 1 Enquire
4753 LR095326
PIPE - CONNECTING
Breather Pipe, Connection / From: HH655128 		- 1 Enquire
4753 LR051312
PIPE - CONNECTING
Breather Pipe, Connection / To: HH655127 		- 1 Enquire
4782 LR073538
COUPLING - DRIVE SHAFT
Haldex Coupling, New Part-Please Check For Reman Version, Please Refer To TOPIX Bulletin LTB00825v3 Before Ordering / To: HH999999 		- 1 Enquire
4782 LR101750
DRIVE SHAFT COUPLING
Haldex Coupling, New Part-Please Check For Reman Version / From: JH000001 		- 1 Enquire
4782 LR124976
COUPLING - DRIVE SHAFT
Haldex Coupling, Remanufactured Part / From: JH000001 		- 1 Enquire
4782 LR124958
COUPLING - DRIVE SHAFT
Haldex Coupling, Remanufactured Part / To: HH999999 		- 1 Enquire
4865A LR101752
FLANGE - COUPLING SHAFT
To: HH999999 		- 1 Enquire
4865A LR101752
FLANGE - COUPLING SHAFT
From: JH000001 		- 1 Enquire
4865B LR051346
FLANGE - DIFFERENTIAL 		- 1 Enquire
6019 LR051320
COVER - OIL RESERVOIR
Oil Pan 		- 1 Enquire
