Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
RYP500200 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR084373 ENGINE BAY HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
LR075883 WIRING - WIPER MOTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR041240 WIRE - ENGINE EARTH Enquire To Order
Photo Part No Description Price (each) Stock
LR067380 COVER - FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR098323 BRACKET - WIRING Enquire To Order
View All

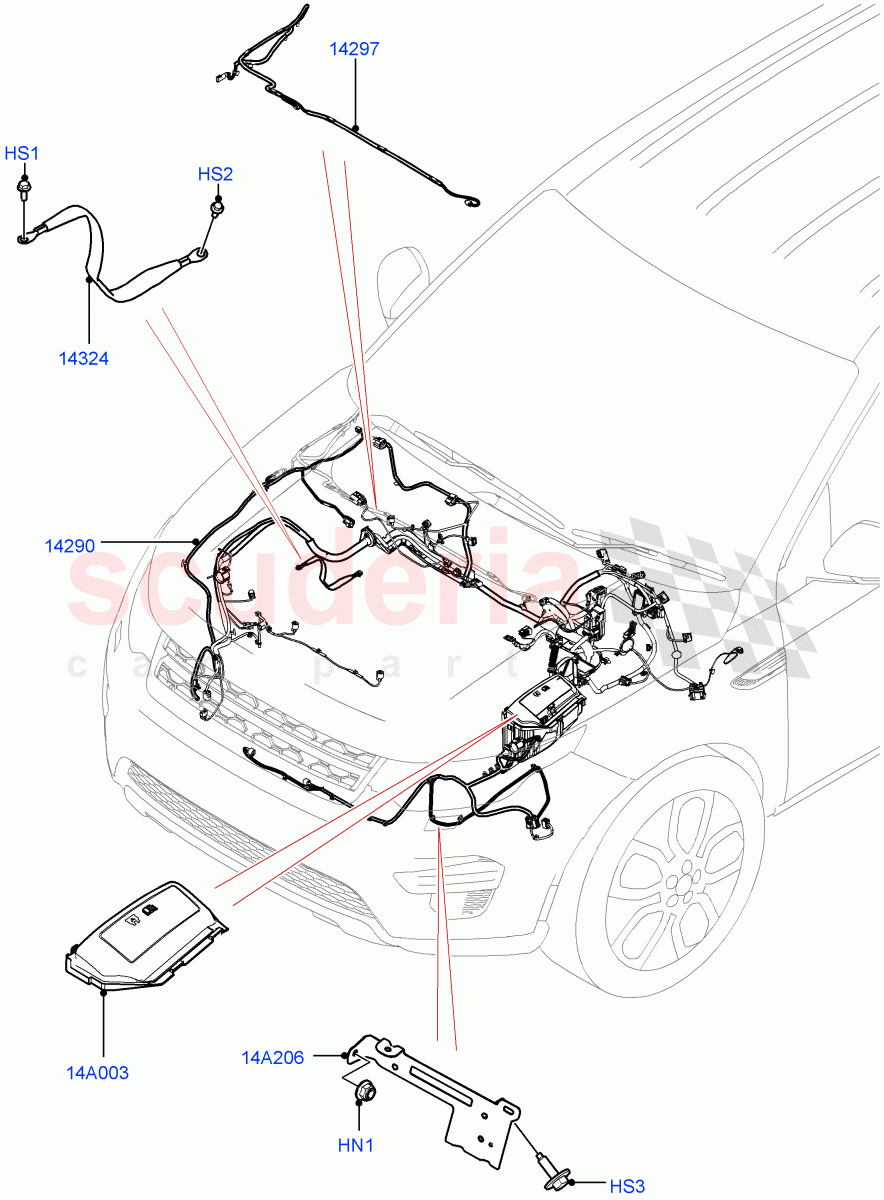

Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: HG379387 		- 1 Enquire
HS1 RYP500200
SCREW
2.0L 16V TIVCT T/C 240PS Petrol / Hexagonal Head, M6 X 20MM / From: FG000001 		- 1 Enquire
HS2 LR023697
SCREW
2.0L 16V TIVCT T/C 240PS Petrol / M6 X 16MM / From: FG000001 		- 1 Enquire
HS3 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: HG379387 		- 1 Enquire
14A003 LR067380
COVER - FUSE BOX
From: FG000001 		- 1 Enquire
14A206 LR098323
BRACKET - WIRING
From: HG379387 		- 1 Enquire
14290 LR084373
ENGINE BAY HARNESS
Requires VIN To Order / KSK harness / From: FG000001 		- 1 Enquire
14297 LR075883
WIRING - WIPER MOTOR
With Heated Washer Jet / From: FG000001 		- 1 Enquire
14324 LR041240
WIRE - ENGINE EARTH
2.0L 16V TIVCT T/C 240PS Petrol / Grounding Cable From Engine Support To Chassis Member / From: FG000001 		- 1 Enquire
