Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (Traction Battery) (Changsu (China), Electric Engine Battery-PHEV) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR140065 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR135835 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR132261 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137307 FUSE - MASTER SERVICE DISCONNECT Enquire To Order
Photo Part No Description Price (each) Stock
LR135349 WIRING - TRACTION BATTERY Enquire To Order
LR156728 WIRING - TRACTION BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR135607 TUBE - BREATHER Enquire To Order
Photo Part No Description Price (each) Stock
LR137378 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR137300 COVER - FUSE BOX Enquire To Order
Photo Part No Description Price (each) Stock
LR135611 HYBRID BATTERY MODULE Enquire To Order
LR155459 HYBRID BATTERY MODULE Enquire To Order
View All

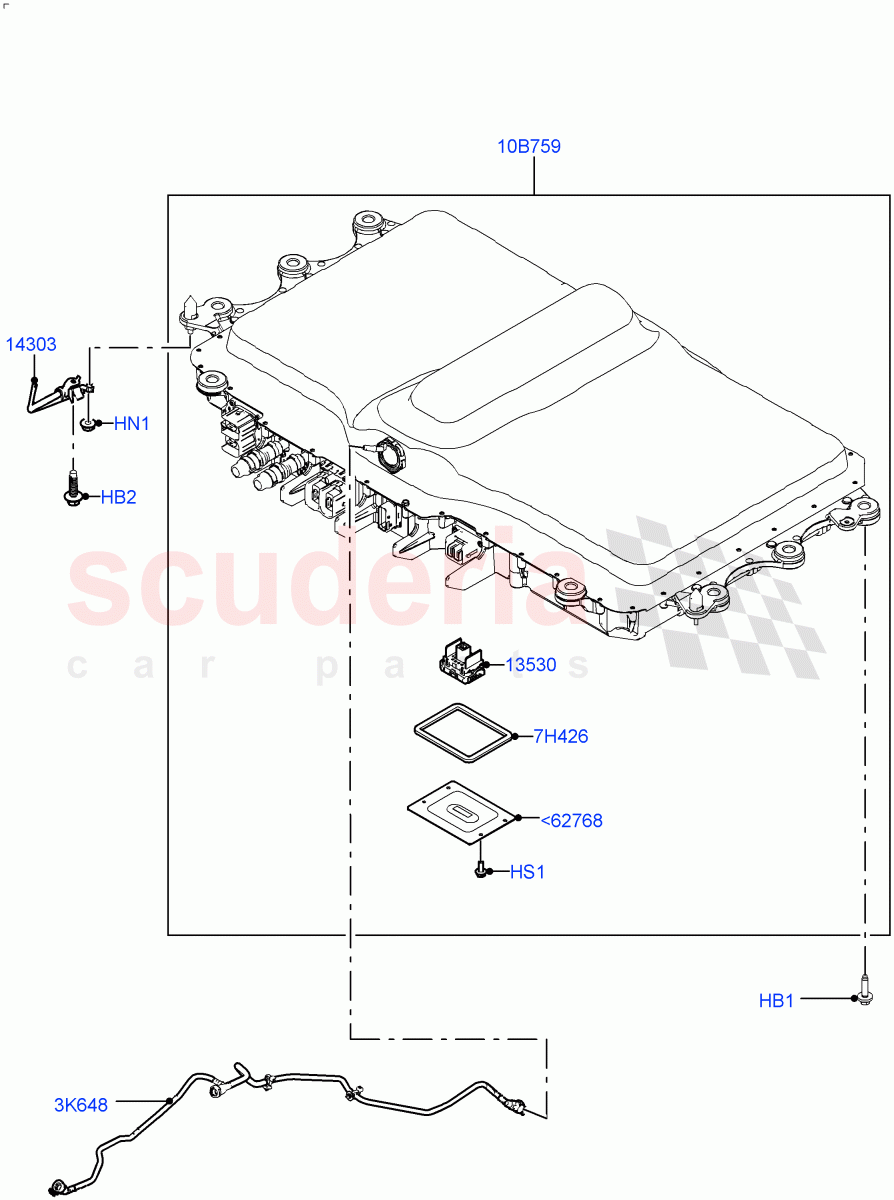

Hybrid Electrical Modules (Traction Battery) (Changsu (China), Electric Engine Battery-PHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<62768 LR137300
COVER - FUSE BOX
Master Service Disconnect / From: KG446857 		- 1 Enquire
HB1 LR140065
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 40MM / From: KG446857 		- 8 Enquire
HB2 LR135835
BOLT
Ground Link, M8x24, To Body / From: KG446857 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Ground Link, Hexagonal Head, M6, To Battery / From: KG446857 		- 1 Enquire
HS1 LR132261
SCREW
Cover, M8 X 1.25, Master Service Disconnect / From: KG446857 		- 4 Enquire
3K648 LR135607
TUBE - BREATHER
Front, Inverter / From: KG446857 		- 1 Enquire
7H426 LR137378
SEAL
Cover, Master Service Disconnect / From: KG446857 		- 1 Enquire
10B759 LR135611
HYBRID BATTERY MODULE
From: KG446857 / To: MG140568 		- 1 Enquire
10B759 LR155459
HYBRID BATTERY MODULE
From: MG140569 		- 1 Enquire
13530 LR137307
FUSE - MASTER SERVICE DISCONNECT
From: KG446857 		- 1 Enquire
14303 LR135349
WIRING - TRACTION BATTERY
Ground Wire / From: KG446857 / To: MG140568 		- 1 Enquire
14303 LR156728
WIRING - TRACTION BATTERY
Ground Wire / From: MG140569 		- 1 Enquire
