Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (High Voltage Battery Electrical Module) (Changsu (China), Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR137306 CABLE TIE Enquire To Order
Photo Part No Description Price (each) Stock
LR137202 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR137201 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR137204 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR137188 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137196 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137181 SCREW Enquire To Order
LR137181 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137189 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137197 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137205 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137194 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR137333 FUSE Enquire To Order
LR137331 FUSE Enquire To Order
Photo Part No Description Price (each) Stock
LR137334 PRE-CHARGED RESISTANCE Enquire To Order
Photo Part No Description Price (each) Stock
LR137277 BRACKET - MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR137330 MODULE - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
LR137335 HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR137337 BRACKET - SENSOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR137339 COVER - MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR137356 CONTACTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR137367 CONTACTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR137366 CONTACTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR137338 SENSOR - HALL EFFECT Enquire To Order
Photo Part No Description Price (each) Stock
LR137336 SENSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR137322 HARNESS - BATTERY ELECTRIC MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR137358 HARNESS - BATTERY ELECTRIC MODULE Enquire To Order
Photo Part No Description Price (each) Stock
LR137340 BUS - BAR Enquire To Order
Photo Part No Description Price (each) Stock
LR137341 BUS - BAR Enquire To Order
Photo Part No Description Price (each) Stock
LR137342 BUS - BAR Enquire To Order
Photo Part No Description Price (each) Stock
LR137343 BUS - BAR Enquire To Order
Photo Part No Description Price (each) Stock
LR137344 BUS - BAR Enquire To Order
View All

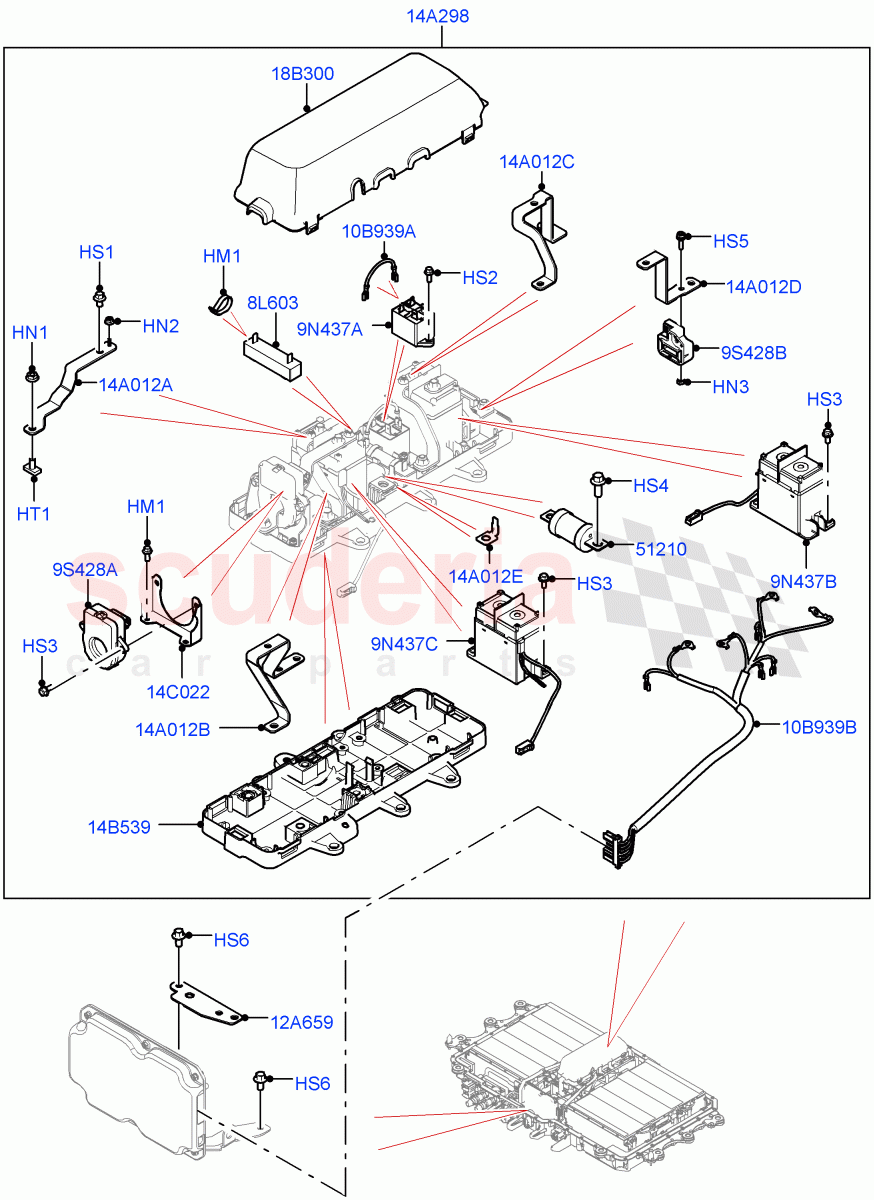

Hybrid Electrical Modules (High Voltage Battery Electrical Module) (Changsu (China), Electric Engine Battery-PHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HM1 LR137306
CABLE TIE
Cable Strap, Pre-Charge Resistor / From: KG446857 		- 2 Enquire
HN1 LR137202
NUT - FLANGED
Busbar To Housing, M6 / From: KG446857 		- 5 Enquire
HN2 LR137201
NUT - FLANGED
Harness To Busbar, M4 / From: KG446857 		- 4 Enquire
HN3 LR137204
NUT - FLANGED
Current Shunt Sensor, M4 / From: KG446857 		- 1 Enquire
HS1 LR137188
SCREW
Busbar To Contactor, M6 X 10MM / From: KG446857 		- 4 Enquire
HS2 LR137196
SCREW
M4 x 12mm, Pre-Charge Contactor / From: KG446857 		- 2 Enquire
HS3 LR137181
SCREW
M5 X 12MM, Sensor To Bracket / From: KG446857 		- 2 Enquire
HS3 LR137181
SCREW
Contactor, M5 X 12MM / From: KG446857 		- 4 Enquire
HS4 LR137189
SCREW
Fuses, M8 X 20MM / From: KG446857 		- 4 Enquire
HS5 LR137197
SCREW
Current Shunt Sensor, M4 x 16MM / From: KG446857 		- 1 Enquire
HS6 LR137205
SCREW
M6 x 12MM, Module Fixing / From: KG446857 		- 3 Enquire
HT1 LR137194
SCREW
Busbars, M6 x 12MM / From: KG446857 		- 5 Enquire
8L603 LR137334
PRE-CHARGED RESISTANCE
Pre-Charge / From: KG446857 		- 1 Enquire
9N437A LR137356
CONTACTOR
5 AMP, Pre-Charge / From: KG446857 		- 1 Enquire
9N437B LR137367
CONTACTOR
200 Amp, Negative / From: KG446857 		- 1 Enquire
9N437C LR137366
CONTACTOR
200 Amp, Positive / From: KG446857 		- 1 Enquire
9S428A LR137338
SENSOR - HALL EFFECT
Current Hall Effect / From: KG446857 		- 1 Enquire
9S428B LR137336
SENSOR
Current Shunt / From: KG446857 		- 1 Enquire
10B939A LR137322
HARNESS - BATTERY ELECTRIC MODULE
Contactor To Resistor / From: KG446857 		- 1 Enquire
10B939B LR137358
HARNESS - BATTERY ELECTRIC MODULE
High Voltage Sampling / From: KG446857 		- 1 Enquire
12A659 LR137277
BRACKET - MODULE
Control Module / From: KG446857 		- 1 Enquire
14A012A LR137340
BUS - BAR
Type 1 / From: KG446857 		- 1 Enquire
14A012B LR137341
BUS - BAR
Type 2 / From: KG446857 		- 1 Enquire
14A012C LR137342
BUS - BAR
Type 3 / From: KG446857 		- 1 Enquire
14A012D LR137343
BUS - BAR
Type 4 / From: KG446857 		- 1 Enquire
14A012E LR137344
BUS - BAR
Terminal - Spade Type, Type 5 / From: KG446857 		- 1 Enquire
14A298 LR137330
MODULE - BATTERY
From: KG446857 		- 1 Enquire
14B539 LR137335
HOUSING
Bottom / From: KG446857 		- 1 Enquire
14C022 LR137337
BRACKET - SENSOR MOUNTING
From: KG446857 		- 1 Enquire
18B300 LR137339
COVER - MODULE
Battery Electrical Module / From: KG446857 		- 1 Enquire
51210 LR137333
FUSE
175 AMP, Belt Integrated Starter Generator / From: KG446857 		- 1 Enquire
51210 LR137331
FUSE
125 Amp, DC/DC / From: KG446857 		- 1 Enquire
