Heater & Air Conditioning Controls (Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Heater & Air Conditioning Controls (Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR066843 HEATER CONTROL Enquire To Order
LR066847 HEATER CONTROL Enquire To Order
LR066848 HEATER CONTROL Enquire To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR060913 HEATER CONTROL Enquire To Order
View All

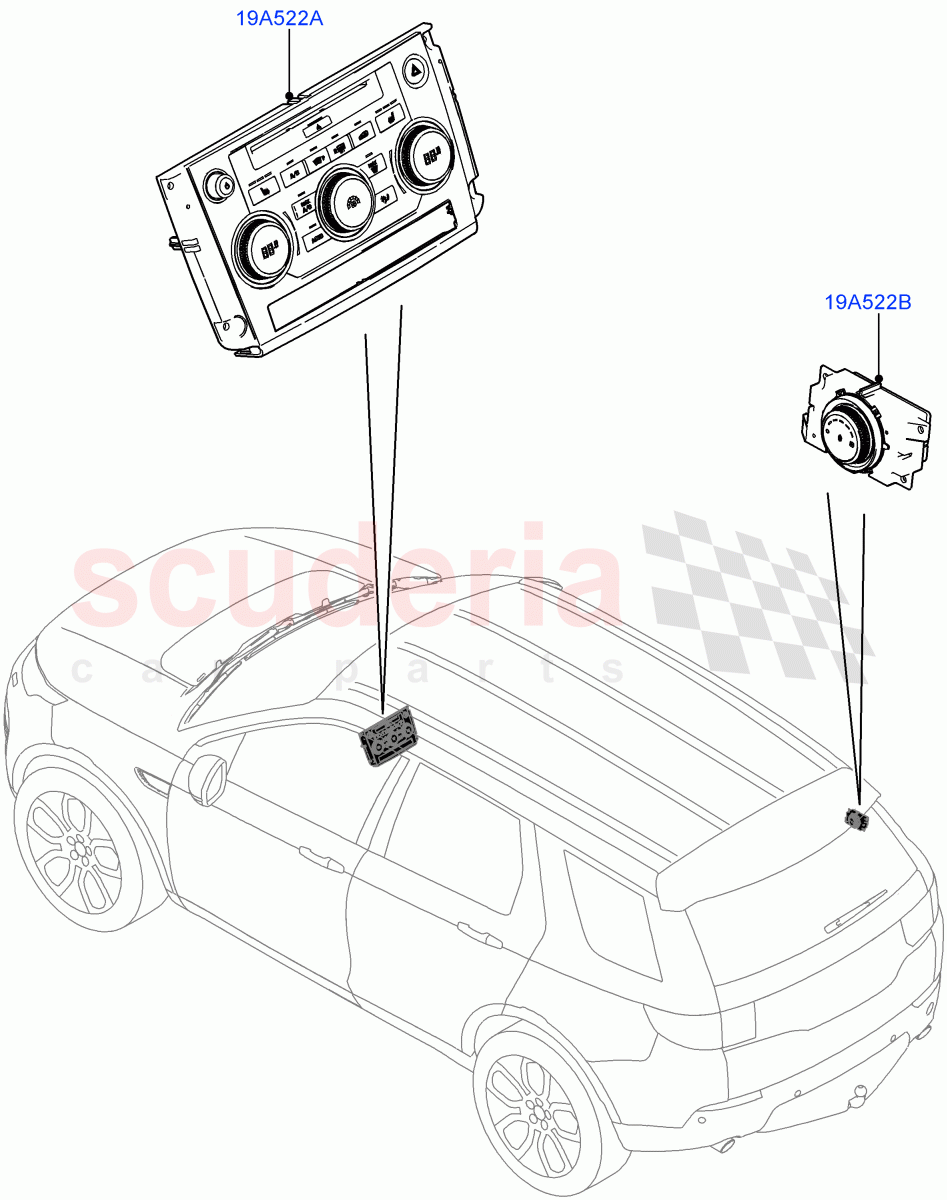

Heater & Air Conditioning Controls (Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
19A522A LR066843
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Mid Performance Sound System, With Manual Air Conditioning / From: GT000001 		- 1 Enquire
19A522A LR066847
HEATER CONTROL
Less Seat Temperature Control, Midline Sound System, With Heated Windscreen, With Manual Air Conditioning / From: GT000001 		- 1 Enquire
19A522A LR066848
HEATER CONTROL
Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control, With Manual Air Conditioning / From: GT000001 		- 1 Enquire
19A522A LR066852
HEATER CONTROL
Less Seat Temperature Control, Premium Audio 1280 W, With Heated Windscreen, With Manual Air Conditioning / From: GT000001 		- 1 Enquire
19A522A LR066853
HEATER CONTROL
ATC Air Conditioning, Less Seat Temperature Control, Mid Performance Sound System, With Heated Windscreen / From: GT000001 		- 1 Enquire
19A522A LR066856
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Midline Sound System / From: GT000001 / To: GT999999 		- 1 Enquire
19A522A LR066859
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Seat Temperature Control, With Heated Windscreen / From: GT000001 		- 1 Enquire
19A522A LR066862
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Premium Audio 1280 W / From: GT000001 / To: HT201571 		- 1 Enquire
19A522A LR083843
HEATER CONTROL
ATC Air Conditioning, Less Heated Windscreen, Less Seat Temperature Control, Standard Audio (Base) / From: HT000001 / To: HT201570 		- 1 Enquire
19A522A LR083852
HEATER CONTROL
ATC Air Conditioning, Hi Line Audio System - 600 W, Less Heated Windscreen, Less Seat Temperature Control / From: HT201572 		- 1 Enquire
19A522A LR107475
HEATER CONTROL
Less Heated Windscreen, Less Seat Temperature Control, Mid Performance Sound System, With ATC Air Con & Row 2 Vents / From: HT201571 		- 1 Enquire
19A522B LR060913
HEATER CONTROL
Climate Control - Chiller Unit, With 7 Seat Configuration / From: GT000001 		- 1 Enquire
