Hybrid Electrical Modules (Traction Battery Modules) (Changsu (China), Electric Engine Battery-PHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel]

View All

Land Rover Discovery Sport (2015+) [2.0 Turbo Diesel] - Hybrid Electrical Modules (Traction Battery Modules) (Changsu (China), Electric Engine...

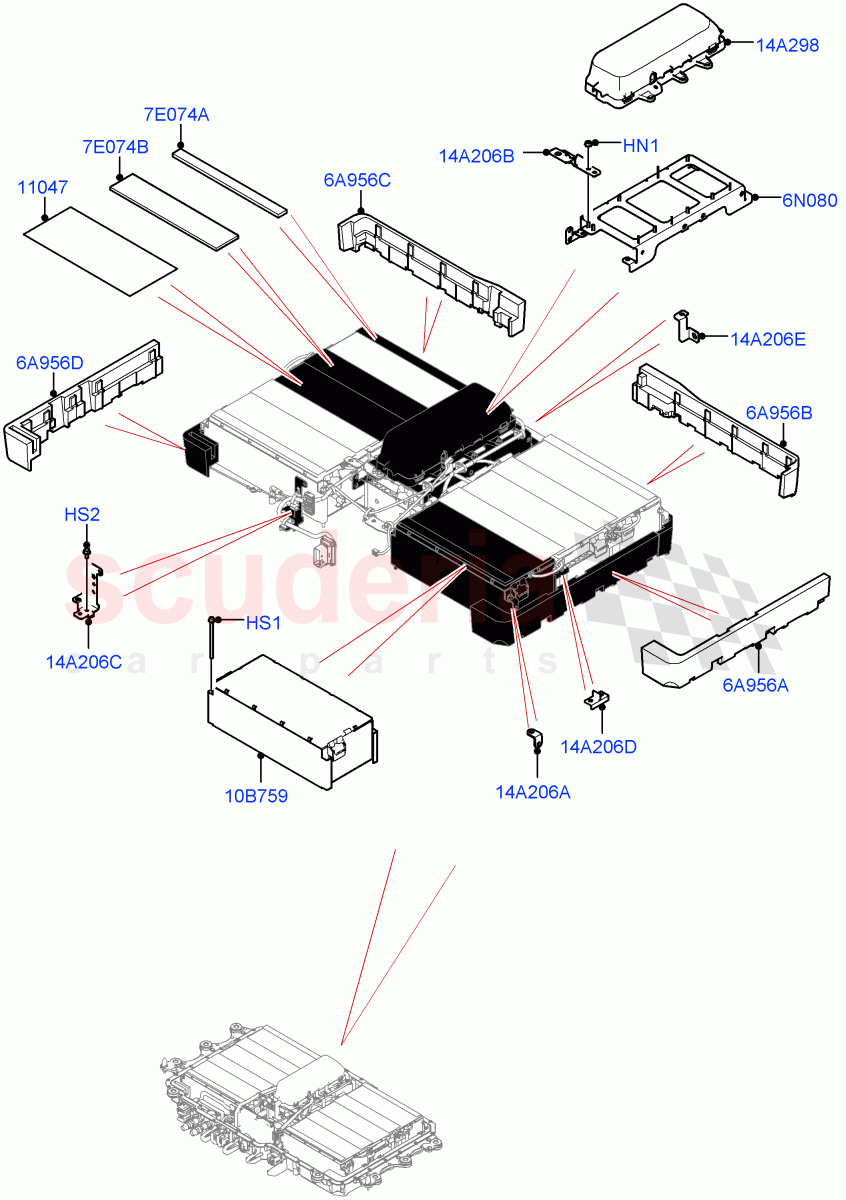

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR137186	NUT - FLANGED	Enquire	To Order
	LR137186	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137187	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137181	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137368	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137275	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137272	MODULE - EV BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137330	MODULE - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137349	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137347	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137346	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137348	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137345	PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137332	PAD - COMPRESSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137273	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137274	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137278	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137279	BRACKET - MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137276	BRACKET - MODULE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR137186	NUT - FLANGED	LR137186 NUT - FLANGED Bracket Fixing, M5, Top / From: KG446857	-	2	Enquire
HN1	LR137186	NUT - FLANGED	LR137186 NUT - FLANGED Battery Electrical Module, M5 / From: KG446857	-	6	Enquire
HS1	LR137187	SCREW	LR137187 SCREW Battery Module, M6 x 95MM / From: KG446857	-	28	Enquire
HS2	LR137181	SCREW	LR137181 SCREW Bracket Fixing, M5 X 12MM / From: KG446857	-	1	Enquire
6A956A	LR137349	FOAM PAD - ENERGY ABSORBING	LR137349 FOAM PAD - ENERGY ABSORBING LH Side / From: KG446857	-	1	Enquire
6A956B	LR137347	FOAM PAD - ENERGY ABSORBING	LR137347 FOAM PAD - ENERGY ABSORBING LH Rear / From: KG446857	-	1	Enquire
6A956C	LR137346	FOAM PAD - ENERGY ABSORBING	LR137346 FOAM PAD - ENERGY ABSORBING RH Rear / From: KG446857	-	1	Enquire
6A956D	LR137348	FOAM PAD - ENERGY ABSORBING	LR137348 FOAM PAD - ENERGY ABSORBING RH Side / From: KG446857	-	1	Enquire
6N080	LR137275	BRACKET - MODULE	LR137275 BRACKET - MODULE Battery Electrical Module / From: KG446857	-	1	Enquire
7E074A	LR137345	PAD	LR137345 PAD Foam, Narrow, Top / From: KG446857	-	4	Enquire
7E074B	LR137332	PAD - COMPRESSION	LR137332 PAD - COMPRESSION Foam, Top, Wide / From: KG446857	-	4	Enquire
10B759	LR137272	MODULE - EV BATTERY	LR137272 MODULE - EV BATTERY Single Module / From: KG446857	-	7	Enquire
14A206A	LR137273	BRACKET - MODULE	LR137273 BRACKET - MODULE From: KG446857	-	6	Enquire
14A206B	LR137274	BRACKET - MODULE	LR137274 BRACKET - MODULE Busbar Support, Top / From: KG446857	-	1	Enquire
14A206C	LR137278	BRACKET - MODULE	LR137278 BRACKET - MODULE Busbar, Support, Wiring / From: KG446857	-	1	Enquire
14A206D	LR137279	BRACKET - MODULE	LR137279 BRACKET - MODULE Between Modules / From: KG446857	-	8	Enquire
14A206E	LR137276	BRACKET - MODULE	LR137276 BRACKET - MODULE Busbar Support, Rear / From: KG446857	-	1	Enquire
14A298	LR137330	MODULE - BATTERY	LR137330 MODULE - BATTERY From: KG446857	-	1	Enquire
11047	LR137368	PAD	LR137368 PAD Mica Plate / From: KG446857	-	7	Enquire
