Rear Seat Frame (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase)...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Seat Frame (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HTD500210 FRAME - SEAT $993.26 To Order
HTD500340 FRAME AND SPRING - RR SEAT CUSHION $1,279.41 To Order
HTD500350 FRAME AND SPRING - RR SEAT CUSHION $826.35 To Order
Photo Part No Description Price (each) Stock
LR077802 STRIKER - LATCH $238.34 To Order
LR077803 STRIKER - LATCH $238.34 To Order
LR077802 STRIKER - LATCH $238.34 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HJQ500250PUY SLEEVE - HEADREST GUIDE $11.20 To Order
Photo Part No Description Price (each) Stock
HJQ500240PUY SLEEVE - HEADREST GUIDE $11.20 To Order
Photo Part No Description Price (each) Stock
LR008261 PANEL - TRIM $176.36 To Order
Photo Part No Description Price (each) Stock
HMR500040PUY PANEL - TRIM $121.07 To Order
HMR500050PUY PANEL - TRIM $121.07 To Order
Photo Part No Description Price (each) Stock
RYG500690 SCREW $1.67 IN STOCK
Photo Part No Description Price (each) Stock
RYG500690 SCREW $1.67 IN STOCK
Photo Part No Description Price (each) Stock
RYG500690 SCREW $1.67 IN STOCK
Photo Part No Description Price (each) Stock
MUC8754 KNOB - SEAT TIPPING RELEASE $15.82 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500030 FASTENER $1.45 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500020 FASTENER $1.49 To Order
Photo Part No Description Price (each) Stock
HWJ500010 KNOB - LATCH $17.42 To Order
Photo Part No Description Price (each) Stock
HTQ500080 STRAP - FRONT SEAT CUSHION $31.98 To Order
Photo Part No Description Price (each) Stock
HWF500030 CABLE $28.49 To Order
Photo Part No Description Price (each) Stock
HXG500320 LEVER - SEAT ADJUSTER $13.26 To Order
HXG500330 LEVER - SEAT ADJUSTER $21.57 To Order
Photo Part No Description Price (each) Stock
LR062679 KIT - SEAT $3.51 To Order
View All

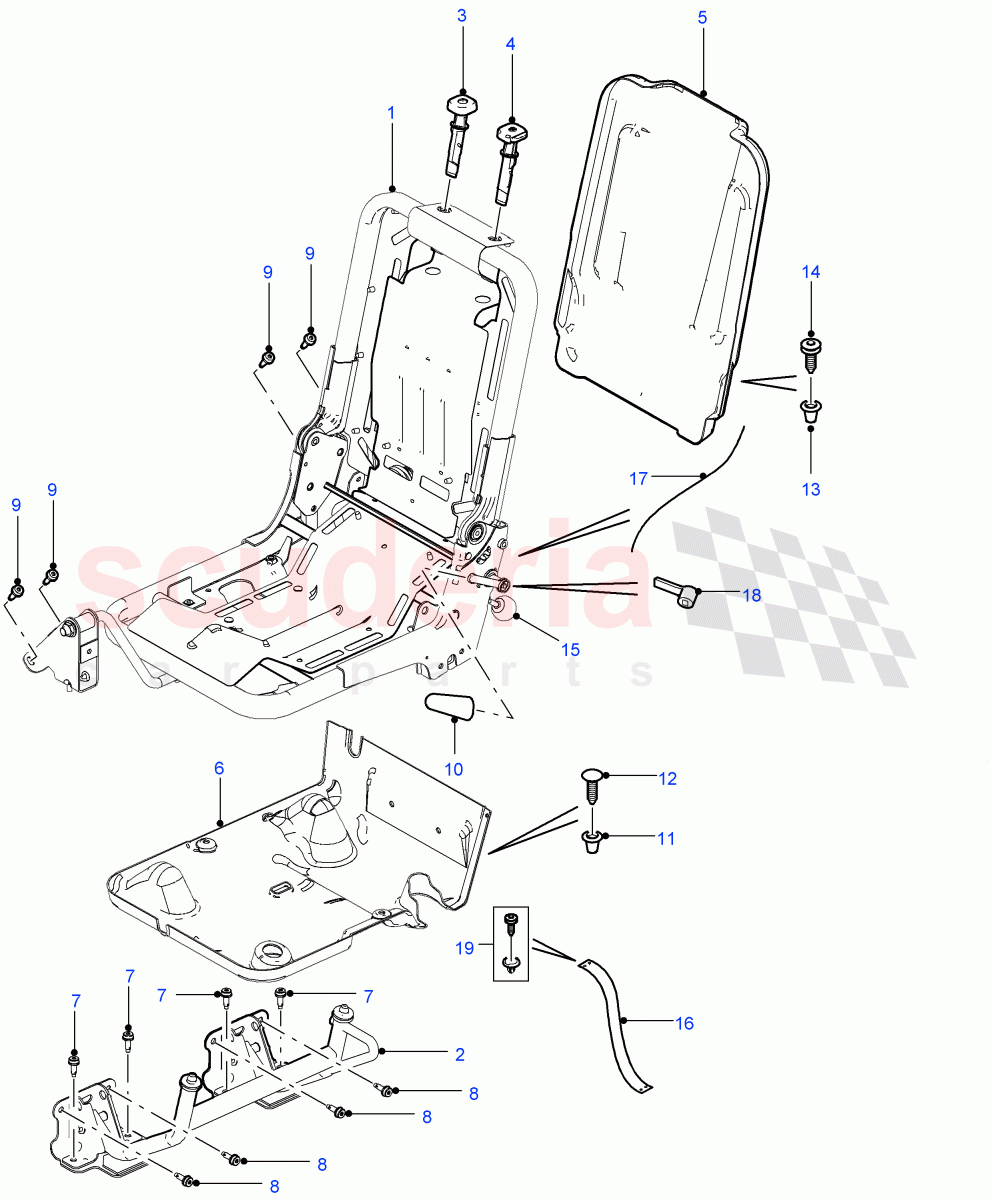

Rear Seat Frame (Station Wagon - 5 Door, 110" Wheelbase, Station Wagon - 3 Door, 90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 HTD500210
FRAME - SEAT
LH / To: 8A999999 		$993.26 1
1 HTD500340
FRAME AND SPRING - RR SEAT CUSHION
RH 		$1,279.41 1
1 HTD500350
FRAME AND SPRING - RR SEAT CUSHION
LH / From: 9A000001 		$826.35 1
2 LR077802
STRIKER - LATCH
RH / To: 7A742105 		$238.34 1
2 LR077803
STRIKER - LATCH
LH / To: 7A742105 		$238.34 1
2 LR077802
STRIKER - LATCH
RH / From: 7A742106 / To: GA483462 		$238.34 1
2 LR077802
STRIKER - LATCH
LH / From: 7A742106 / To: GA483462 		$238.34 1
2 LR077802
STRIKER - LATCH
RH / From: GA483463 		$238.34 1
2 LR077803
STRIKER - LATCH
LH / From: GA483463 		$238.34 1
3 HJQ500250PUY
SLEEVE - HEADREST GUIDE
Non - Locking 		$11.20 2
4 HJQ500240PUY
SLEEVE - HEADREST GUIDE
Locking Type 		$11.20 2
5 LR008261
PANEL - TRIM 		$176.36 2
6 HMR500040PUY
PANEL - TRIM
RH 		$121.07 1
6 HMR500050PUY
PANEL - TRIM
LH 		$121.07 1
7 RYG500690
SCREW
M8 x 18
IN STOCK 		$1.67 8
8 RYG500690
SCREW
M8 x 18
IN STOCK 		$1.67 8
9 RYG500690
SCREW
M8 x 18
IN STOCK 		$1.67 8
10 MUC8754
KNOB - SEAT TIPPING RELEASE 		$15.82 2
11 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 7
12 HYR500030
FASTENER
fir tree, Male 		$1.45 7
13 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 8
14 HYR500020
FASTENER
fir tree, Male 		$1.49 8
15 HWJ500010
KNOB - LATCH 		$17.42 1
16 HTQ500080
STRAP - FRONT SEAT CUSHION 		$31.98 1
17 HWF500030
CABLE 		$28.49 1
18 HXG500320
LEVER - SEAT ADJUSTER
RH 		$13.26 1
18 HXG500330
LEVER - SEAT ADJUSTER
LH 		$21.57 1
19 LR062679
KIT - SEAT
fitting kit 		$3.51 1
