Front Seat Base ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Front Seat Base ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HHD500020 FRAME - SEAT Enquire To Order
HHD500030 FRAME - SEAT Enquire To Order
LR045271 FRAME - SEAT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MXC5212 BRACKET - SEAT PIVOT Enquire To Order
Photo Part No Description Price (each) Stock
HYF500090 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FS108405 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
SH108251L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
NY108041 Nut - Hex. Enquire To Order
Photo Part No Description Price (each) Stock
CR120205 CIRCLIP Enquire To Order
Photo Part No Description Price (each) Stock
NLA Joint - CV Enquire To Order
Photo Part No Description Price (each) Stock
SH108151L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
ADU710120 BRACKET - CHILD SEAT MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
HYF500090 WASHER Enquire To Order
View All

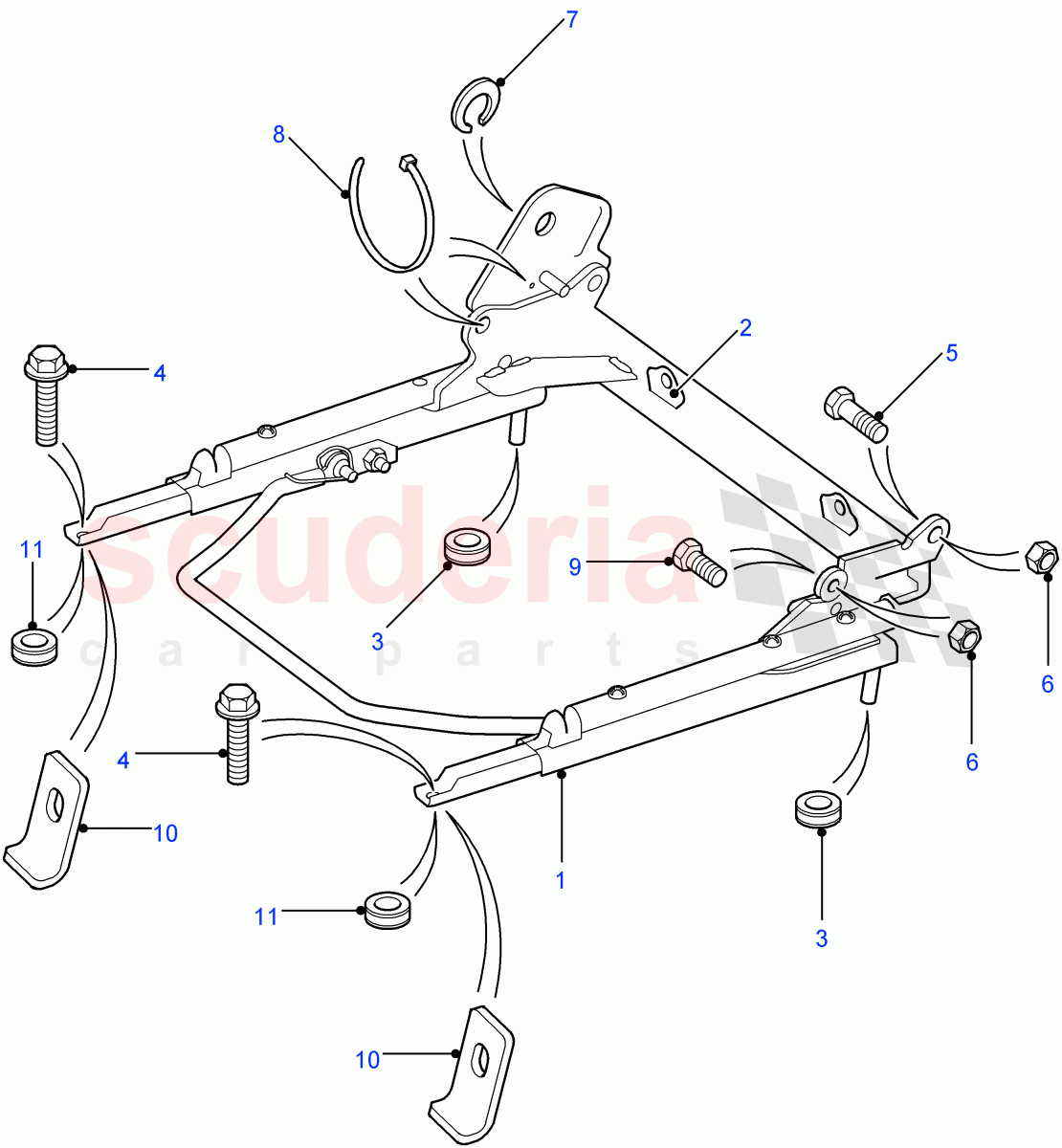

Front Seat Base ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 HHD500020
FRAME - SEAT
RH / To: CA999999 		- 1 Enquire
1 HHD500030
FRAME - SEAT
LH / To: CA999999 		- 1 Enquire
1 LR045271
FRAME - SEAT
RH / From: DA000001 		- 1 Enquire
1 LR045272
FRAME - SEAT
LH / From: DA000001 		- 1 Enquire
2 MXC5212
BRACKET - SEAT PIVOT 		- 2 Enquire
3 HYF500090
WASHER
M8 		- 2 Enquire
4 FS108405
SCREW
M8 x 40 		- 4 Enquire
5 SH108251L
SCREW
M8 x 25 		- 1 Enquire
6 NY108041
Nut - Hex.
M8 		- 2 Enquire
7 CR120205
CIRCLIP 		- 1 Enquire
8 NLA
Joint - CV 		- 2 Enquire
9 SH108151L
SCREW
M8 X 15MM 		- 1 Enquire
10 ADU710120
BRACKET - CHILD SEAT MOUNTING
From: 7A751228 		- 2 Enquire
11 HYF500090
WASHER
M8 / To: 7A751227 		- 2 Enquire
