Rear Seat Frame (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Station Wagon...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Seat Frame (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Station Wagon...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
HTD500220 FRAME - SEAT $1,168.53 To Order
HTD500230 FRAME - SEAT $1,064.19 To Order
HTD500280 FRAME - SEAT $1,011.82 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HTD500180 FRAME - SEAT $794.59 To Order
HTD500160 FRAME - SEAT $794.59 To Order
HTD500290 FRAME - SEAT $1,276.10 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
HJQ500250PUY SLEEVE - HEADREST GUIDE $11.20 To Order
Photo Part No Description Price (each) Stock
HJQ500240PUY SLEEVE - HEADREST GUIDE $11.20 To Order
Photo Part No Description Price (each) Stock
HMR500030PUY PANEL - TRIM $121.07 To Order
HMR500090PUY TRIM - SEAT BACK REAR $59.67 To Order
Photo Part No Description Price (each) Stock
HMR500070PUY PANEL - TRIM $121.07 To Order
Photo Part No Description Price (each) Stock
HMR500060PUY PANEL - TRIM $57.92 To Order
HMR500080PUY TRIM - SEAT BACK REAR $79.53 To Order
Photo Part No Description Price (each) Stock
HMR500020PUY PANEL - TRIM $121.07 To Order
Photo Part No Description Price (each) Stock
EWM500040 ESCUTCHEON $40.90 To Order
Photo Part No Description Price (each) Stock
MUC8754 KNOB - SEAT TIPPING RELEASE $15.82 To Order
Photo Part No Description Price (each) Stock
HXX100040 SUPPORT - REAR SEAT CUSHION $4.09 To Order
Photo Part No Description Price (each) Stock
VUB000130 STRAP - FRONT SEAT BACK $41.06 To Order
Photo Part No Description Price (each) Stock
EAS500190 STRAP - SECURING $7.08 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500020 FASTENER $1.49 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500030 FASTENER $1.45 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500020 FASTENER $1.49 To Order
Photo Part No Description Price (each) Stock
EYC101460 CLIP $1.09 IN STOCK
Photo Part No Description Price (each) Stock
HYR500030 FASTENER $1.45 To Order
Photo Part No Description Price (each) Stock
HWE500140 LATCH - REAR SEAT BACK $48.14 To Order
Photo Part No Description Price (each) Stock
HWE500160 BUMPER - SEAT STOP $289.12 To Order
Photo Part No Description Price (each) Stock
HWF500010 CABLE $37.33 To Order
HWF500020 CABLE $28.45 To Order
Photo Part No Description Price (each) Stock
HYD500090 PIN - SPECIAL $11.20 To Order
Photo Part No Description Price (each) Stock
HTM500180 PIVOT $74.76 To Order
HTM500190 PIVOT $78.49 IN STOCK
HTM500200 PIVOT $78.49 To Order
Photo Part No Description Price (each) Stock
AFU710160 BRACKET $15.52 To Order
AFU710170 BRACKET $15.52 To Order
AFU710180 BRACKET $15.52 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
ALU710130 BRACKET - SEAT MOUNTING $30.82 To Order
Photo Part No Description Price (each) Stock
LR009697 SCREW $1.39 To Order
Photo Part No Description Price (each) Stock
LR009698 SCREW $2.16 To Order
Photo Part No Description Price (each) Stock
LR009699 SCREW $1.05 To Order
Photo Part No Description Price (each) Stock
LR009700 SCREW $2.92 To Order
Photo Part No Description Price (each) Stock
LR011695 SPACER $1.70 To Order
Photo Part No Description Price (each) Stock
EYP500340 SCREW $3.31 To Order
View All

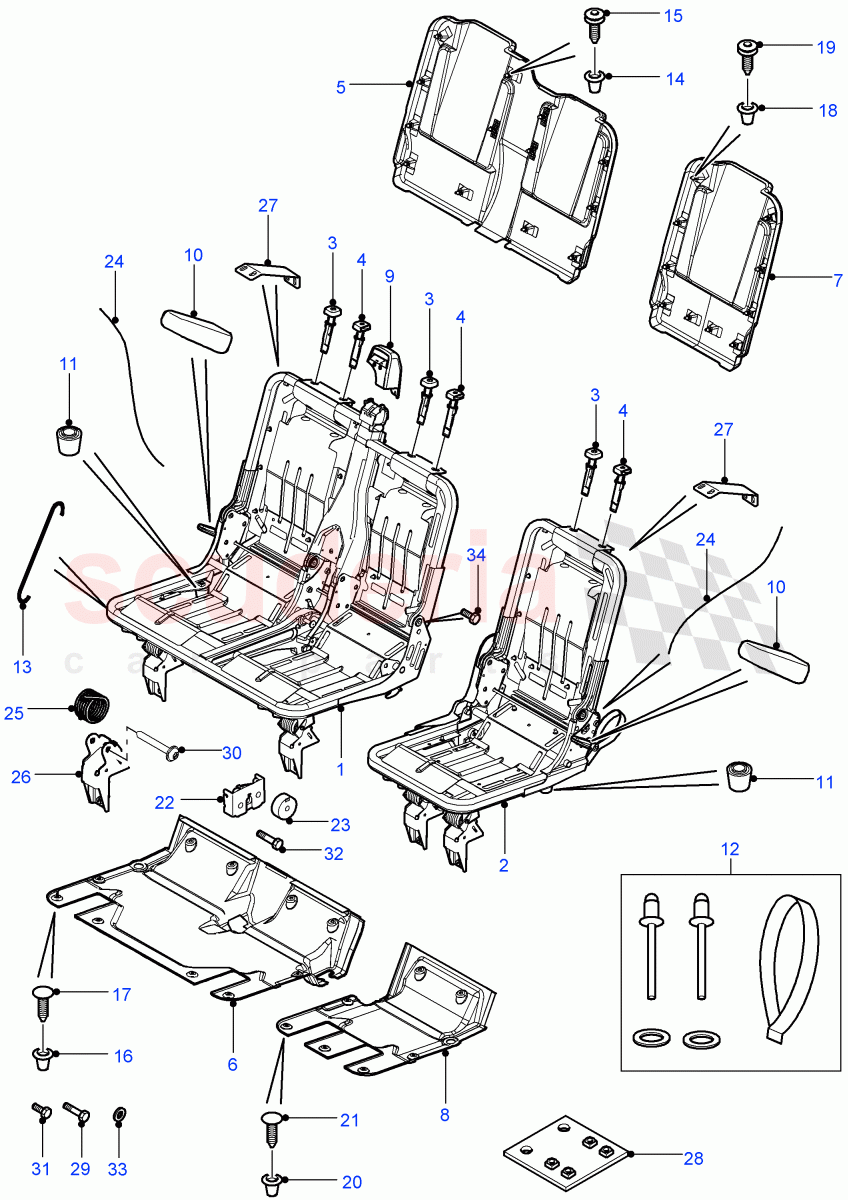

Rear Seat Frame (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door, Crew Cab HCPU) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 HTD500220
FRAME - SEAT
110" Wheelbase, Station Wagon - 5 Door / To: 7A999999 		$1,168.53 1
1 HTD500230
FRAME - SEAT
130" Wheelbase, Crew Cab HCPU / To: 7A999999 		$1,064.19 1
1 HTD500280
FRAME - SEAT
110" Wheelbase, Station Wagon - 5 Door / From: 8A000001 / To: CA420920 		$1,011.82 1
1 HTD500300
FRAME - SEAT
110" Wheelbase, Crew Cab Pick Up / From: 8A000001 / To: CA420920 		$1,172.82 1
1 HTD500320
FRAME - SEAT
130" Wheelbase, Crew Cab HCPU / From: 8A000001 / To: CA420920 		$996.84 1
1 LR032158
FRAME AND SPRING - RR SEAT CUSHION
110" Wheelbase, Station Wagon - 5 Door / From: CA420921 		$1,035.14 1
1 LR032346
FRAME AND SPRING - RR SEAT CUSHION
110" Wheelbase, Crew Cab Pick Up / From: CA420921 		$1,171.05 1
1 LR032396
FRAME AND SPRING - RR SEAT CUSHION
130" Wheelbase, Crew Cab HCPU / From: CA420921 		$1,171.05 1
2 HTD500180
FRAME - SEAT
130" Wheelbase, Crew Cab HCPU / To: 7A999999 		$794.59 1
2 HTD500160
FRAME - SEAT
110" Wheelbase, Station Wagon - 5 Door / To: 7A999999 		$794.59 1
2 HTD500290
FRAME - SEAT
110" Wheelbase, Station Wagon - 5 Door / From: 8A000001 / To: CA420920 		$1,276.10 1
2 HTD500310
FRAME - SEAT
110" Wheelbase, Crew Cab Pick Up / From: 8A000001 / To: CA420920 		$781.90 1
2 HTD500330
FRAME - SEAT
130" Wheelbase, Crew Cab HCPU / From: 8A000001 / To: CA420920 		$759.51 1
2 LR032156
FRAME AND SPRING - RR SEAT CUSHION
110" Wheelbase, Station Wagon - 5 Door / From: CA420921 		$1,086.90 1
2 LR032157
FRAME AND SPRING - RR SEAT CUSHION
110" Wheelbase, Crew Cab Pick Up / From: CA420921 		$1,014.85 1
2 LR032395
FRAME AND SPRING - RR SEAT CUSHION
130" Wheelbase, Crew Cab HCPU / From: CA420921 		$1,125.61 1
3 HJQ500250PUY
SLEEVE - HEADREST GUIDE
Non - Locking 		$11.20 3
4 HJQ500240PUY
SLEEVE - HEADREST GUIDE
Locking Type 		$11.20 3
5 HMR500030PUY
PANEL - TRIM
110" Wheelbase, Station Wagon - 5 Door 		$121.07 1
5 HMR500090PUY
TRIM - SEAT BACK REAR
130" Wheelbase, Chassis Crew Cab 		$59.67 1
6 HMR500070PUY
PANEL - TRIM
110" Wheelbase, Station Wagon - 5 Door 		$121.07 1
7 HMR500060PUY
PANEL - TRIM
110" Wheelbase, Station Wagon - 5 Door 		$57.92 1
7 HMR500080PUY
TRIM - SEAT BACK REAR
130" Wheelbase, Chassis Crew Cab 		$79.53 1
8 HMR500020PUY
PANEL - TRIM
110" Wheelbase, Station Wagon - 5 Door 		$121.07 1
9 EWM500040
ESCUTCHEON 		$40.90 1
10 MUC8754
KNOB - SEAT TIPPING RELEASE 		$15.82 2
11 HXX100040
SUPPORT - REAR SEAT CUSHION 		$4.09 2
12 VUB000130
STRAP - FRONT SEAT BACK 		$41.06 2
13 EAS500190
STRAP - SECURING 		$7.08 2
14 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 11
15 HYR500020
FASTENER
fir tree, Male 		$1.49 11
16 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 10
17 HYR500030
FASTENER
fir tree, Male 		$1.45 10
18 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 8
19 HYR500020
FASTENER
fir tree, Male 		$1.49 8
20 EYC101460
CLIP
Female, fir tree
IN STOCK 		$1.09 7
21 HYR500030
FASTENER
fir tree, Male 		$1.45 7
22 HWE500140
LATCH - REAR SEAT BACK 		$48.14 1
23 HWE500160
BUMPER - SEAT STOP 		$289.12 1
24 HWF500010
CABLE
Large Seat 		$37.33 1
24 HWF500020
CABLE
Small Seat 		$28.45 1
25 HYD500090
PIN - SPECIAL 		$11.20 2
26 HTM500180
PIVOT
110" Wheelbase, Station Wagon - 5 Door 		$74.76 4
26 HTM500190
PIVOT
110" Wheelbase, Crew Cab Pick Up
IN STOCK 		$78.49 4
26 HTM500200
PIVOT
130" Wheelbase, Crew Cab HCPU 		$78.49 4
27 AFU710160
BRACKET
130" Wheelbase, Chassis Crew Cab / RH / To: 9A767225 		$15.52 1
27 AFU710170
BRACKET
130" Wheelbase, Chassis Crew Cab / LH / To: 9A767225 		$15.52 1
27 AFU710180
BRACKET
130" Wheelbase, Chassis Crew Cab / Centre / To: 9A767225 		$15.52 1
27 LR012135
BRACKET - SEAT MOUNTING
130" Wheelbase, Crew Cab HCPU / Centre / From: 9A767226 		$13.68 1
27 LR012136
BRACKET - SEAT MOUNTING
130" Wheelbase, Crew Cab HCPU / LH / From: 9A767226 		$15.05 1
27 LR012137
BRACKET - SEAT MOUNTING
130" Wheelbase, Crew Cab HCPU / RH / From: 9A767226 		$15.05 1
28 ALU710130
BRACKET - SEAT MOUNTING 		$30.82 4
29 LR009697
SCREW
M8 X 35 		$1.39 -
30 LR009698
SCREW
M6 x 80MM 		$2.16 -
31 LR009699
SCREW
M8 X 1.25 X 16MM 		$1.05 -
32 LR009700
SCREW
M8 X 1.25 X 40MM 		$2.92 -
33 LR011695
SPACER
M8 		$1.70 -
34 EYP500340
SCREW
M8 X 1.25 X 25 		$3.31 -
