Front Seat - Cab Base Anchorage (Chassis Cab, 110" Wheelbase, High Capacity Pick Up, Chassis Crew...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Front Seat - Cab Base Anchorage (Chassis Cab, 110" Wheelbase, High Capacity Pick Up, Chassis Crew...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
MTC3042 REINFORCEMENT Enquire To Order
LR010528 REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
MTC3051 BRACKET Enquire To Order
MTC3052 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
FS108307L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
395252 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
AFU1079 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
ASR2436 Bar-tie-bent forging Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL108002 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
View All

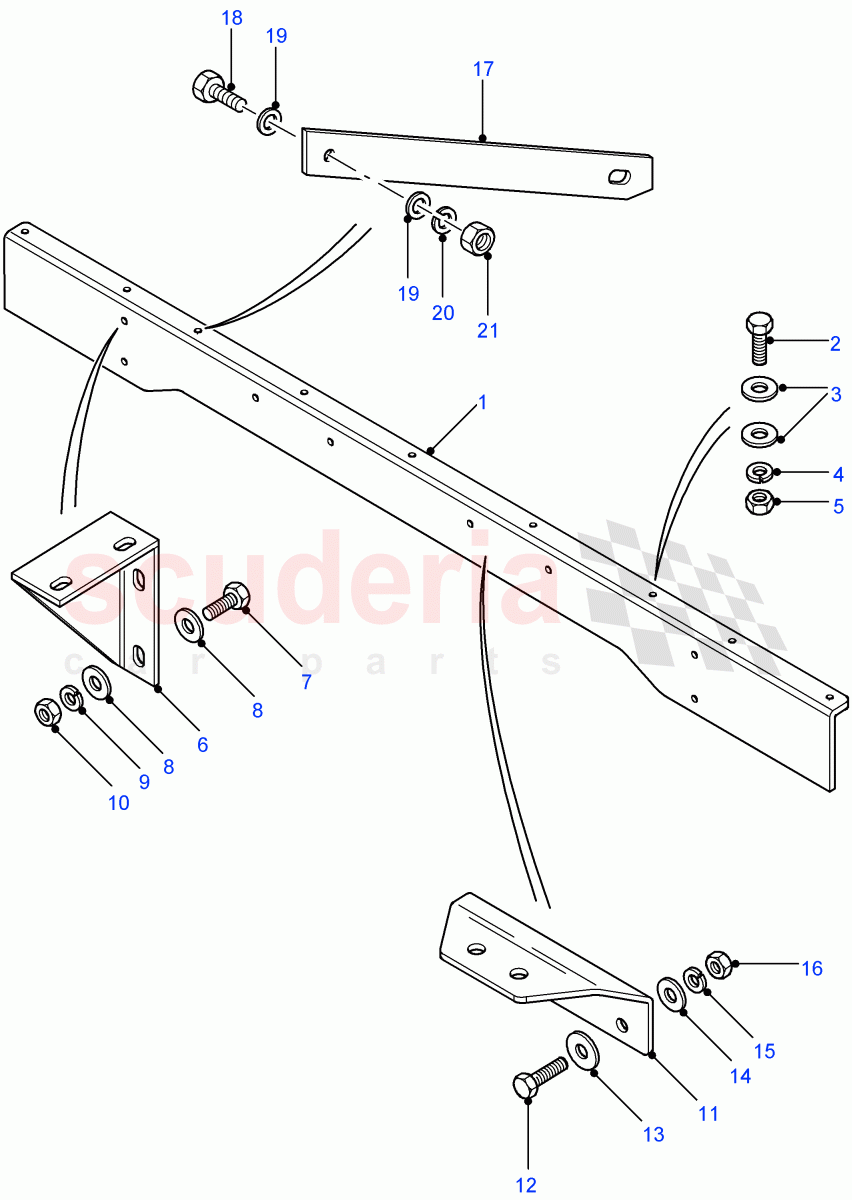

Front Seat - Cab Base Anchorage (Chassis Cab, 110" Wheelbase, High Capacity Pick Up, Chassis Crew Cab, 130" Wheelbase, Crew Cab HCPU) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 MTC3042
REINFORCEMENT
To: 8A777776 		- 1 Enquire
1 LR010528
REINFORCEMENT
From: 8A777777 		- 1 Enquire
2 FS108256
BOLT
Flanged Head, M8 x 25 		- 9 Enquire
3 WC108051L
WASHER
M8 		- 18 Enquire
4 WA108056
WASHER
M8, sprung 		- 9 Enquire
5 FN108046
NUT - HEX.
flange, M8 		- 9 Enquire
6 MTC3051
BRACKET
LH 		- 1 Enquire
6 MTC3052
BRACKET
RH 		- 1 Enquire
7 FS108307L
SCREW
Flanged Head, M8 X 30MM 		- 2 Enquire
8 WC108051L
WASHER
M8 		- 8 Enquire
9 WA108056
WASHER
M8, sprung 		- 4 Enquire
10 FN108046
NUT - HEX.
flange, M8 		- 4 Enquire
11 395252
BRACKET
130" Wheelbase, Chassis Crew Cab 		- 2 Enquire
12 FS108256
BOLT
130" Wheelbase, Chassis Crew Cab / Flanged Head, M8 x 25 		- 4 Enquire
13 AFU1079
WASHER
130" Wheelbase, Chassis Crew Cab / M8 		- 4 Enquire
14 WC108051L
WASHER
130" Wheelbase, Chassis Crew Cab / M8 		- 4 Enquire
15 WA108056
WASHER
130" Wheelbase, Chassis Crew Cab / M8, sprung 		- 4 Enquire
16 FN108046
NUT - HEX.
130" Wheelbase, Chassis Crew Cab / flange, M8 		- 4 Enquire
17 ASR2436
Bar-tie-bent forging
110" Wheelbase, High Capacity Pick Up 		- 2 Enquire
18 FS108256
BOLT
110" Wheelbase, High Capacity Pick Up / Flanged Head, M8 x 25 		- 4 Enquire
19 WC108051L
WASHER
110" Wheelbase, High Capacity Pick Up / M8 		- 8 Enquire
20 WL108002
WASHER
110" Wheelbase, High Capacity Pick Up / M8, sprung 		- 4 Enquire
21 FN108046
NUT - HEX.
110" Wheelbase, High Capacity Pick Up / flange, M8 		- 4 Enquire
