Name: Rear Forward Facing Seats (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door) ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

Rear Forward Facing Seats (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Forward Facing Seats (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door,...

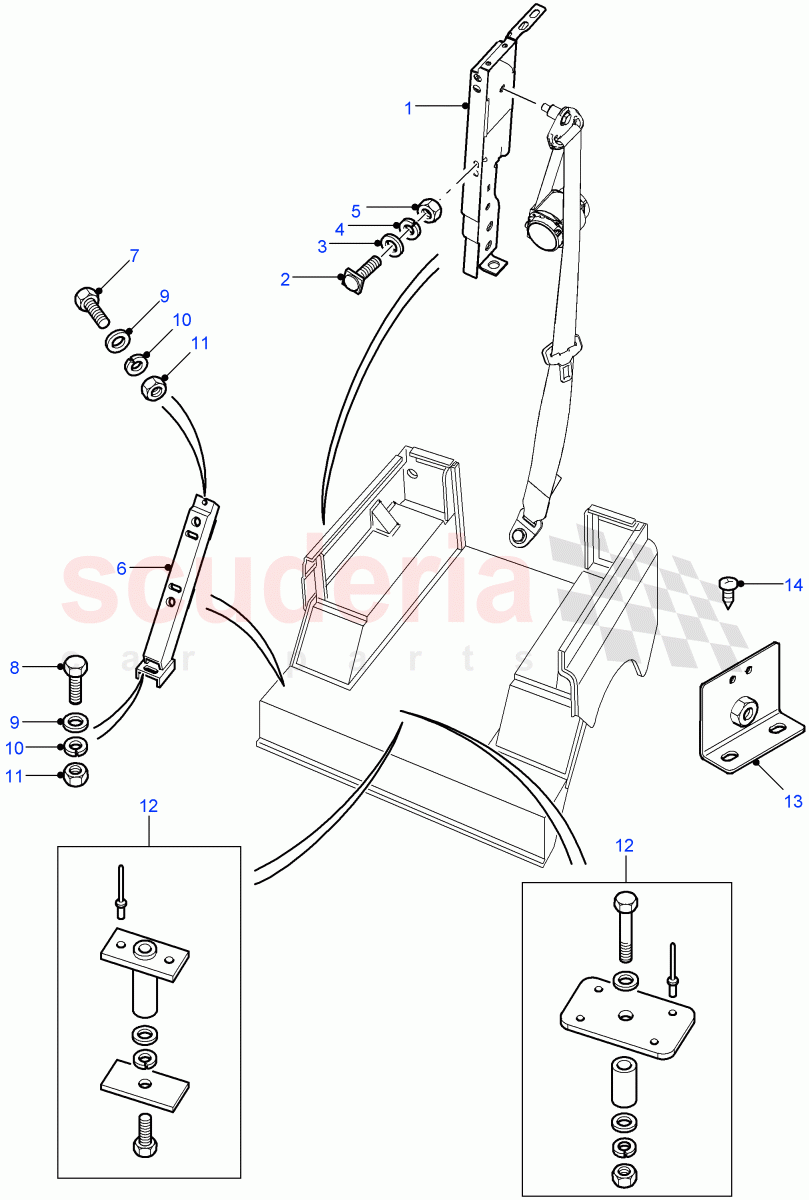

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	EWY500060	BRACKET - SEAT BELT ANCHOR	$97.45	To Order
	EWY500110	Bracket-rear seat belt anchorage	Enquire	To Order
	EWY500100	BRACKET - SEAT BELT ANCHOR	$101.37	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	MRC7626	BOLT	$27.47	To Order

Photo	Part No	Description	Price (each)	Stock
	WB106041L	WASHER	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	347844	BRACKET - SEAT BELT ANCHOR	$118.97	To Order

Photo	Part No	Description	Price (each)	Stock
	SH605071L	SCREW	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	SH605081L	SCREW	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	3830L	WASHER	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	WM600051L	WASHER - SPRING	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	NH605041L	NUT - HEX.	$1.85	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC6065	KIT - FIXING PARTS	$222.12	To Order

Photo	Part No	Description	Price (each)	Stock
	APU710010	BRACKET	$57.01	To Order

Photo	Part No	Description	Price (each)	Stock
	AC608044	SCREW - SELF-TAPPING	$0.55	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	EWY500060	BRACKET - SEAT BELT ANCHOR	EWY500060 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / RH, Upper / To: 7A748537	$97.45	1
1	EWY500110	Bracket-rear seat belt anchorage	EWY500110 Bracket-rear seat belt anchorage 110" Wheelbase, Station Wagon - 5 Door / LH, Upper / From: 7A748538 / To: 7A751936	-	1	Enquire
1	EWY500100	BRACKET - SEAT BELT ANCHOR	EWY500100 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / RH, Upper / From: 7A748538 / To: 7A751936	$101.37	1
1	EWY500070	BRACKET - SEAT BELT ANCHOR	EWY500070 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / LH, Upper / To: 7A748537	$97.45	1
1	EWY500140	BRACKET - SEAT BELT ANCHOR	EWY500140 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / RH, Upper / From: 7A751937 / To: 9A777776	$101.37	1
1	EWY500150	BRACKET - SEAT BELT ANCHOR	EWY500150 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / LH, Upper / From: 7A751937 / To: 9A777776	$89.23	1
1	LR012450	BRACKET - SEAT BELT ANCHOR	LR012450 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / RH, Upper / From: 9A777777	$206.53	1
1	LR012451	BRACKET - SEAT BELT ANCHOR	LR012451 BRACKET - SEAT BELT ANCHOR 110" Wheelbase, Station Wagon - 5 Door / LH, Upper / From: 9A777777	$206.53	1
2	MRC7626	BOLT	MRC7626 BOLT 110" Wheelbase	$27.47	2
3	WB106041L	WASHER	WB106041L WASHER 110" Wheelbase, Station Wagon - 5 Door / M6	$0.61	2
4	WL106002	RESTRICTOR IN STOCK	WL106002 RESTRICTOR 110" Wheelbase, Station Wagon - 5 Door / M6, sprung IN STOCK	$1.69	2
5	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. 110" Wheelbase, Station Wagon - 5 Door / Hexagonal Head, M6, nyloc IN STOCK	$0.69	2
6	347844	BRACKET - SEAT BELT ANCHOR	347844 BRACKET - SEAT BELT ANCHOR to wheelarch	$118.97	2
7	SH605071L	SCREW	SH605071L SCREW Upper	$3.85	2
8	SH605081L	SCREW	SH605081L SCREW 5/16UNF x 1, Hexagonal Head	$1.16	2
9	3830L	WASHER	3830L WASHER	$0.55	4
10	WM600051L	WASHER - SPRING	WM600051L WASHER - SPRING 5/16"	$1.03	4
11	NH605041L	NUT - HEX.	NH605041L NUT - HEX. 5/16UNF, Hexagonal Head	$1.85	4
12	RTC6065	KIT - FIXING PARTS	RTC6065 KIT - FIXING PARTS	$222.12	1
13	APU710010	BRACKET	APU710010 BRACKET 110" Wheelbase, Crew Cab Pick Up / Seat Belt Retractor	$57.01	2
14	AC608044	SCREW - SELF-TAPPING	AC608044 SCREW - SELF-TAPPING 110" Wheelbase, Crew Cab Pick Up	$0.55	4
