Output Shaft 2 ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Output Shaft 2 ((V) FROM7A000001)

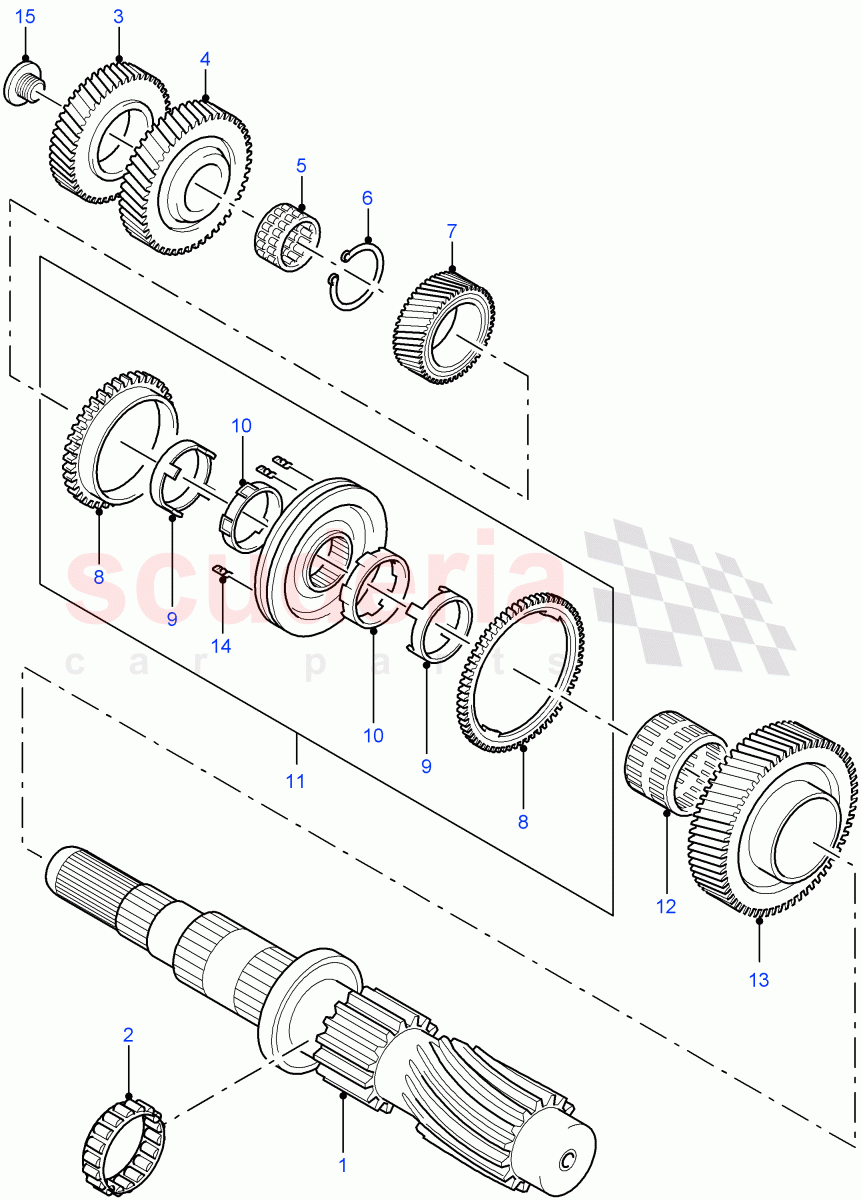

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR005157	GEAR - COUNTERSHAFT DRIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004964	RING	Enquire	To Order
	LR007001	RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004994	GEAR - COUNTERSHAFT CLUSTER	Enquire	To Order
	LR166526ANDLR023269	GEAR - COUNTERSHAFT CLUSTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006086	GEAR - 6TH SPEED	Enquire	To Order
	LR030056	GEAR - 6TH SPEED	Enquire	To Order
	LR030056	GEAR - 6TH SPEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004973	BEARING - NEEDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004950	SNAP RING	Enquire	To Order
	LR007229	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004978	GEAR	Enquire	To Order
	LR007007	GEAR	Enquire	To Order
	LR049178	GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004988	RING - 5TH SPEED SYNCHRO. BLOCKG	Enquire	To Order
	LR007012	RING - 5TH SPEED SYNCHRO. BLOCKG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005156	RING - 5TH SPEED SYNCHRO. BLOCKG	Enquire	To Order
	LR007014	RING - 5TH SPEED SYNCHRO. BLOCKG	Enquire	To Order
	LR012736	RING - SYNCHRONIZER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005018	CONE	Enquire	To Order
	LR007002	Cone - Ring - Synchronizer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005141	SYNCHRONIZER	Enquire	To Order
	LR006997	SYNCHRONIZER	Enquire	To Order
	LR158952	SYNCHRONIZER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004974	BEARING - NEEDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004979	GEAR - 4TH SPEED	Enquire	To Order
	LR023266	GEAR - 4TH SPEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005145	INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005630	BOLT - SPECIAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR005157	GEAR - COUNTERSHAFT DRIVE	LR005157 GEAR - COUNTERSHAFT DRIVE	-	1	Enquire
2	LR004964	RING	LR004964 RING To: 7A743839	-	1	Enquire
2	LR007001	RING	LR007001 RING From: 7A743840	-	1	Enquire
3	LR004994	GEAR - COUNTERSHAFT CLUSTER	LR004994 GEAR - COUNTERSHAFT CLUSTER 41 TEETH / To: 7A743839	-	1	Enquire
3	LR166526ANDLR023269	GEAR - COUNTERSHAFT CLUSTER	LR166526ANDLR023269 GEAR - COUNTERSHAFT CLUSTER 41 TEETH / From: 7A743840	-	1	Enquire
4	LR006086	GEAR - 6TH SPEED	LR006086 GEAR - 6TH SPEED 47 TEETH / To: 7A743839	-	1	Enquire
4	LR030056	GEAR - 6TH SPEED	LR030056 GEAR - 6TH SPEED 47 TEETH / From: 7A743840 / To: BA999554	-	1	Enquire
4	LR030056	GEAR - 6TH SPEED	LR030056 GEAR - 6TH SPEED 47 TEETH / From: BA999555	-	1	Enquire
5	LR004973	BEARING - NEEDLE	LR004973 BEARING - NEEDLE	-	1	Enquire
6	LR004950	SNAP RING	LR004950 SNAP RING To: 7A743839	-	1	Enquire
6	LR007229	SNAP RING	LR007229 SNAP RING From: 7A743840	-	1	Enquire
7	LR004978	GEAR	LR004978 GEAR 30 TEETH / To: 7A743839	-	1	Enquire
7	LR007007	GEAR	LR007007 GEAR 30 TEETH / From: 7A743840 / To: DA433178	-	1	Enquire
7	LR049178	GEAR	LR049178 GEAR 30 TEETH / From: DA433179	-	1	Enquire
8	LR004988	RING - 5TH SPEED SYNCHRO. BLOCKG	LR004988 RING - 5TH SPEED SYNCHRO. BLOCKG To: 7A743839	-	2	Enquire
8	LR007012	RING - 5TH SPEED SYNCHRO. BLOCKG	LR007012 RING - 5TH SPEED SYNCHRO. BLOCKG From: 7A743840	-	2	Enquire
9	LR005156	RING - 5TH SPEED SYNCHRO. BLOCKG	LR005156 RING - 5TH SPEED SYNCHRO. BLOCKG To: 7A743839	-	2	Enquire
9	LR007014	RING - 5TH SPEED SYNCHRO. BLOCKG	LR007014 RING - 5TH SPEED SYNCHRO. BLOCKG From: 7A743840 / To: 8A999999	-	2	Enquire
9	LR012736	RING - SYNCHRONIZER	LR012736 RING - SYNCHRONIZER From: 9A000001	-	2	Enquire
10	LR005018	CONE	LR005018 CONE To: 7A743839	-	2	Enquire
10	LR007002	Cone - Ring - Synchronizer	LR007002 Cone - Ring - Synchronizer From: 7A743839	-	2	Enquire
11	LR005141	SYNCHRONIZER	LR005141 SYNCHRONIZER To: 7A743839	-	1	Enquire
11	LR006997	SYNCHRONIZER	LR006997 SYNCHRONIZER From: 7A743840 / To: 8A999999	-	1	Enquire
11	LR158952	SYNCHRONIZER	LR158952 SYNCHRONIZER From: 9A000001 / To: BA999999	-	1	Enquire
11	LR037502	SYNCHRONIZER	LR037502 SYNCHRONIZER From: CA000001	-	1	Enquire
12	LR004974	BEARING - NEEDLE	LR004974 BEARING - NEEDLE	-	1	Enquire
13	LR004979	GEAR - 4TH SPEED	LR004979 GEAR - 4TH SPEED To: 7A743839	-	1	Enquire
13	LR023266	GEAR - 4TH SPEED	LR023266 GEAR - 4TH SPEED From: 7A743839	-	1	Enquire
14	LR005145	INSERT	LR005145 INSERT	-	3	Enquire
15	LR005630	BOLT - SPECIAL	LR005630 BOLT - SPECIAL M20 x 1.5MM	-	1	Enquire
