Name: Manual Transmission External Cmpnts ((V) FROM7A000001)
Rating: 4.7 (1 reviews)

View All

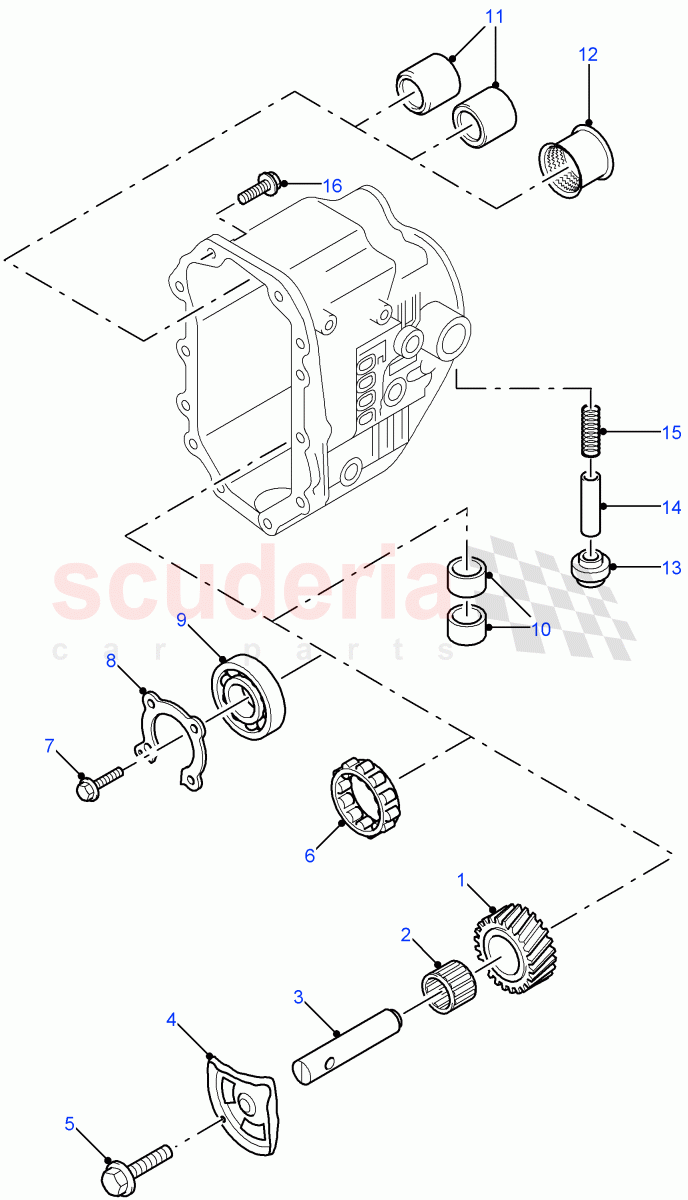

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004993	BEARING	$29.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004991	SHAFT - REVERSE IDLER GEAR	$52.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004944	SCREW	$12.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004990	ROLLER - BEARING	$27.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR004942	SCREW	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004984	RETAINER - BEARING	$44.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004987	BEARING - BALL	$117.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004999	BUSHING	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005000	BUSHING	$8.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005034	BEARING - BALL	$12.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005016	PLUG	$33.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005062	INHIBITOR	$29.22	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005061	SPRING	$2.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005010	SCREW	$3.77	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004992	GEAR - REVERSE	LR004992 GEAR - REVERSE To: 7A743839	$98.27	1
1	LR007018	GEAR - REVERSE	LR007018 GEAR - REVERSE From: 7A743840	$423.10	1
2	LR004993	BEARING	LR004993 BEARING	$29.09	1
3	LR004991	SHAFT - REVERSE IDLER GEAR	LR004991 SHAFT - REVERSE IDLER GEAR	$52.30	1
4	LR005003	BRACKET - IDLER SUPPORT	LR005003 BRACKET - IDLER SUPPORT To: DA444251	$69.03	1
4	LR057928	BRACKET - IDLER SUPPORT	LR057928 BRACKET - IDLER SUPPORT From: DA444252	$57.24	1
5	LR004944	SCREW	LR004944 SCREW	$12.59	1
6	LR004990	ROLLER - BEARING IN STOCK	LR004990 ROLLER - BEARING IN STOCK	$27.66	1
7	LR004942	SCREW	LR004942 SCREW	$0.45	4
8	LR004984	RETAINER - BEARING	LR004984 RETAINER - BEARING	$44.37	1
9	LR004987	BEARING - BALL	LR004987 BEARING - BALL	$117.81	1
10	LR004999	BUSHING	LR004999 BUSHING 12 MM	$6.77	2
11	LR005000	BUSHING	LR005000 BUSHING 17MM LONG	$8.74	2
12	LR005034	BEARING - BALL	LR005034 BEARING - BALL	$12.39	1
13	LR005016	PLUG	LR005016 PLUG	$33.94	1
14	LR005062	INHIBITOR	LR005062 INHIBITOR	$29.22	1
15	LR005061	SPRING	LR005061 SPRING	$2.04	1
16	LR005010	SCREW	LR005010 SCREW M8 X 45	$3.77	13

Manual Transmission External Cmpnts ((V) From7A000001)

Land Rover Defender (2007-2016)
