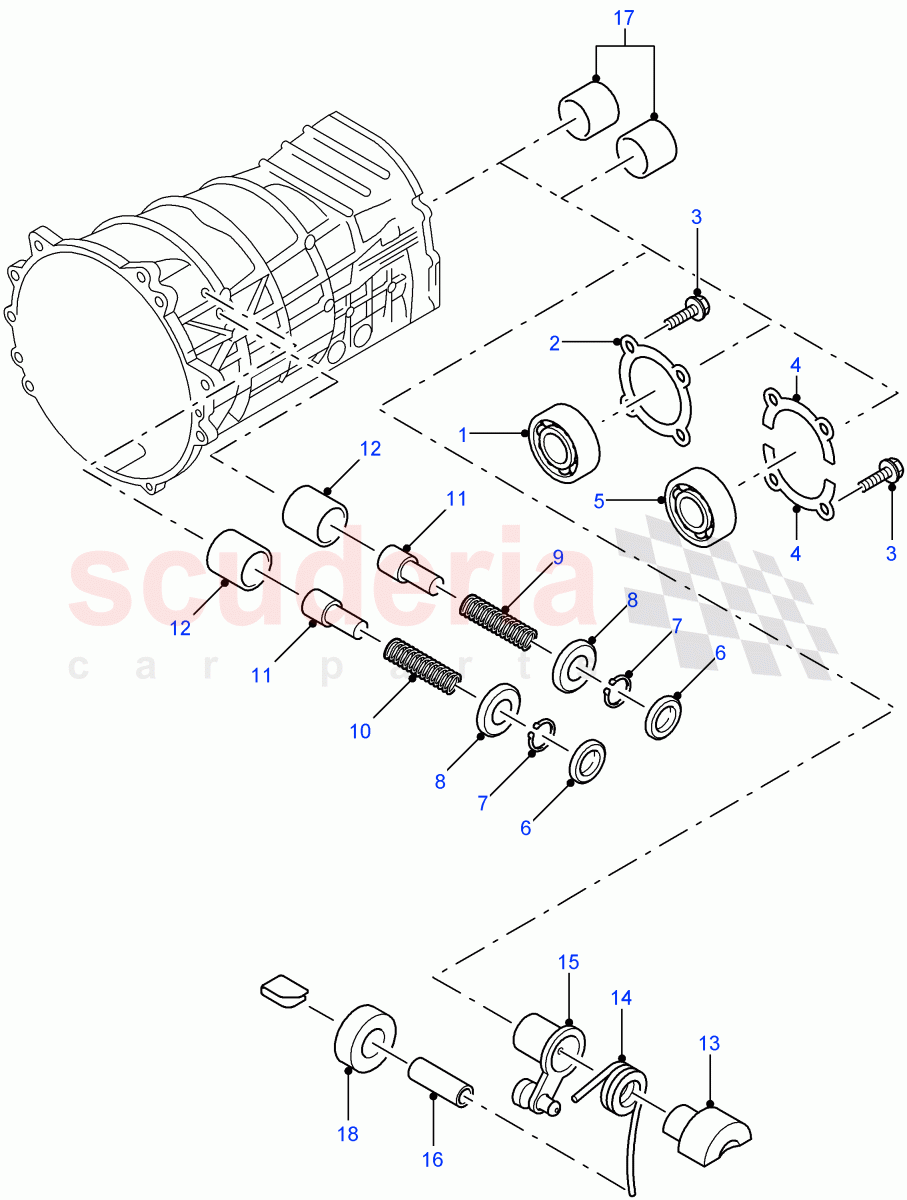

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004985	RETAINER - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004942	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004983	RETAINER - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006731	ROLLER - BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005002	PLUG - OIL GALLERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004948	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004946	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006089	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006088	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005360	PLUNGER - GEAR CHANGE SHAFT LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005063	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004956	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006087	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004957	BLOCK - GEAR SHIFT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005144	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004947	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005147	BEARING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR004982	BUSHING	LR004982 BUSHING To: 7A743839	-	1	Enquire
1	LR006730	BUSHING	LR006730 BUSHING From: 7A743840	-	1	Enquire
2	LR004985	RETAINER - BEARING	LR004985 RETAINER - BEARING	-	1	Enquire
3	LR004942	SCREW	LR004942 SCREW	-	-	Enquire
4	LR004983	RETAINER - BEARING	LR004983 RETAINER - BEARING	-	2	Enquire
5	LR006731	ROLLER - BEARING	LR006731 ROLLER - BEARING	-	1	Enquire
6	LR005002	PLUG - OIL GALLERY	LR005002 PLUG - OIL GALLERY 20MM	-	2	Enquire
7	LR004948	SNAP RING	LR004948 SNAP RING	-	2	Enquire
8	LR004946	WASHER	LR004946 WASHER	-	2	Enquire
9	LR006089	SPRING	LR006089 SPRING	-	1	Enquire
10	LR006088	SPRING	LR006088 SPRING	-	1	Enquire
11	LR005360	PLUNGER - GEAR CHANGE SHAFT LOCK	LR005360 PLUNGER - GEAR CHANGE SHAFT LOCK	-	1	Enquire
12	LR005063	BUSHING	LR005063 BUSHING	-	2	Enquire
13	LR004956	BRACKET	LR004956 BRACKET	-	1	Enquire
14	LR006087	SPRING	LR006087 SPRING	-	1	Enquire
15	LR004957	BLOCK - GEAR SHIFT CONTROL	LR004957 BLOCK - GEAR SHIFT CONTROL	-	1	Enquire
16	LR005144	PIN	LR005144 PIN	-	1	Enquire
17	LR004947	BUSHING	LR004947 BUSHING	-	2	Enquire
18	LR005147	BEARING	LR005147 BEARING	-	1	Enquire
