Manual Transmission Gear Shift ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Manual Transmission Gear Shift ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004966 PIVOT $17.96 To Order
LR008204 PIVOT $26.42 To Order
Photo Part No Description Price (each) Stock
LR004975 CABLE ASSY $14.29 To Order
LR016957 Retainer Enquire To Order
Photo Part No Description Price (each) Stock
LR005146 PLATE - INTERMEDIATE $147.78 To Order
LR007400 PLATE - INTERMEDIATE $126.17 To Order
Photo Part No Description Price (each) Stock
LR005139 ADAPTOR $31.01 To Order
Photo Part No Description Price (each) Stock
LR004965 SPACER $12.13 To Order
Photo Part No Description Price (each) Stock
LR004945 SCREW $6.11 To Order
Photo Part No Description Price (each) Stock
LR005148 RAIL $57.40 To Order
LR007103 RAIL $205.77 To Order
LR016730 RAIL $183.56 To Order
Photo Part No Description Price (each) Stock
LR004962 RAIL $104.15 To Order
LR008840 SHAFT - 5TH SPEED $187.19 To Order
LR020068 SHAFT - 5TH SPEED $173.29 To Order
Photo Part No Description Price (each) Stock
LR004998 RAIL - SELECTOR FORK $69.64 To Order
LR008957 RAIL - SELECTOR FORK $136.38 To Order
Photo Part No Description Price (each) Stock
LR004960 RAIL $182.38 To Order
LR006854 RAIL $267.10 To Order
Photo Part No Description Price (each) Stock
LR005001 SHAFT - GEAR CHANGE $575.14 To Order
Photo Part No Description Price (each) Stock
LR004968 FORK - SELECTOR $129.62 To Order
Photo Part No Description Price (each) Stock
LR004969 FORK - 3RD AND 4TH SPEED $230.20 To Order
Photo Part No Description Price (each) Stock
LR004981 FORK - GEAR SHIFT $260.37 To Order
LR038704 FORK - GEAR SHIFT $317.53 To Order
Photo Part No Description Price (each) Stock
LR004968 FORK - SELECTOR $129.62 To Order
Photo Part No Description Price (each) Stock
LR004943 SCREW $10.21 To Order
Photo Part No Description Price (each) Stock
LR016958 RETAINER - INTERLOCK SPRING $21.12 To Order
Photo Part No Description Price (each) Stock
LR005136 PIN $1.81 To Order
Photo Part No Description Price (each) Stock
LR017294 RETAINER - INTERLOCK SPRING $153.26 To Order
View All

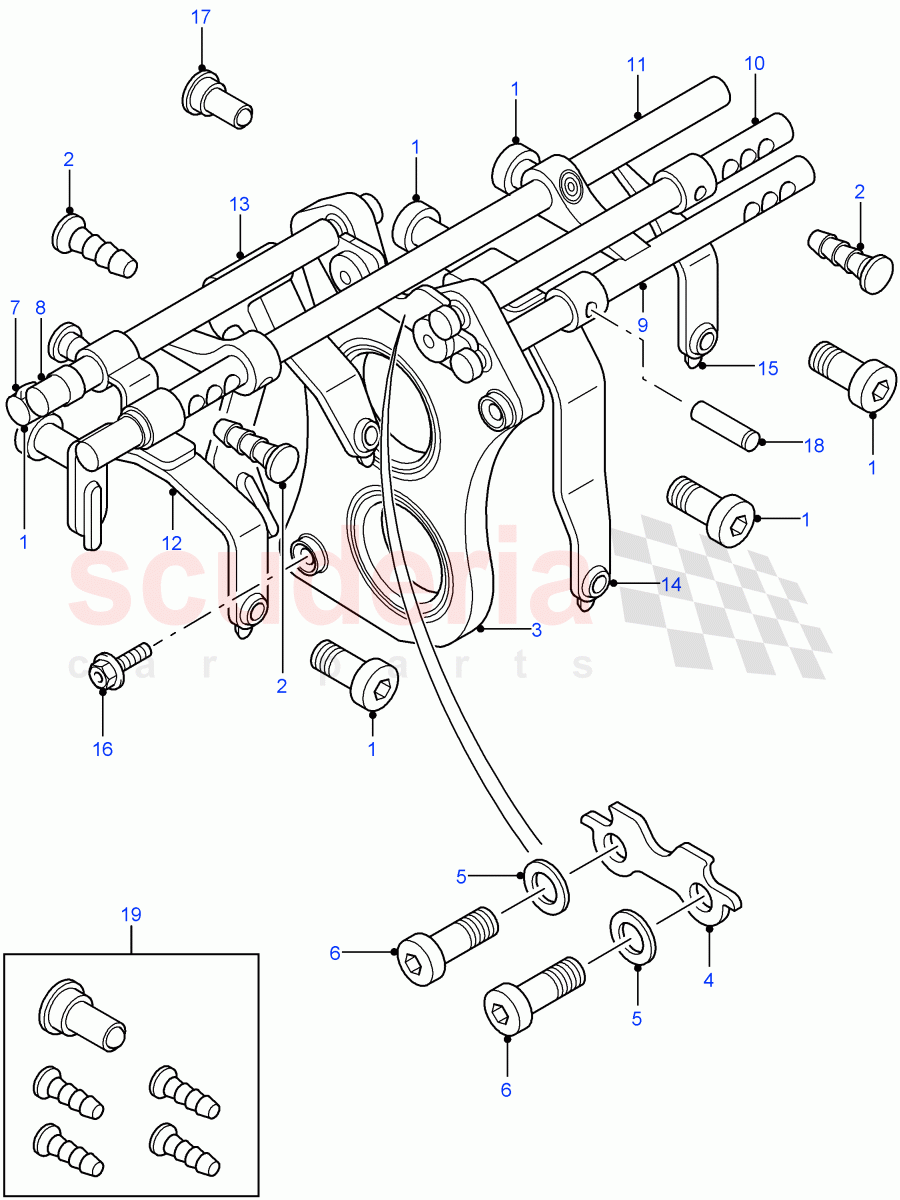

Manual Transmission Gear Shift ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR004966
PIVOT
To: 7A999999 		$17.96 6
1 LR008204
PIVOT
From: 8A000001 		$26.42 6
2 LR004975
CABLE ASSY
To: 9A777777 		$14.29 3
2 LR016957
Retainer
From: 9A777778 		- 3 Enquire
3 LR005146
PLATE - INTERMEDIATE
To: 7A743839 		$147.78 1
3 LR007400
PLATE - INTERMEDIATE
From: 7A743840 		$126.17 1
4 LR005139
ADAPTOR 		$31.01 1
5 LR004965
SPACER 		$12.13 2
6 LR004945
SCREW 		$6.11 2
7 LR005148
RAIL
To: 7A743839 		$57.40 1
7 LR007103
RAIL
From: 7A743840 / To: 9A888887 		$205.77 1
7 LR016730
RAIL
From: 9A888888 		$183.56 1
8 LR004962
RAIL
To: 7A999999 		$104.15 1
8 LR008840
SHAFT - 5TH SPEED
From: 8A000001 		$187.19 1
8 LR020068
SHAFT - 5TH SPEED 		$173.29 1
9 LR004998
RAIL - SELECTOR FORK
To: 7A999999 		$69.64 1
9 LR008957
RAIL - SELECTOR FORK
From: 8A000001 		$136.38 1
10 LR004960
RAIL
To: 7A743839 		$182.38 1
10 LR006854
RAIL
From: 7A743840 		$267.10 1
11 LR005001
SHAFT - GEAR CHANGE 		$575.14 1
12 LR004968
FORK - SELECTOR 		$129.62 1
13 LR004969
FORK - 3RD AND 4TH SPEED 		$230.20 1
14 LR004981
FORK - GEAR SHIFT
To: CA412385 		$260.37 1
14 LR038704
FORK - GEAR SHIFT
From: CA412386 		$317.53 1
15 LR004968
FORK - SELECTOR 		$129.62 1
16 LR004943
SCREW
M8 x 40mm 		$10.21 3
17 LR016958
RETAINER - INTERLOCK SPRING 		$21.12 1
18 LR005136
PIN 		$1.81 1
19 LR017294
RETAINER - INTERLOCK SPRING 		$153.26 1
20 LR019111
DOWEL
To: BA404358 		$2.71 1
20 LR031459
DOWEL
From: BA404359 		$4.93 1
