Clutch Release Mechanism ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Clutch Release Mechanism ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
UGN500020 ADAPTOR Enquire To Order
LR031188 ADAPTOR Enquire To Order
LR068981 ADAPTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR077602 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
UUB500040 CYLINDER - HYDRAULIC Enquire To Order
LR019597 CYLINDER - CLUTCH SLAVE Enquire To Order
LR031455 CYLINDER - CLUTCH SLAVE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
UUG500040 VALVE - CONTROL Enquire To Order
LR068982 VALVE - CONTROL Enquire To Order
View All

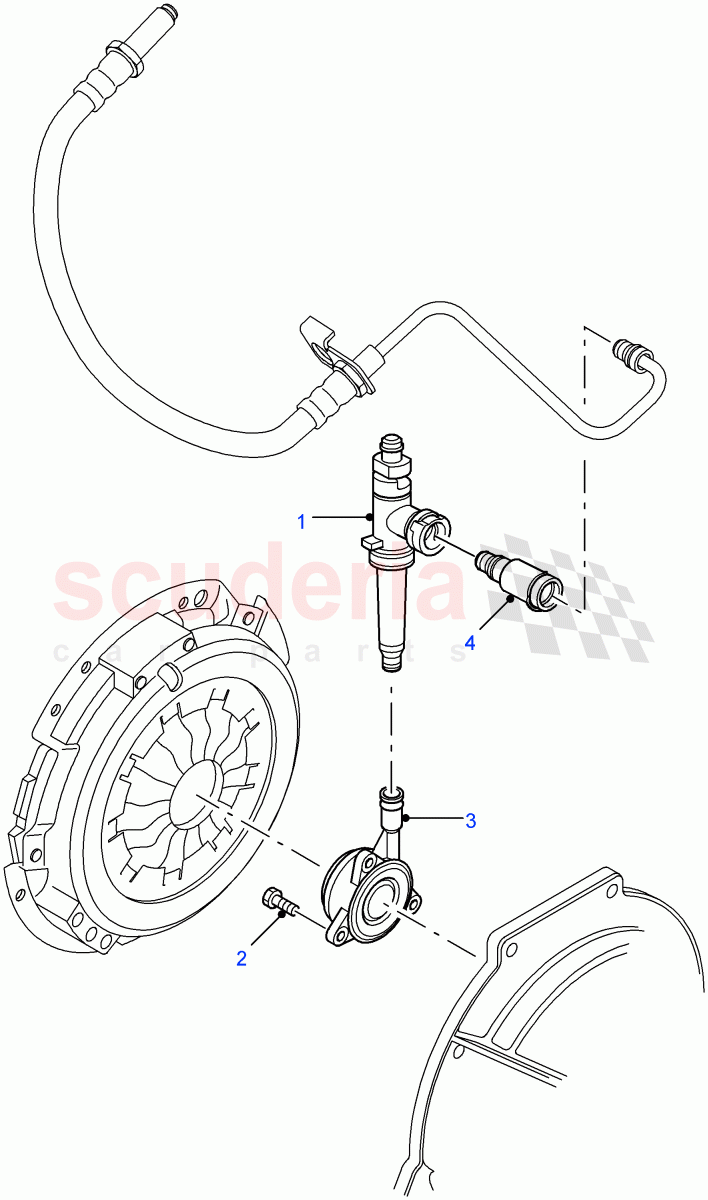

Clutch Release Mechanism ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 UGN500020
ADAPTOR
To: BA401237 		- 1 Enquire
1 LR031188
ADAPTOR
From: BA401238 / To: FA459933 		- 1 Enquire
1 LR068981
ADAPTOR
When Ordering LR068981 For The First Time, Parts LR068979 And LR068982 Must Also Be Ordered / From: FA459934 		- 1 Enquire
2 LR077602
SCREW 		- 3 Enquire
3 UUB500040
CYLINDER - HYDRAULIC
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / To: 8A999999 		- 1 Enquire
3 LR019597
CYLINDER - CLUTCH SLAVE
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / From: 9A000001 / To: BA403641 		- 1 Enquire
3 LR031455
CYLINDER - CLUTCH SLAVE
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / From: BA403642 / To: CA420846 		- 1 Enquire
3 LR040773
CYLINDER - CLUTCH SLAVE
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / From: CA420847 / To: DA439096 		- 1 Enquire
3 LR052128
CYLINDER - CLUTCH SLAVE
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / From: DA439097 / To: FA459933 		- 1 Enquire
3 LR068979
CYLINDER - CLUTCH SLAVE
When Ordering LR068979 For The First TIme, Parts LR068981 And LR068982 Must Also Be Ordered / From: FA459934 		- 1 Enquire
4 UUG500040
VALVE - CONTROL
Slave Cylinder / To: FA459933 		- 1 Enquire
4 LR068982
VALVE - CONTROL
Slave Cylinder, When Ordering LR068982 For The First Time, Parts LR068979 And LR068981 Must Also Be Ordered / From: FA459934 		- 1 Enquire
