Towing Systems ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Towing Systems ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

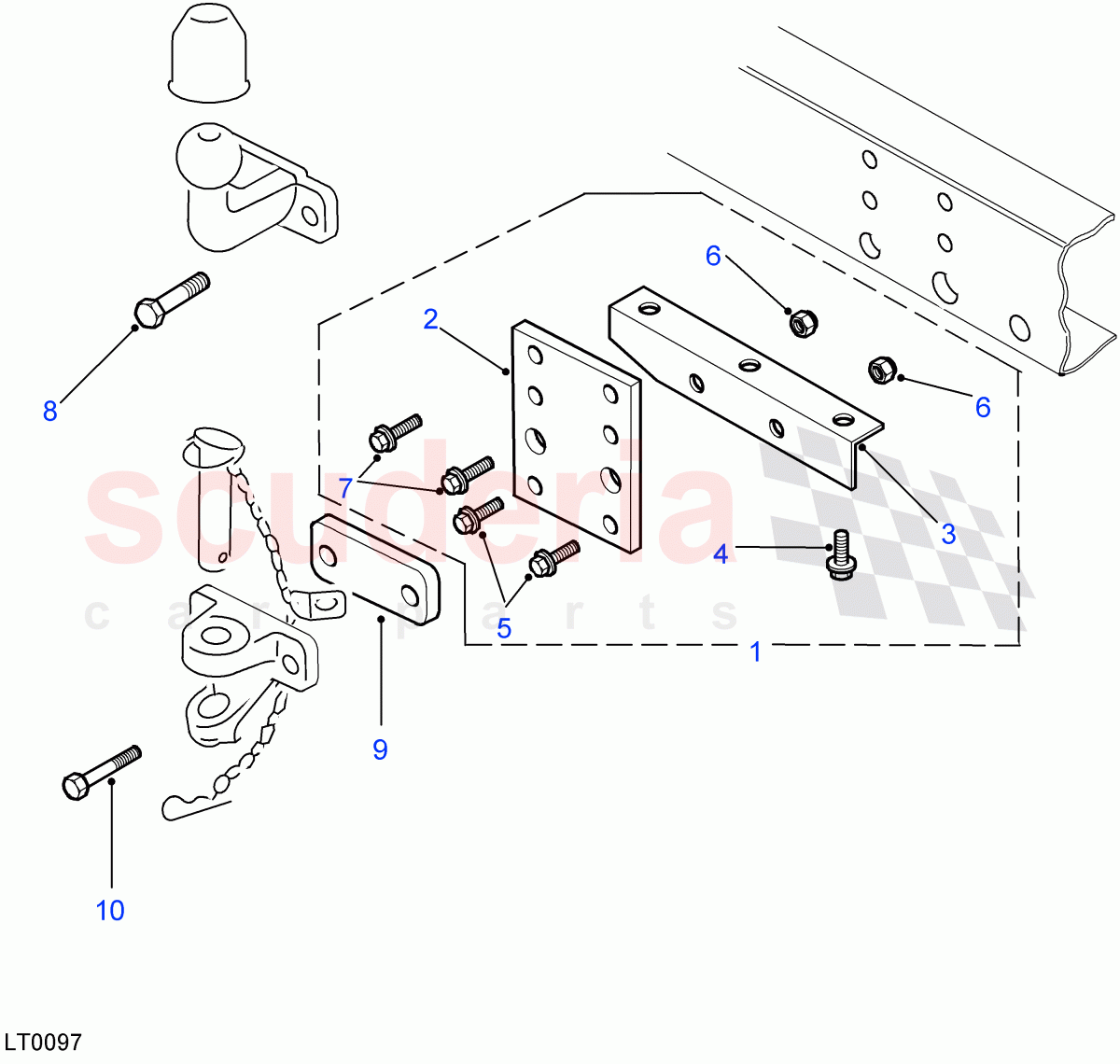

Towing Systems ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 KNK100090
Plate assembly-tow bar mounting
(-)"AUS" 		$91.29 1
2 KNK100080
PLATE - MOUNTING 		$76.50 1
3 KNL100010
REINFORCEMENT - TOWING HOOK
To: CA555554 		$16.29 1
3 LR042765
REINFORCEMENT - TOWING HOOK
From: CA555555 		$38.12 1
4 FS110251L
SCREW
M10 x 25 		$5.62 3
5 FS110306
BOLT - HEX.HEAD
Flanged Head, M10 x 30, top 		$2.27 2
6 NY110047L
NUT - HEX.
Hexagonal Head, nyloc 		$2.61 2
7 FB112081
BOLT
Flanged Head, M12 x 40 		$5.40 2
8 FB116106
BOLT
dacromat, M16 x 50 		$2.89 2
9 562756
SPACER 		$21.89 1
10 FB116126
BOLT
dacromat, M16 x 60MM 		$6.24 2
