Name: Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase) ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Towing Equip-Drop Plate W/Tow Ball (High Capacity Pick Up, 110" Wheelbase, Chassis Crew Cab, 130"...

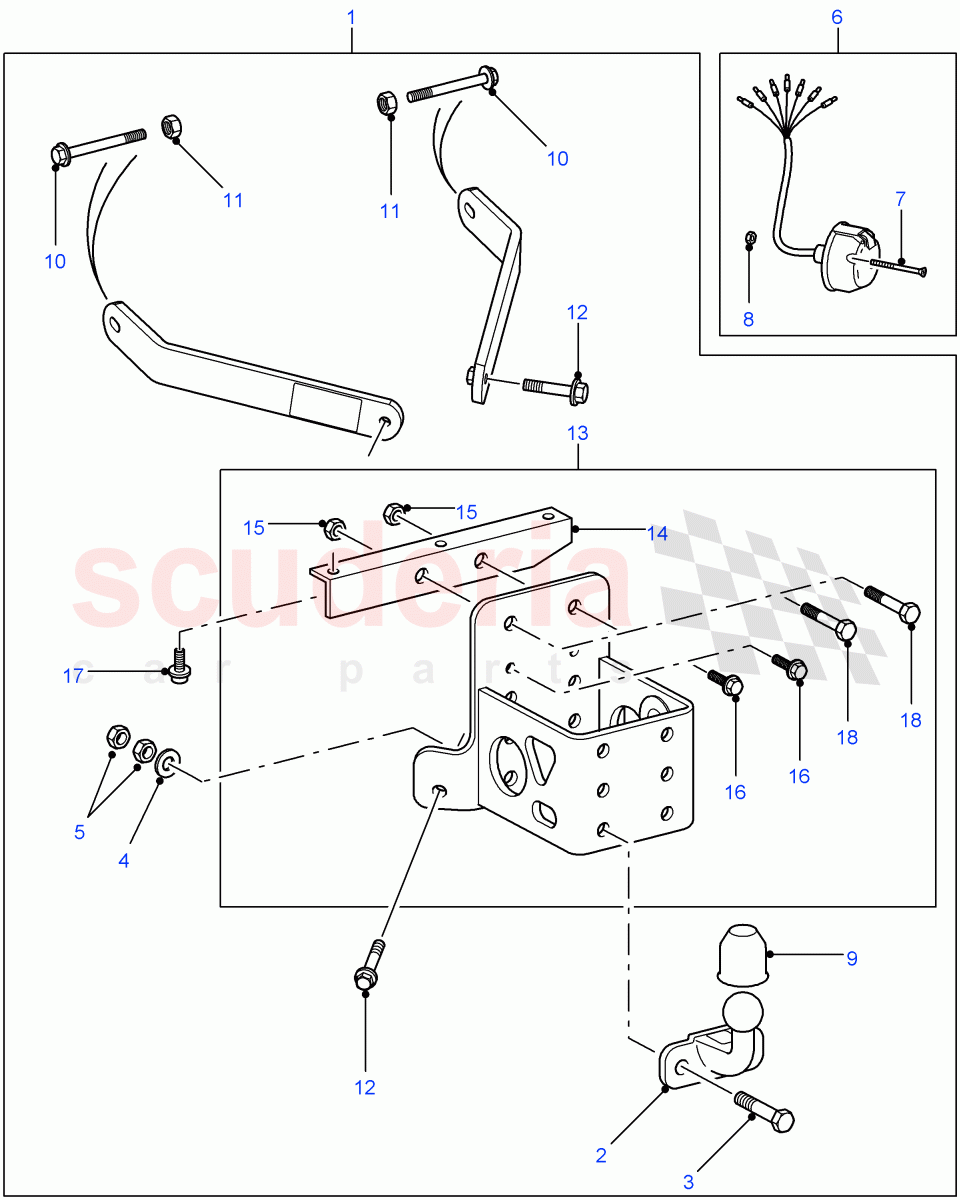

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006312	BAR - TOWING	$376.92	To Order
	VPLDT0086	KIT - TOW BRACKET	$365.60	To Order

Photo	Part No	Description	Price (each)	Stock
	RTC8891AA	BAR - TOWING	$62.73	To Order

Photo	Part No	Description	Price (each)	Stock
	FB116126	BOLT	$6.24	To Order

Photo	Part No	Description	Price (each)	Stock
	WC116106	WASHER	$1.94	To Order

Photo	Part No	Description	Price (each)	Stock
	NH116046	NUT - HEX.	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005920	TOW BAR ELECTRICS	$131.87	To Order

Photo	Part No	Description	Price (each)	Stock
	SE105401	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	NY105041L	NUT - HEX.	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR3635	COVER - TOWING HOOK	$11.72	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500440	BOLT	$1.49	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500450	BOLT	$3.58	To Order

Photo	Part No	Description	Price (each)	Stock
	KNK500120	PLATE	$292.68	To Order
	LR025434	PLATE	$276.73	To Order
	LR042720	PLATE	$321.66	To Order

Photo	Part No	Description	Price (each)	Stock
	KNL100010	REINFORCEMENT - TOWING HOOK	$16.29	To Order
	LR042765	REINFORCEMENT - TOWING HOOK	$38.12	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110306	BOLT - HEX.HEAD	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110306	BOLT - HEX.HEAD	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	FB116126	BOLT	$6.24	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR006312	BAR - TOWING	LR006312 BAR - TOWING (-)"AUS" / To: DA429295	$376.92	1
1	VPLDT0086	KIT - TOW BRACKET	VPLDT0086 KIT - TOW BRACKET (-)"AUS" / From: DA429296	$365.60	1
2	RTC8891AA	BAR - TOWING	RTC8891AA BAR - TOWING (-)"AUS" / 50MM	$62.73	1
3	FB116126	BOLT	FB116126 BOLT dacromat, M16 x 60MM	$6.24	2
4	WC116106	WASHER	WC116106 WASHER	$1.94	2
5	NH116046	NUT - HEX.	NH116046 NUT - HEX. Hexagonal Head, M16	$2.89	4
6	LR005920	TOW BAR ELECTRICS	LR005920 TOW BAR ELECTRICS n type	$131.87	1
7	SE105401	SCREW	SE105401 SCREW M5 x 40, Pan Head	$1.63	3
8	NY105041L	NUT - HEX.	NY105041L NUT - HEX. M5	$1.00	3
9	ANR3635	COVER - TOWING HOOK	ANR3635 COVER - TOWING HOOK 50MM	$11.72	1
10	KYG500440	BOLT	KYG500440 BOLT M10 x 115	$1.49	2
11	FY110046	NUT - HEX.	FY110046 NUT - HEX. M10	$2.82	2
12	KYG500450	BOLT	KYG500450 BOLT Flanged Head, M12 x 40, top	$3.58	2
13	KNK500120	PLATE	KNK500120 PLATE To: BA820107	$292.68	1
13	LR025434	PLATE	LR025434 PLATE From: BA820108 / To: CA555554	$276.73	1
13	LR042720	PLATE	LR042720 PLATE From: CA555555	$321.66	1
14	KNL100010	REINFORCEMENT - TOWING HOOK	KNL100010 REINFORCEMENT - TOWING HOOK To: CA555554	$16.29	1
14	LR042765	REINFORCEMENT - TOWING HOOK	LR042765 REINFORCEMENT - TOWING HOOK From: CA555555	$38.12	1
15	FY110046	NUT - HEX.	FY110046 NUT - HEX. M10	$2.82	2
16	FS110306	BOLT - HEX.HEAD	FS110306 BOLT - HEX.HEAD Flanged Head, M10 x 30	$2.27	2
17	FS110306	BOLT - HEX.HEAD	FS110306 BOLT - HEX.HEAD Flanged Head, M10 x 30	$2.27	3
18	FB116126	BOLT	FB116126 BOLT M16 x 60MM	$6.24	2
