Name: Chequer Plates ((V) FROM7A000001)
Rating: 4.3 (1 reviews)

View All

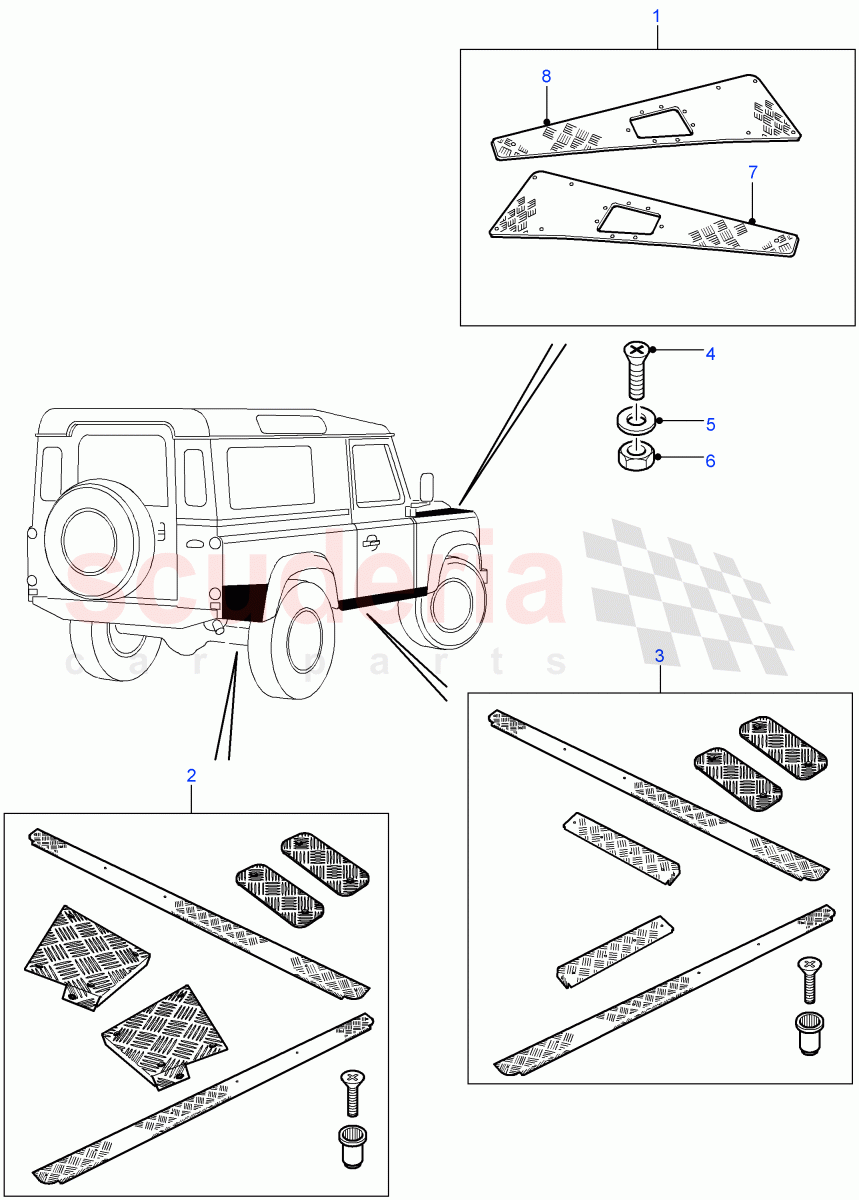

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	SF106161L	SCREW	$2.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WJ106001L	WASHER	$2.46	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.69	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR005230	PROTECTOR	LR005230 PROTECTOR front fender, Kit, Pair, Silver	$385.90	1
1	LR005242	PROTECTOR IN STOCK	LR005242 PROTECTOR Black, front fender, Kit, Pair IN STOCK	$385.90	1
2	STC50245	KIT	STC50245 KIT 90" Wheelbase, Station Wagon - 3 Door / Kit, Silver	$602.76	1
2	EBN500050	KIT	EBN500050 KIT 90" Wheelbase, Station Wagon - 3 Door / Black, Kit, Sill	$588.04	-
3	EBN500051	KIT	EBN500051 KIT 110" Wheelbase, Station Wagon - 5 Door / Black, Kit, Sill	$602.76	1
3	STC50381	KIT	STC50381 KIT 110" Wheelbase, Station Wagon - 5 Door / Kit, Silver	$602.76	1
4	SF106161L	SCREW IN STOCK	SF106161L SCREW M6 X 16MM IN STOCK	$2.74	-
5	WJ106001L	WASHER	WJ106001L WASHER M6	$2.46	-
6	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc IN STOCK	$0.69	-
7	LR005231	PROTECTOR	LR005231 PROTECTOR RH, front fender, Silver	$186.92	1
7	LR005233	PROTECTOR	LR005233 PROTECTOR RH, Black, front fender	$195.59	1
8	LR005232	PROTECTOR	LR005232 PROTECTOR LH, front fender, Silver	$195.59	1
8	LR005234	PROTECTOR	LR005234 PROTECTOR LH, Black, front fender	$195.59	1

Chequer Plates ((V) From7A000001)

Land Rover Defender (2007-2016)
