Name: Mudflaps (90" Wheelbase) ((V) FROM7A000001)
Rating: 4.6 (1 reviews)

Mudflaps (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Mudflaps (90" Wheelbase) ((V) FROM7A000001)

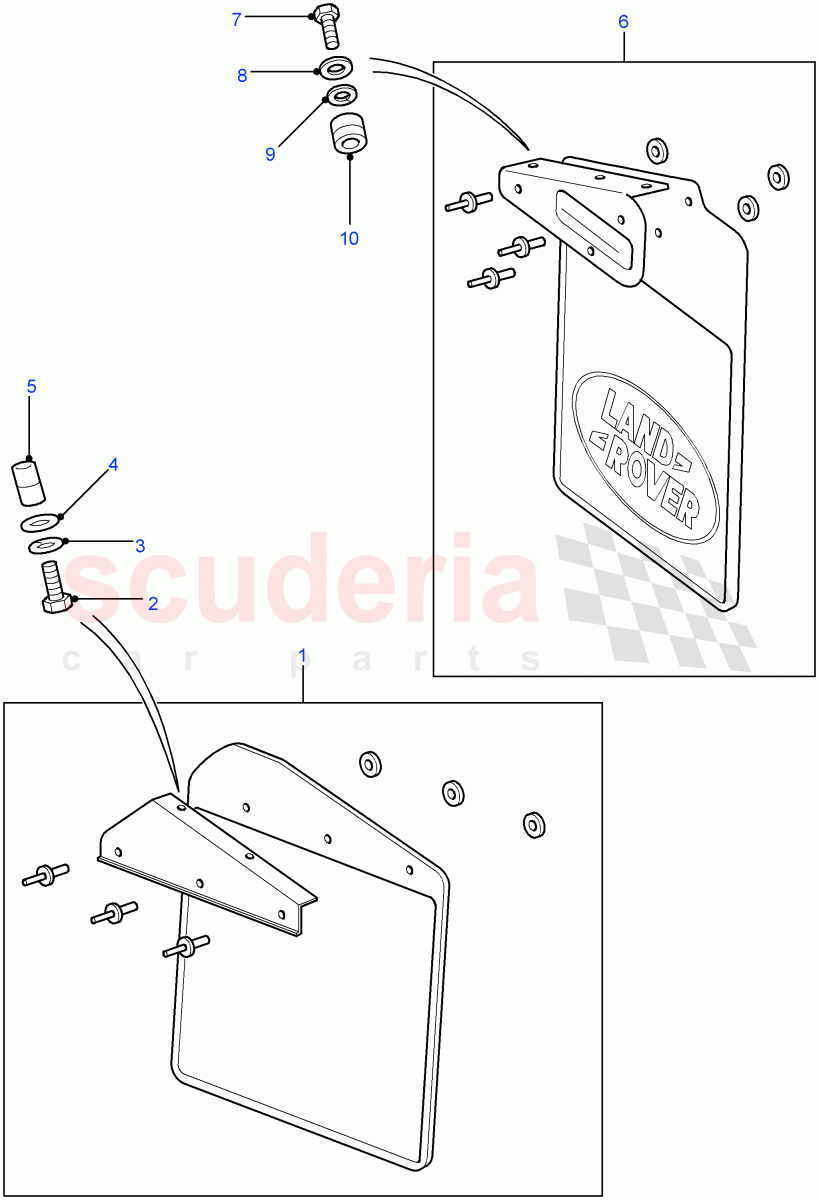

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CAS500180PMA	MUDFLAP	$53.81	To Order
	CAS500190PMA	MUDFLAP	$53.81	To Order
	LR025438	MUDFLAP	$53.81	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	$0.97	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VYF500060	WASHER	$3.89	To Order

Photo	Part No	Description	Price (each)	Stock
	NN106022	NUT - SPECIAL	$3.84	To Order

Photo	Part No	Description	Price (each)	Stock
	CAT500410PMA	MUDFLAP	$53.81	To Order
	LR025442	MUDFLAP	$53.81	To Order
	LR025786	MUDFLAP	$51.92	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	$2.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	$2.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	NN106022	NUT - SPECIAL	$3.84	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	CAS500180PMA	MUDFLAP	CAS500180PMA MUDFLAP RH, With Bracket / To: AA792970	$53.81	1
1	CAS500190PMA	MUDFLAP	CAS500190PMA MUDFLAP LH, With Bracket / To: AA792970	$53.81	1
1	LR025438	MUDFLAP	LR025438 MUDFLAP RH, With Bracket / From: AA792971 / To: BA999999	$53.81	1
1	LR025783	MUDFLAP	LR025783 MUDFLAP LH, With Bracket / From: AA792971 / To: BA999999	$53.81	1
1	LR032963	MUDFLAP	LR032963 MUDFLAP RH, With Bracket / From: CA000001 / To: DA440551	$52.76	1
1	LR032964	MUDFLAP	LR032964 MUDFLAP LH, With Bracket / From: CA000001 / To: DA440551	$53.81	1
1	LR055323	MUDFLAP	LR055323 MUDFLAP RH, With Bracket / From: DA440552	$54.66	1
1	LR055333	MUDFLAP	LR055333 MUDFLAP LH, With Bracket / From: DA440552	$54.66	1
2	FS106206	SCREW IN STOCK	FS106206 SCREW Flanged Head, M6 X 20MM, mudflap mounting bracket to body IN STOCK	$0.97	4
3	WL106002	RESTRICTOR IN STOCK	WL106002 RESTRICTOR M6, sprung IN STOCK	$1.69	4
4	VYF500060	WASHER	VYF500060 WASHER 6MM, Plain	$3.89	4
5	NN106022	NUT - SPECIAL	NN106022 NUT - SPECIAL M6	$3.84	4
6	CAT500410PMA	MUDFLAP	CAT500410PMA MUDFLAP RH, With Bracket / To: AA792970	$53.81	1
6	LR025442	MUDFLAP	LR025442 MUDFLAP RH, With Bracket / From: AA792971 / To: BA999999	$53.81	1
6	LR025786	MUDFLAP	LR025786 MUDFLAP LH, With Bracket / From: AA792971 / To: BA999999	$51.92	1
6	CAT500540PMA	MUDFLAP	CAT500540PMA MUDFLAP LH, With Bracket / To: AA792970	$53.81	1
6	LR019760	MUDFLAP	LR019760 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / To: AA796845	$115.67	1
6	LR025791	MUDFLAP	LR025791 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / From: AA796846 / To: BA799641	$115.67	1
6	LR025792	MUDFLAP	LR025792 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / From: BA799642 / To: BA999999	$115.67	1
6	LR032970	MUDFLAP	LR032970 MUDFLAP LH, With Bracket / From: CA000001 / To: DA440551	$57.47	1
6	LR032969	MUDFLAP	LR032969 MUDFLAP RH, With Bracket / From: CA000001 / To: DA440551	$57.47	1
6	LR032971	MUDFLAP	LR032971 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / From: CA000001 / To: CA433333	$115.67	1
6	LR037951	MUDFLAP	LR037951 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / From: CA433334 / To: DA440551	$115.48	1
6	LR055332	MUDFLAP	LR055332 MUDFLAP RH, With Bracket / From: DA440552	$51.78	1
6	LR055340	MUDFLAP	LR055340 MUDFLAP LH, With Bracket / From: DA440552	$51.78	1
6	LR055341	MUDFLAP	LR055341 MUDFLAP With Straight Rear Exhaust Exit / LH, Australia only, With Bracket / From: DA440552	$115.48	1
7	FS106167L	SCREW IN STOCK	FS106167L SCREW Flanged Head, M6 X 16MM IN STOCK	$2.26	4
8	WL106002	RESTRICTOR IN STOCK	WL106002 RESTRICTOR M6, sprung IN STOCK	$1.69	6
9	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR 6MM, Plain IN STOCK	$2.15	6
10	NN106022	NUT - SPECIAL	NN106022 NUT - SPECIAL M6	$3.84	2

Mudflaps (90" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Land Rover Defender (2007-2016) - Mudflaps (90" Wheelbase) ((V) FROM7A000001)
