Mudflaps (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Mudflaps (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

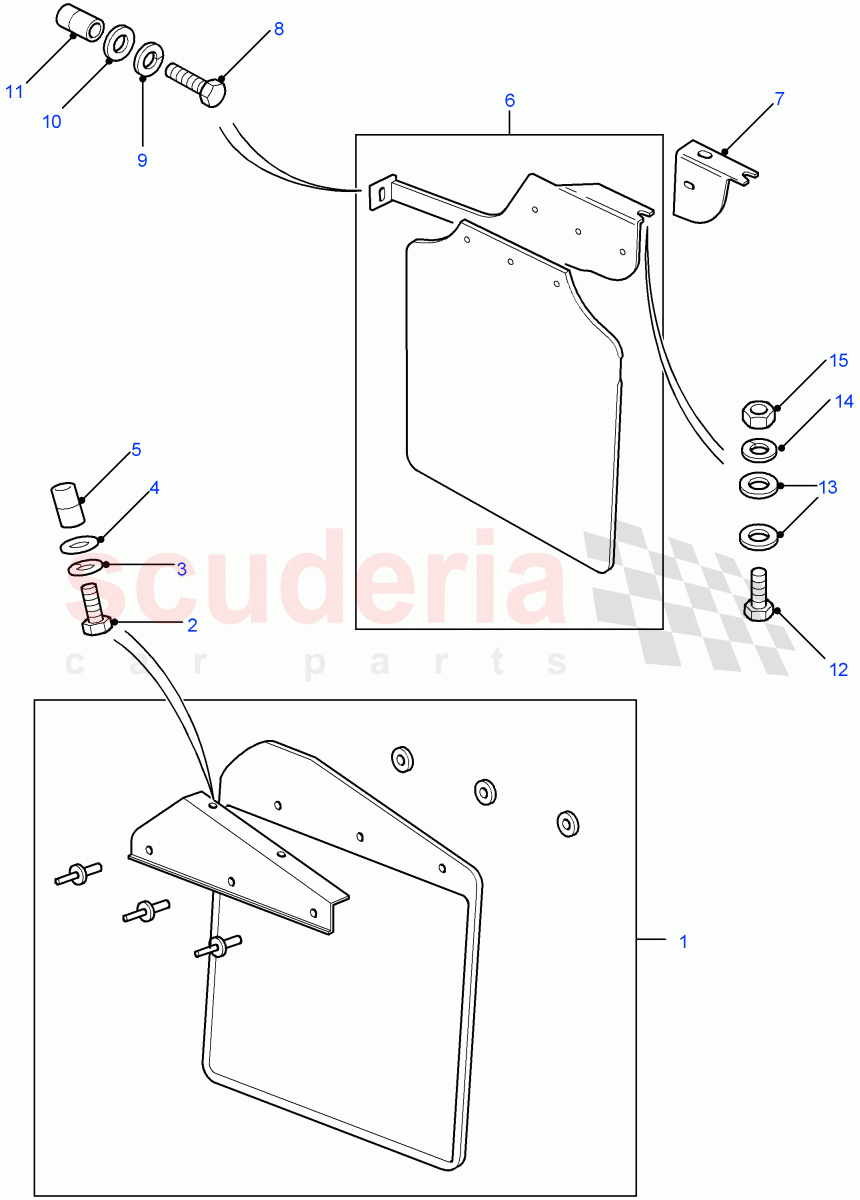

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	CAS500180PMA	MUDFLAP	Enquire	To Order
	CAS500190PMA	MUDFLAP	Enquire	To Order
	LR025438	MUDFLAP	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYF500060	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	VYH500030	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CAT500340PMA	MUDFLAP	Enquire	To Order
	CAT500360PMA	MUDFLAP	Enquire	To Order
	CAT500350PMA	MUDFLAP	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CAX000220	BRACKET	Enquire	To Order
	CAX000230	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AWR6715	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106167L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	CAS500180PMA	MUDFLAP	CAS500180PMA MUDFLAP RH, With Bracket / To: AA792970	-	1	Enquire
1	CAS500190PMA	MUDFLAP	CAS500190PMA MUDFLAP LH, With Bracket / To: AA792970	-	1	Enquire
1	LR025438	MUDFLAP	LR025438 MUDFLAP RH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
1	LR025783	MUDFLAP	LR025783 MUDFLAP LH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
1	LR032963	MUDFLAP	LR032963 MUDFLAP RH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
1	LR032964	MUDFLAP	LR032964 MUDFLAP LH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
1	LR055323	MUDFLAP	LR055323 MUDFLAP RH, With Bracket / From: DA440552	-	1	Enquire
1	LR055333	MUDFLAP	LR055333 MUDFLAP LH, With Bracket / From: DA440552	-	1	Enquire
2	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	4	Enquire
3	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	4	Enquire
4	VYF500060	WASHER	VYF500060 WASHER 6MM, Plain	-	4	Enquire
5	VYH500030	NUT - FLANGED	VYH500030 NUT - FLANGED M6	-	4	Enquire
6	CAT500340PMA	MUDFLAP	CAT500340PMA MUDFLAP 110" Wheelbase, Station Wagon - 5 Door / RH, With Bracket / To: AA792970	-	1	Enquire
6	CAT500360PMA	MUDFLAP	CAT500360PMA MUDFLAP 130" Wheelbase, Crew Cab HCPU / RH, With Bracket / To: AA792970	-	1	Enquire
6	CAT500350PMA	MUDFLAP	CAT500350PMA MUDFLAP 110" Wheelbase, Station Wagon - 5 Door / LH, With Bracket / To: AA792970	-	1	Enquire
6	CAT500370PMA	MUDFLAP	CAT500370PMA MUDFLAP 130" Wheelbase, Crew Cab HCPU / LH, With Bracket / To: AA792970	-	1	Enquire
6	LR025440	MUDFLAP	LR025440 MUDFLAP 110" Wheelbase, Soft Top / RH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
6	LR025441	MUDFLAP	LR025441 MUDFLAP 110" Wheelbase, High Capacity Pick Up / RH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
6	LR025785	MUDFLAP	LR025785 MUDFLAP 110" Wheelbase, High Capacity Pick Up / LH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
6	LR025784	MUDFLAP	LR025784 MUDFLAP 110" Wheelbase, Soft Top / LH, With Bracket / From: AA792971 / To: BA999999	-	1	Enquire
6	LR032965	MUDFLAP	LR032965 MUDFLAP 110" Wheelbase, Chassis Cab / RH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
6	LR032966	MUDFLAP	LR032966 MUDFLAP 110" Wheelbase, Chassis Cab / LH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
6	LR055331	MUDFLAP	LR055331 MUDFLAP 110" Wheelbase, High Capacity Pick Up / RH, With Bracket / From: DA440552	-	1	Enquire
6	LR032968	MUDFLAP	LR032968 MUDFLAP 110" Wheelbase, High Capacity Pick Up / LH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
6	LR055330	MUDFLAP	LR055330 MUDFLAP 130" Wheelbase, Chassis Crew Cab / RH, With Bracket / From: DA440552	-	1	Enquire
6	LR055334	MUDFLAP	LR055334 MUDFLAP 130" Wheelbase, Chassis Crew Cab / LH, With Bracket / From: DA440552	-	1	Enquire
6	LR032967	MUDFLAP	LR032967 MUDFLAP 110" Wheelbase, High Capacity Pick Up / RH, With Bracket / From: CA000001 / To: DA440551	-	1	Enquire
6	LR055339	MUDFLAP	LR055339 MUDFLAP 110" Wheelbase, High Capacity Pick Up / LH, With Bracket / From: DA440552	-	1	Enquire
7	CAX000220	BRACKET	CAX000220 BRACKET With High Capacity Tailgate / RH, Rear	-	1	Enquire
7	CAX000230	BRACKET	CAX000230 BRACKET With High Capacity Tailgate / LH, Rear	-	1	Enquire
8	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	2	Enquire
9	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	2	Enquire
10	WA106042	RESTRICTOR	WA106042 RESTRICTOR 6MM, Plain	-	2	Enquire
11	AWR6715	NUT - SPECIAL	AWR6715 NUT - SPECIAL M6	-	2	Enquire
12	FS106167L	SCREW	FS106167L SCREW Flanged Head, M6 X 16MM	-	4	Enquire
13	WA108056	WASHER	WA108056 WASHER 8MM	-	8	Enquire
14	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	4	Enquire
15	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc	-	6	Enquire
