Splash And Heat Shields (Front Section) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Splash And Heat Shields (Front Section)

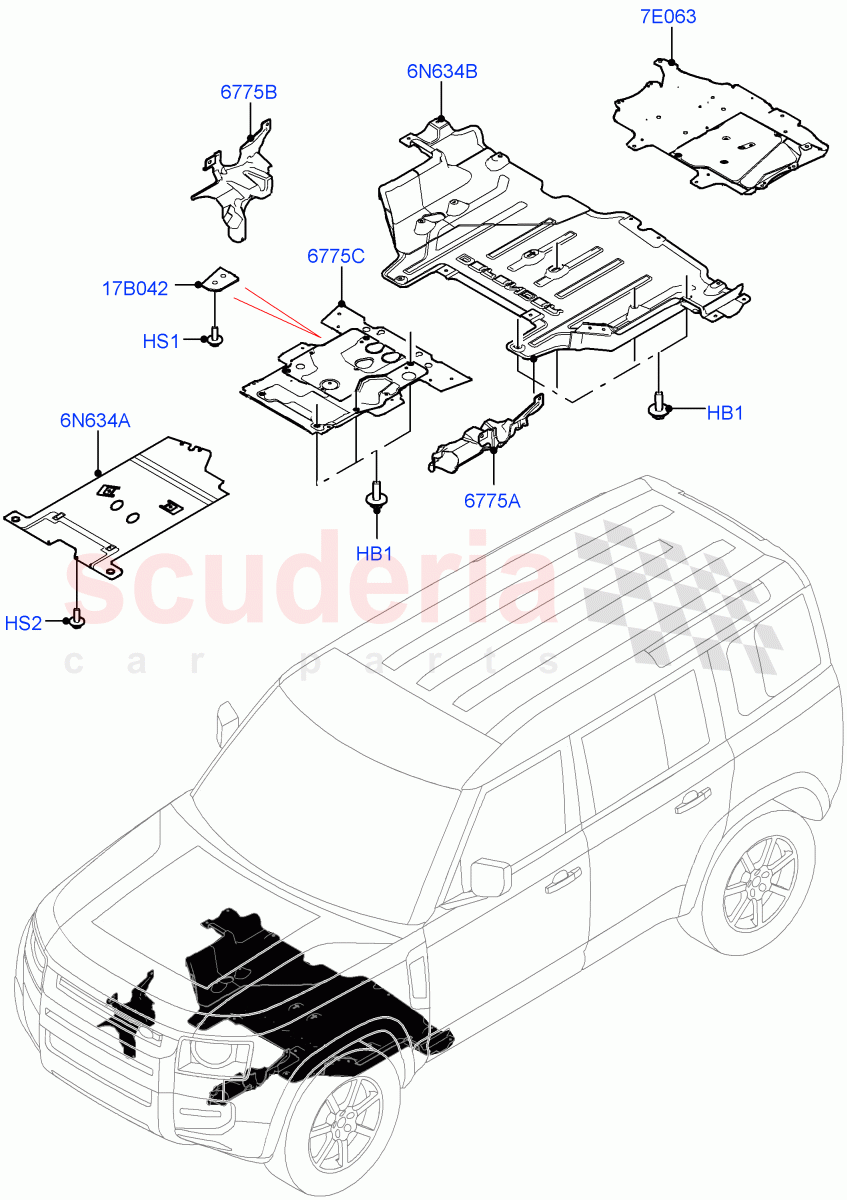

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	Enquire	To Order
	LR009266	BOLT M6 X 24	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160734	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133075	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133074	SHIELD - SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130121	SHIELD - ENGINE COMPARTMENT SPLASH	Enquire	To Order
	LR146252	SHIELD - ENGINE COMPARTMENT SPLASH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129028	SHIELD - TRANSMISSION	Enquire	To Order
	LR129022	SHIELD - TRANSMISSION	Enquire	To Order
	LR129022	SHIELD - TRANSMISSION	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR149522	PAD - JACKING LOCATION	Enquire	To Order
	LR149523	PAD - JACKING LOCATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139444	SHIELD - ENGINE NOISE	Enquire	To Order
	LR141823	SHIELD - ENGINE NOISE	Enquire	To Order
	LR154003	SHIELD - ENGINE NOISE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129989	SHIELD - SPLASH	Enquire	To Order
	LR144617	SHIELD - SPLASH	Enquire	To Order
	LR159622	SHIELD - SPLASH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Hexagonal Head, Lower, M6 X 24MM, Middle - Front	-	6	Enquire
HB1	LR009266	BOLT M6 X 24	LR009266 BOLT M6 X 24 Bolt And Washer, Hexagonal Head, M6 X 24MM, Middle - Front	-	8	Enquire
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, Jacking Location Pad, M6X30	-	4	Enquire
HS2	LR160734	SCREW	LR160734 SCREW M6X18	-	2	Enquire
6N634A	LR139444	SHIELD - ENGINE NOISE	LR139444 SHIELD - ENGINE NOISE Lower Front, Middle - Front / To: L2019523	-	1	Enquire
6N634A	LR141823	SHIELD - ENGINE NOISE	LR141823 SHIELD - ENGINE NOISE 3.0L AJ20D6 Diesel High / Lower Front, Middle - Front / From: M2000001	-	1	Enquire
6N634A	LR154003	SHIELD - ENGINE NOISE	LR154003 SHIELD - ENGINE NOISE 5.0 Petrol AJ133 DOHC CDA / Lower Front, Middle - Front / From: M2000001	-	1	Enquire
6N634A	LR141823	SHIELD - ENGINE NOISE	LR141823 SHIELD - ENGINE NOISE Lower Front, Middle - Front / From: L2019524 / To: L2999999	-	1	Enquire
6N634B	LR129989	SHIELD - SPLASH	LR129989 SHIELD - SPLASH Centre / To: L2018628	-	1	Enquire
6N634B	LR144617	SHIELD - SPLASH	LR144617 SHIELD - SPLASH Centre / From: L2018629 / To: L2999999	-	1	Enquire
6N634B	LR159622	SHIELD - SPLASH	LR159622 SHIELD - SPLASH 2.0L I4 DSL HIGH DOHC AJ200 / Centre / From: M2000001	-	1	Enquire
6N634B	LR153680	SHIELD - SPLASH	LR153680 SHIELD - SPLASH 5.0 Petrol AJ133 DOHC CDA / Centre / From: M2000001	-	1	Enquire
7E063	LR129028	SHIELD - TRANSMISSION	LR129028 SHIELD - TRANSMISSION With Noise Insulation Pack / To: L2007503	-	1	Enquire
7E063	LR129022	SHIELD - TRANSMISSION	LR129022 SHIELD - TRANSMISSION With Noise Insulation Pack Premium / To: L2007503	-	1	Enquire
7E063	LR129022	SHIELD - TRANSMISSION	LR129022 SHIELD - TRANSMISSION From: L2007504 / To: L2999999	-	1	Enquire
7E063	LR129022	SHIELD - TRANSMISSION	LR129022 SHIELD - TRANSMISSION 2.0L I4 DSL HIGH DOHC AJ200 / From: M2000001	-	1	Enquire
7E063	LR153900	SHIELD - TRANSMISSION	LR153900 SHIELD - TRANSMISSION 5.0 Petrol AJ133 DOHC CDA / From: M2000001	-	1	Enquire
17B042	LR149522	PAD - JACKING LOCATION	LR149522 PAD - JACKING LOCATION RH	-	1	Enquire
17B042	LR149523	PAD - JACKING LOCATION	LR149523 PAD - JACKING LOCATION LH	-	1	Enquire
6775A	LR133075	SHIELD - SPLASH	LR133075 SHIELD - SPLASH LH	-	1	Enquire
6775B	LR133074	SHIELD - SPLASH	LR133074 SHIELD - SPLASH RH	-	1	Enquire
6775C	LR130121	SHIELD - ENGINE COMPARTMENT SPLASH	LR130121 SHIELD - ENGINE COMPARTMENT SPLASH Middle - Front / To: L2013765	-	1	Enquire
6775C	LR146252	SHIELD - ENGINE COMPARTMENT SPLASH	LR146252 SHIELD - ENGINE COMPARTMENT SPLASH Middle - Front / From: L2013766	-	1	Enquire
