Name: Dash Panel And Front Fenders
Rating: 4.5 (1 reviews)

Dash Panel And Front Fenders of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

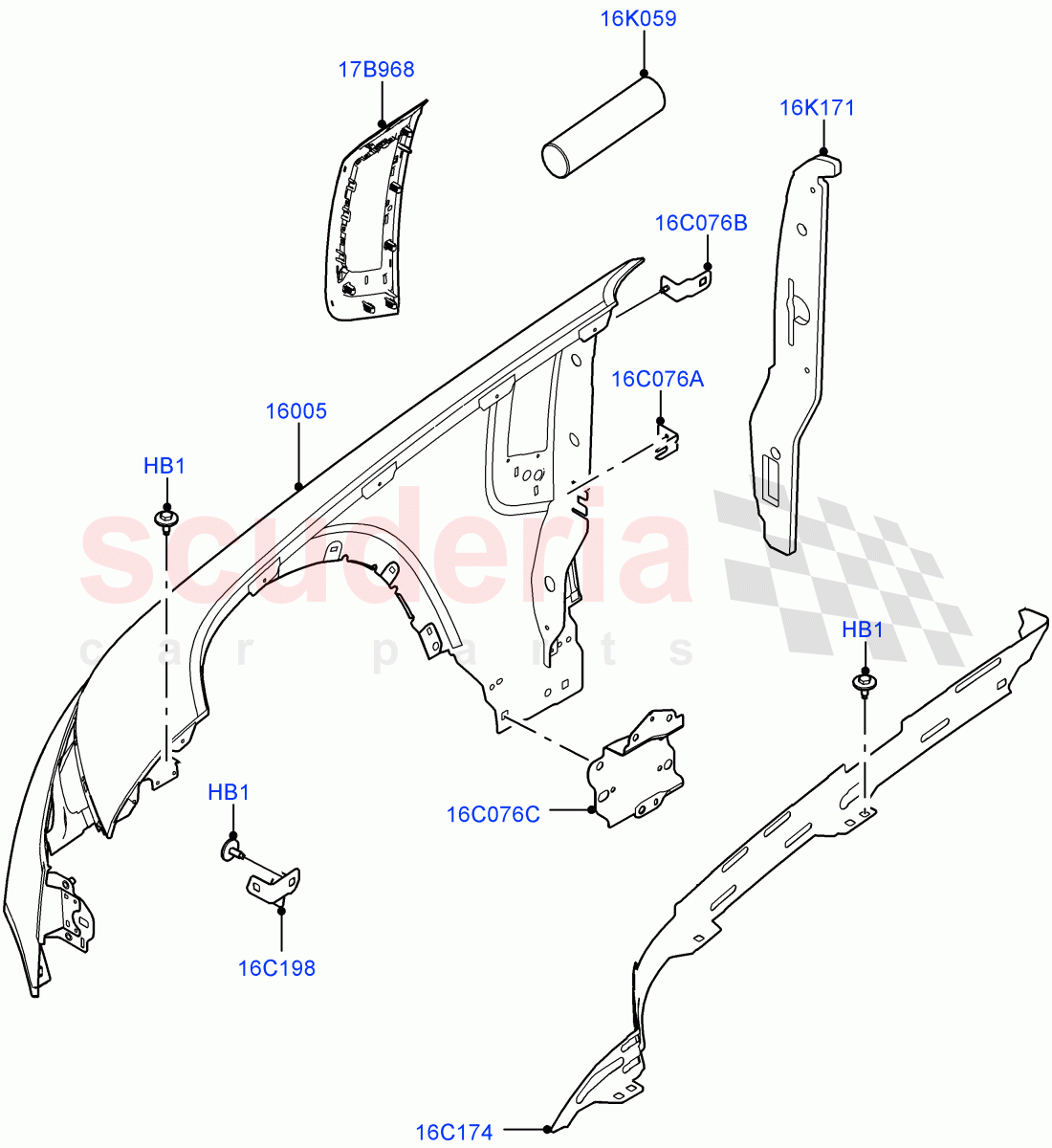

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Dash Panel And Front Fenders

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR131406	BOLT	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR131386	FENDER - FRONT	$612.76	To Order
	LR131387	FENDER - FRONT	$612.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131595	BRACKET - FENDER MOUNTING	$138.38	To Order
	LR131596	BRACKET - FENDER MOUNTING	$138.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131396	BRACKET - FENDER - FRONT	$53.55	To Order
	LR131397	BRACKET - FENDER - FRONT	$58.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137463	INSULATOR	$57.92	To Order
	LR137463	INSULATOR	$57.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR136983	INSULATOR - FENDER APRON	$243.16	To Order
	LR136982	INSULATOR - FENDER APRON	$486.36	To Order
	LR140330	INSULATOR - FENDER APRON	$97.26	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131608	GRILLE - FENDER - FRONT	$143.87	To Order
	LR131609	GRILLE - FENDER - FRONT	$143.87	To Order
	LR146278	GRILLE - FENDER - FRONT	$143.87	IN STOCK

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131343	BRACKET - FENDER MOUNTING	$12.55	To Order
	LR131345	BRACKET - FENDER MOUNTING	$12.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131349	BRACKET - FENDER MOUNTING	$56.39	To Order
	LR131351	BRACKET - FENDER MOUNTING	$56.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132202	BRACKET - FENDER MOUNTING	$205.83	To Order
	LR132203	BRACKET - FENDER MOUNTING	$205.83	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR131406	BOLT IN STOCK	LR131406 BOLT Bolt And Washer, M6 X 16MM IN STOCK	$1.11	18
16C076A	LR131343	BRACKET - FENDER MOUNTING	LR131343 BRACKET - FENDER MOUNTING RH, Middle, Rear	$12.55	1
16C076A	LR131345	BRACKET - FENDER MOUNTING	LR131345 BRACKET - FENDER MOUNTING LH, Middle, Rear	$12.55	1
16C076B	LR131349	BRACKET - FENDER MOUNTING	LR131349 BRACKET - FENDER MOUNTING RH, Rear, Upper	$56.39	1
16C076B	LR131351	BRACKET - FENDER MOUNTING	LR131351 BRACKET - FENDER MOUNTING LH, Rear, Upper	$56.39	1
16C076C	LR132202	BRACKET - FENDER MOUNTING	LR132202 BRACKET - FENDER MOUNTING RH, Category A, Lower, Rear	$205.83	1
16C076C	LR132203	BRACKET - FENDER MOUNTING	LR132203 BRACKET - FENDER MOUNTING LH, Category A, Lower, Rear	$205.83	1
16C174	LR131595	BRACKET - FENDER MOUNTING	LR131595 BRACKET - FENDER MOUNTING RH, Extension, Mounts On Fender	$138.38	1
16C174	LR131596	BRACKET - FENDER MOUNTING	LR131596 BRACKET - FENDER MOUNTING LH, Extension, Mounts On Fender	$138.38	1
16C198	LR131396	BRACKET - FENDER - FRONT	LR131396 BRACKET - FENDER - FRONT RH, Front, Upper	$53.55	1
16C198	LR131397	BRACKET - FENDER - FRONT	LR131397 BRACKET - FENDER - FRONT LH, Front, Upper	$58.39	1
16K059	LR137463	INSULATOR	LR137463 INSULATOR Pad, RH/LH / To: L2999999	$57.92	2
16K059	LR137463	INSULATOR	LR137463 INSULATOR 2.0L AJ200P Hi PHEV / Pad, RH/LH / From: M2000001	$57.92	2
16K171	LR136983	INSULATOR - FENDER APRON	LR136983 INSULATOR - FENDER APRON RH / To: L2005689	$243.16	1
16K171	LR136982	INSULATOR - FENDER APRON	LR136982 INSULATOR - FENDER APRON LH / To: L2006525	$486.36	1
16K171	LR140330	INSULATOR - FENDER APRON	LR140330 INSULATOR - FENDER APRON 2.0L AJ200P Hi PHEV / RH / From: L2005690	$97.26	1
16K171	LR140331	INSULATOR - FENDER APRON	LR140331 INSULATOR - FENDER APRON LH / From: L2006526	$97.26	1
16K171	LR153671	INSULATOR - FENDER APRON	LR153671 INSULATOR - FENDER APRON 5.0 Petrol AJ133 DOHC CDA / RH / From: M2000001	$40.95	1
17B968	LR131608	GRILLE - FENDER - FRONT	LR131608 GRILLE - FENDER - FRONT RH / To: L2017359	$143.87	1
17B968	LR131609	GRILLE - FENDER - FRONT	LR131609 GRILLE - FENDER - FRONT LH / To: L2017359	$143.87	1
17B968	LR146278	GRILLE - FENDER - FRONT IN STOCK	LR146278 GRILLE - FENDER - FRONT LH / From: L2017360 / To: M2065456 IN STOCK	$143.87	1
17B968	LR146279	GRILLE - FENDER - FRONT	LR146279 GRILLE - FENDER - FRONT RH / From: L2017360 / To: M2065457	$143.87	1
17B968	LR146279	GRILLE - FENDER - FRONT	LR146279 GRILLE - FENDER - FRONT 3.0L AJ20D6 Diesel High, Frt Fender Gill-Gloss Black / RH / From: M2065457	$143.87	1
17B968	LR146278	GRILLE - FENDER - FRONT IN STOCK	LR146278 GRILLE - FENDER - FRONT Frt Fender Gill-Gloss Black / LH / From: M2065457 IN STOCK	$143.87	1
17B968	LR153308	GRILLE - FENDER - FRONT	LR153308 GRILLE - FENDER - FRONT 5.0 Petrol AJ133 DOHC CDA, Frt Fender Gill-Gloss Black / RH / From: M2065457	$138.77	1
17B968	LR157852	GRILLE - FENDER - FRONT	LR157852 GRILLE - FENDER - FRONT Side Vents - Inga Silver / RH / From: M2065457	$158.37	1
17B968	LR157851	GRILLE - FENDER - FRONT	LR157851 GRILLE - FENDER - FRONT Side Vents - Inga Silver / LH / From: M2065457	$143.87	1
16005	LR131386	FENDER - FRONT	LR131386 FENDER - FRONT RH	$612.76	1
16005	LR131387	FENDER - FRONT	LR131387 FENDER - FRONT LH	$612.76	1
