Front Door Lock Controls ((V) Fromp2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Front Door Lock Controls ((V) FROMP2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038526 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR124815 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR042467 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR083297 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR059989 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
LR131376 CAP - HANDLE Enquire To Order
LR139327 CAP - HANDLE Enquire To Order
LR131379 CAP - HANDLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR153684 LATCH - FRONT DOOR Enquire To Order
LR153686 LATCH - FRONT DOOR Enquire To Order
LR153687 LATCH - FRONT DOOR Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR086606 STRIKER - DOOR LOCKING MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
LR164092 HANDLE - DOOR - OUTER Enquire To Order
LR131357 HANDLE - DOOR - OUTER Enquire To Order
LR143315 HANDLE - DOOR - OUTER Enquire To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR131374 GASKET - DOOR HANDLE Enquire To Order
Photo Part No Description Price (each) Stock
LR041255 SHIELD - DOOR LOCK Enquire To Order
LR027324 SHIELD - DOOR LOCK Enquire To Order
Photo Part No Description Price (each) Stock
LR108185 REINFORCEMENT Enquire To Order
LR108199 REINFORCEMENT Enquire To Order
LR108184 REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
LR163882 CABLE - DOOR LATCH Enquire To Order
Photo Part No Description Price (each) Stock
LR163865 CABLE - DOOR LATCH Enquire To Order
LR163874 CABLE - DOOR LATCH Enquire To Order
LR163868 CABLE - DOOR LATCH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR163848 CABLE - DOOR LATCH Enquire To Order
LR163847 CABLE - DOOR LATCH Enquire To Order
View All

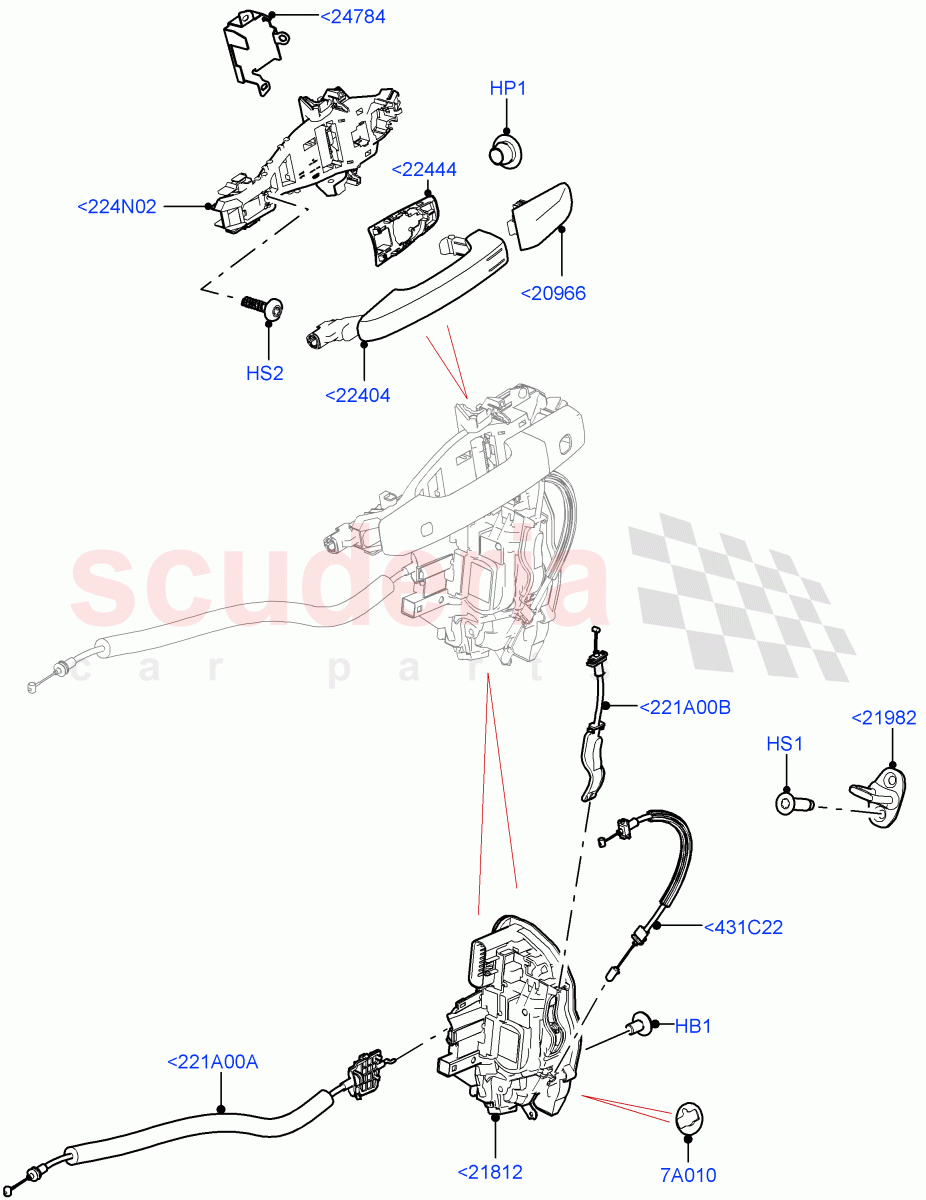

Front Door Lock Controls ((V) FROMP2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<221A00A LR163865
CABLE - DOOR LATCH
Short Wheelbase / RH / From: P2000001 		- 1 Enquire
<221A00A LR163874
CABLE - DOOR LATCH
Short Wheelbase / LH / From: P2000001 		- 1 Enquire
<221A00A LR163868
CABLE - DOOR LATCH
Long Wheelbase / RH / From: P2000001 		- 1 Enquire
<221A00A LR163871
CABLE - DOOR LATCH
Standard Wheelbase / LH / From: P2000001 		- 1 Enquire
<221A00B LR163848
CABLE - DOOR LATCH
Short Wheelbase / Driver Side / From: P2000001 		- 1 Enquire
<221A00B LR163847
CABLE - DOOR LATCH
Standard Wheelbase / Driver Side / From: P2000001 		- 1 Enquire
<224N02 LR108185
REINFORCEMENT
RHD / For Drivers Side, With Lock Barrel Aperture / From: P2000001 		- 1 Enquire
<224N02 LR108199
REINFORCEMENT
LHD / For Drivers Side, With Lock Barrel Aperture / From: P2000001 		- 1 Enquire
<224N02 LR108184
REINFORCEMENT
Less Lock Barrel Aperture, Passenger Side / From: P2000001 		- 1 Enquire
<431C22 LR163882
CABLE - DOOR LATCH
Outside Door Release Handle To Latch, RH/LH / From: P2000001 		- 2 Enquire
<20966 LR131376
CAP - HANDLE
With Keyless Start / Less Lock Barrel Aperture / From: P2000001 		- 1 Enquire
<20966 LR139327
CAP - HANDLE
Keyless Entry/Start - Passive / Less Lock Barrel Aperture, Primed / From: P2000001 		- 1 Enquire
<20966 LR131379
CAP - HANDLE
With Keyless Start / With Lock Barrel Aperture / From: P2000001 		- 1 Enquire
<20966 LR139328
CAP - HANDLE
Keyless Entry/Start - Passive / Primed, With Lock Barrel Aperture / From: P2000001 		- 1 Enquire
<21812 LR153684
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / RH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153686
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / RH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153687
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / RH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153696
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / RH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153717
LATCH - FRONT DOOR
Double Locking Power Lock Latch, LHD / LH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153718
LATCH - FRONT DOOR
Central Locking Power Lock Latch, LHD / LH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153719
LATCH - FRONT DOOR
Double Locking Power Lock Latch, RHD / LH, Inner / From: P2000001 		- 1 Enquire
<21812 LR153720
LATCH - FRONT DOOR
Central Locking Power Lock Latch, RHD / LH, Inner / From: P2000001 		- 1 Enquire
<21982 LR086606
STRIKER - DOOR LOCKING MECHANISM
RH/LH / From: P2000001 		- 2 Enquire
<22404 LR164092
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Lantau Bronze (1DP) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131357
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Storm Grey/Carpathian Grey (1AU) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR143315
HANDLE - DOOR - OUTER
Hakuba Silver (1DU), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131359
HANDLE - DOOR - OUTER
Glacier White/Yulong White (1AQ), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131361
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Polaris White/Fuji White (1AA) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131362
HANDLE - DOOR - OUTER
Ebony Black/Narvik Black (1AT), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131363
HANDLE - DOOR - OUTER
Gondwana Stone Gloss (1DK), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131365
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Shifting Pangea (1DJ) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131366
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Nebelquell Blue (1DL) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR168659
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive / Primed, RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131367
HANDLE - DOOR - OUTER
Eiger Grey (1DF), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131368
HANDLE - DOOR - OUTER
Gallium/Silicon Silver (1BN), Keyless Entry/Start - Passive / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131369
HANDLE - DOOR - OUTER
Keyless Entry/Start - Passive, Ultimate Black/Santorini Black(1AG) / RH/LH / From: P2000001 		- 2 Enquire
<22404 LR131371
HANDLE - DOOR - OUTER
With Keyless Start / Primer, RH/LH / From: P2000001 		- 2 Enquire
<22444 LR131374
GASKET - DOOR HANDLE
RH/LH / From: P2000001 		- 2 Enquire
<24784 LR041255
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, RHD, With Keyless Start / RH / From: P2000001 		- 1 Enquire
<24784 LR027324
SHIELD - DOOR LOCK
Double Locking Power Lock Latch, LHD, With Keyless Start / LH / From: P2000001 		- 1 Enquire
HB1 LR038526
BOLT
M6 X 11MM / From: P2000001 		- 6 Enquire
HP1 LR124815
PLUG - BLANKING
M11 X 0.7 - 4, RH/LH / From: P2000001 		- 2 Enquire
HS1 LR042467
BOLT
M8 X 25MM / From: P2000001 		- 4 Enquire
HS2 LR083297
SCREW
M5 x 22MM / From: P2000001 		- 2 Enquire
7A010 LR059989
PLUG - BLANKING
From: P2000001 		- 2 Enquire
