Side Panels - Inner (Wheelarch) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Side Panels - Inner (Wheelarch)

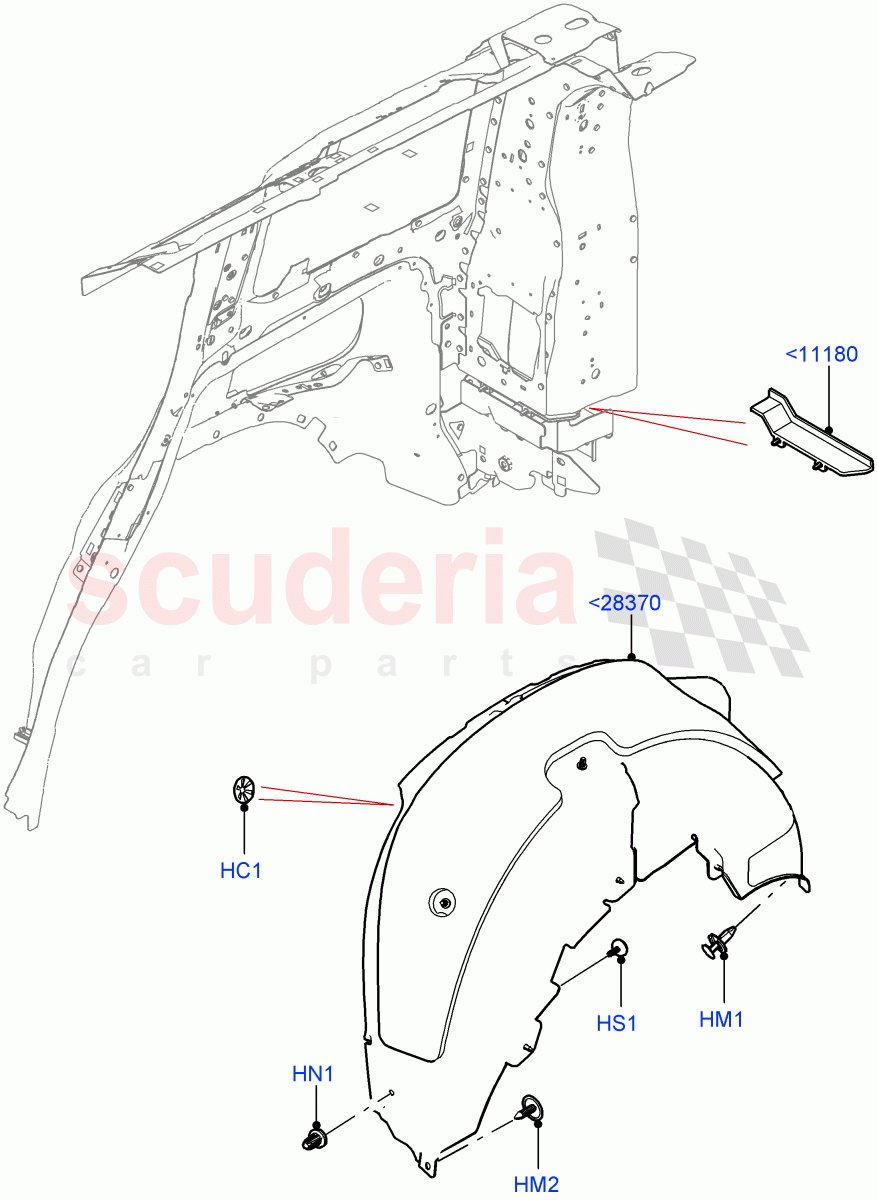

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR108386	CLIP - PUSH ON STEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR2224	HARDWARE - MISCELLANEOUS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	HYQ100060PUY	FASTENER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500840	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR106494	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137703	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR137704	INSULATOR - QUARTER PANEL	Enquire	To Order
	LR143608	INSULATOR - QUARTER PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129813	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR129814	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order
	LR129816	SHIELD - SPLASH - WHEELHOUSE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<11180	LR137703	INSULATOR - QUARTER PANEL	LR137703 INSULATOR - QUARTER PANEL RH / To: L2019629	-	1	Enquire
<11180	LR137704	INSULATOR - QUARTER PANEL	LR137704 INSULATOR - QUARTER PANEL LH / To: L2019629	-	1	Enquire
<11180	LR143608	INSULATOR - QUARTER PANEL	LR143608 INSULATOR - QUARTER PANEL Standard Wheelbase / LH / From: L2019630	-	1	Enquire
<11180	LR147932	INSULATOR - QUARTER PANEL	LR147932 INSULATOR - QUARTER PANEL RH / From: L2019630	-	1	Enquire
<28370	LR129813	SHIELD - SPLASH - WHEELHOUSE	LR129813 SHIELD - SPLASH - WHEELHOUSE Standard Wheelbase / RH / To: L2025282	-	1	Enquire
<28370	LR129814	SHIELD - SPLASH - WHEELHOUSE	LR129814 SHIELD - SPLASH - WHEELHOUSE Standard Wheelbase / LH / To: L2025282	-	1	Enquire
<28370	LR129816	SHIELD - SPLASH - WHEELHOUSE	LR129816 SHIELD - SPLASH - WHEELHOUSE Short Wheelbase / RH / To: M2037446	-	1	Enquire
<28370	LR129817	SHIELD - SPLASH - WHEELHOUSE	LR129817 SHIELD - SPLASH - WHEELHOUSE Short Wheelbase / LH / To: M2037446	-	1	Enquire
<28370	LR147002	SHIELD - SPLASH - WHEELHOUSE	LR147002 SHIELD - SPLASH - WHEELHOUSE Standard Wheelbase / RH / From: L2025283	-	1	Enquire
<28370	LR146649	SHIELD - SPLASH - WHEELHOUSE	LR146649 SHIELD - SPLASH - WHEELHOUSE Short Wheelbase / RH / From: M2037447	-	1	Enquire
<28370	LR147003	SHIELD - SPLASH - WHEELHOUSE	LR147003 SHIELD - SPLASH - WHEELHOUSE Standard Wheelbase / LH / From: L2025283	-	1	Enquire
<28370	LR146651	SHIELD - SPLASH - WHEELHOUSE	LR146651 SHIELD - SPLASH - WHEELHOUSE Short Wheelbase / LH / From: M2037447	-	1	Enquire
HC1	LR108386	CLIP - PUSH ON STEEL	LR108386 CLIP - PUSH ON STEEL M6, Wheelhouse	-	6	Enquire
HM1	ANR2224	HARDWARE - MISCELLANEOUS	ANR2224 HARDWARE - MISCELLANEOUS 8 X 20MM, Pin, Wheelhouse	-	12	Enquire
HM2	HYQ100060PUY	FASTENER	HYQ100060PUY FASTENER Rivet	-	2	Enquire
HN1	RYH500840	NUT	RYH500840 NUT M4, Plastic Nut, Wheelhouse	-	6	Enquire
HS1	LR106494	SCREW	LR106494 SCREW M5 x 19MM, Self Tapping, Wheelhouse	-	6	Enquire
