Fuel Tank Filler Door And Controls of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Fuel Tank Filler Door And Controls

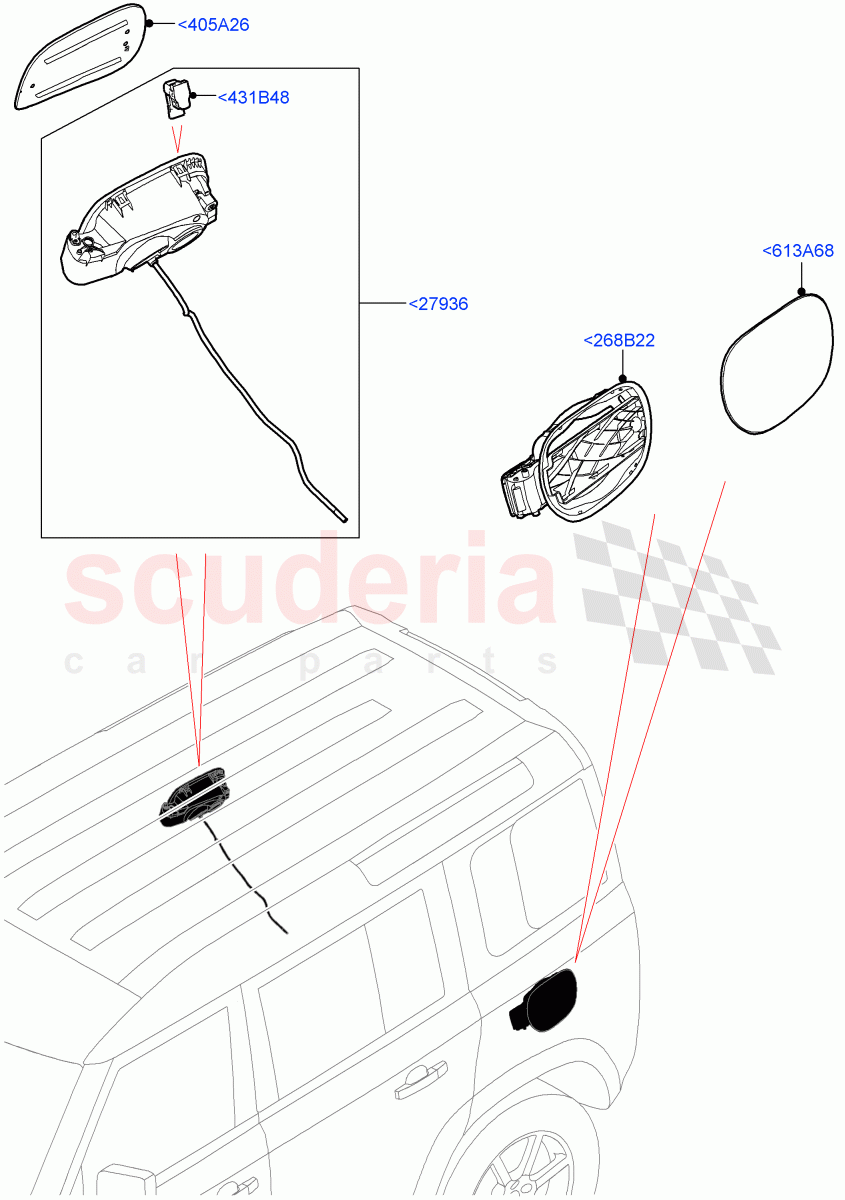

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR129819	HOUSING - FUEL TANK FILLER PIPE	Enquire	To Order
	LR129820	HOUSING - FUEL TANK FILLER PIPE	Enquire	To Order
	LR129821	HOUSING - FUEL TANK FILLER PIPE	Enquire	To Order

...and 14 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR132708	HOUSING - CHARGE PORT	Enquire	To Order
	LR132709	HOUSING - CHARGE PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132703	DOOR - FUEL TANK FILLER ACCESS	Enquire	To Order
	LR132704	DOOR - FUEL TANK FILLER ACCESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR162751	PUSH LOCK-FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132707	FLAP - CHARGING PORT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<268B22	LR132708	HOUSING - CHARGE PORT	LR132708 HOUSING - CHARGE PORT Double Charge Sckt AC/DC Type 1 Cmb	-	1	Enquire
<268B22	LR132709	HOUSING - CHARGE PORT	LR132709 HOUSING - CHARGE PORT Charge Socket GB/T AC + GB/T DC	-	1	Enquire
<405A26	LR132703	DOOR - FUEL TANK FILLER ACCESS	LR132703 DOOR - FUEL TANK FILLER ACCESS Standard Wheelbase	-	1	Enquire
<405A26	LR132704	DOOR - FUEL TANK FILLER ACCESS	LR132704 DOOR - FUEL TANK FILLER ACCESS Short Wheelbase	-	1	Enquire
<431B48	LR162751	PUSH LOCK-FUEL FILLER	LR162751 PUSH LOCK-FUEL FILLER Double Charge Sckt AC/DC Type 2 Cmb, Electric Engine Battery-PHEV, Short Wheelbase	-	1	Enquire
<613A68	LR132707	FLAP - CHARGING PORT	LR132707 FLAP - CHARGING PORT Double Charge Sckt AC/DC Type 1 Cmb	-	1	Enquire
<27936	LR129819	HOUSING - FUEL TANK FILLER PIPE	LR129819 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Emission Tank, Standard Wheelbase / To: L2999999	-	1	Enquire
<27936	LR129820	HOUSING - FUEL TANK FILLER PIPE	LR129820 HOUSING - FUEL TANK FILLER PIPE Less Emission Tank, Less Fuel Filler Flap Lock, Standard Wheelbase / To: L2999999	-	1	Enquire
<27936	LR129821	HOUSING - FUEL TANK FILLER PIPE	LR129821 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Standard Wheelbase, With Diesel Exh Fluid Emission Tank / To: L2999999	-	1	Enquire
<27936	LR129823	HOUSING - FUEL TANK FILLER PIPE	LR129823 HOUSING - FUEL TANK FILLER PIPE Less Fuel Filler Flap Lock, Standard Wheelbase, With Diesel Exh Fluid Emission Tank / To: L2999999	-	1	Enquire
<27936	LR129824	HOUSING - FUEL TANK FILLER PIPE	LR129824 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Emission Tank, Short Wheelbase / To: L2999999	-	1	Enquire
<27936	LR129826	HOUSING - FUEL TANK FILLER PIPE	LR129826 HOUSING - FUEL TANK FILLER PIPE Less Emission Tank, Less Fuel Filler Flap Lock, Short Wheelbase / To: L2999999	-	1	Enquire
<27936	LR129827	HOUSING - FUEL TANK FILLER PIPE	LR129827 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Short Wheelbase, With Diesel Exh Fluid Emission Tank / To: L2999999	-	1	Enquire
<27936	LR129828	HOUSING - FUEL TANK FILLER PIPE	LR129828 HOUSING - FUEL TANK FILLER PIPE Less Fuel Filler Flap Lock, Short Wheelbase, With Diesel Exh Fluid Emission Tank / To: L2999999	-	1	Enquire
<27936	LR143302	HOUSING - FUEL TANK FILLER PIPE	LR143302 HOUSING - FUEL TANK FILLER PIPE Double Charge Sckt AC/DC Type 1 Cmb, Electric Engine Battery-PHEV, Standard Wheelbase / From: M2000001	-	1	Enquire
<27936	LR129819	HOUSING - FUEL TANK FILLER PIPE	LR129819 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Electric Engine Battery, Less Emission Tank, Standard Wheelbase / From: M2000001	-	1	Enquire
<27936	LR129820	HOUSING - FUEL TANK FILLER PIPE	LR129820 HOUSING - FUEL TANK FILLER PIPE Less Electric Engine Battery, Less Emission Tank, Less Fuel Filler Flap Lock, Standard Wheelbase / From: M2000001	-	1	Enquire
<27936	LR129821	HOUSING - FUEL TANK FILLER PIPE	LR129821 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Electric Engine Battery, Standard Wheelbase, With Diesel Exh Fluid Emission Tank / From: M2000001	-	1	Enquire
<27936	LR129823	HOUSING - FUEL TANK FILLER PIPE	LR129823 HOUSING - FUEL TANK FILLER PIPE Less Electric Engine Battery, Less Fuel Filler Flap Lock, Standard Wheelbase, With Diesel Exh Fluid Emission Tank / From: M2000001	-	1	Enquire
<27936	LR129824	HOUSING - FUEL TANK FILLER PIPE	LR129824 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Electric Engine Battery, Less Emission Tank, Short Wheelbase / From: M2000001	-	1	Enquire
<27936	LR129826	HOUSING - FUEL TANK FILLER PIPE	LR129826 HOUSING - FUEL TANK FILLER PIPE Less Electric Engine Battery, Less Emission Tank, Less Fuel Filler Flap Lock, Short Wheelbase / From: M2000001	-	1	Enquire
<27936	LR129827	HOUSING - FUEL TANK FILLER PIPE	LR129827 HOUSING - FUEL TANK FILLER PIPE Fuel Filler Flap - Central Locking, Less Electric Engine Battery, Short Wheelbase, With Diesel Exh Fluid Emission Tank / From: M2000001	-	1	Enquire
<27936	LR129828	HOUSING - FUEL TANK FILLER PIPE	LR129828 HOUSING - FUEL TANK FILLER PIPE Less Electric Engine Battery, Less Fuel Filler Flap Lock, Short Wheelbase, With Diesel Exh Fluid Emission Tank / From: M2000001	-	1	Enquire
