Name: Rear Suspension Arms
Rating: 4.4 (1 reviews)

Rear Suspension Arms of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

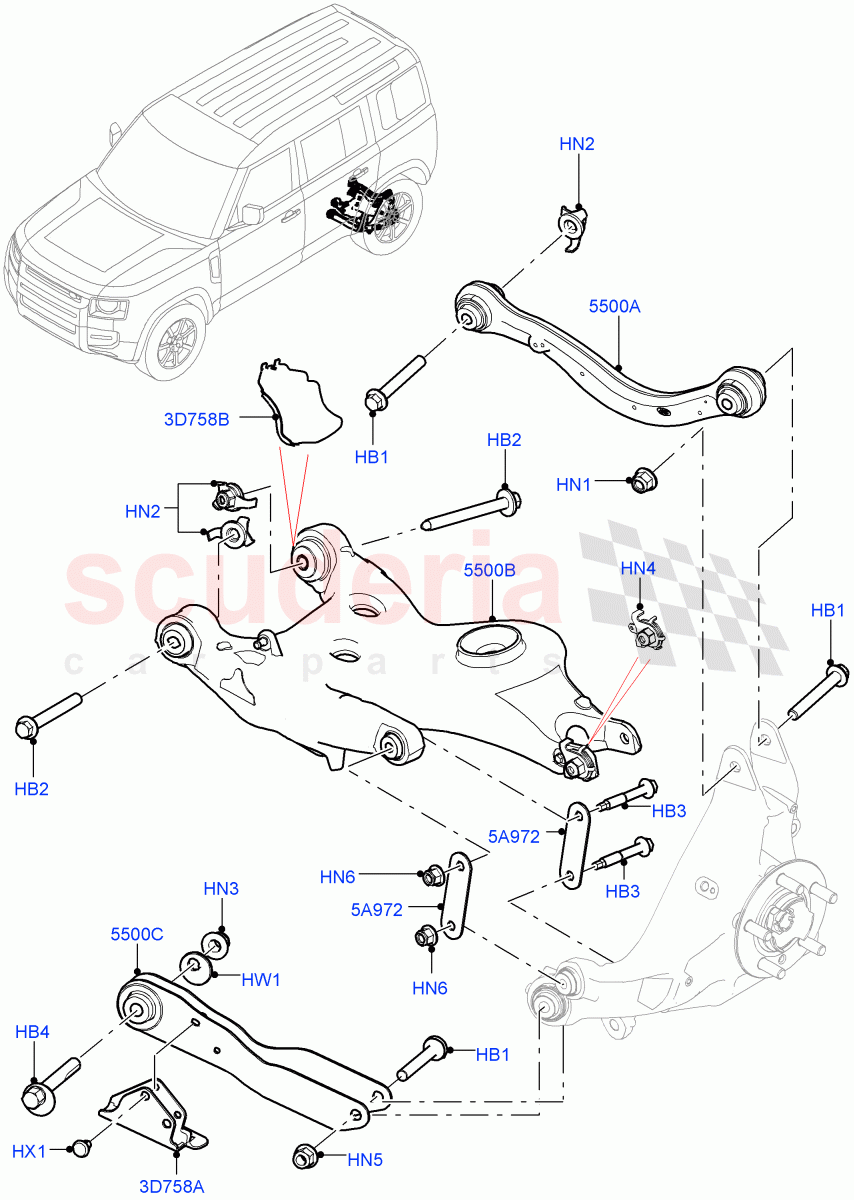

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Rear Suspension Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FC114206	BOLT	$7.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034230	BOLT	$9.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128651	BOLT	$4.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037704	BOLT	$17.57	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	$1.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	$3.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY116056	NUT	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161093	NUT	$1.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500530	NUT AND WASHER - HEX.	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500510	NUT - HEX.	$3.62	To Order

Photo	Part No	Description	Price (each)	Stock
	603123518	WASHER - ADJUSTING	$5.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071767	RIVET - PLASTIC	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139391	ARM - REAR SUSPENSION	$219.42	To Order
	LR161274	ARM - REAR SUSPENSION	$219.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133674	ARM - REAR SUSPENSION	$421.06	To Order
	LR133675	ARM - REAR SUSPENSION	$426.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128797	ARM - REAR SUSPENSION	$85.63	To Order
	LR128796	ARM - REAR SUSPENSION	$90.48	To Order
	LR128794	ARM - REAR SUSPENSION	$95.02	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR037691	LINK - SUSPENSION ARM	$9.17	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129075	COVER - SUSPENSION ARM	$15.71	To Order
	LR129088	COVER - SUSPENSION ARM	$15.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112632	HEAT SHIELD - SENSOR	$19.13	To Order
	LR112633	HEAT SHIELD - SENSOR	$20.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FC114206	BOLT IN STOCK	FC114206 BOLT Hexagonal Head, M14 x 100MM IN STOCK	$7.81	6
HB2	LR034230	BOLT	LR034230 BOLT Hexagonal Head, M14 x 120	$9.50	4
HB3	LR128651	BOLT	LR128651 BOLT Hexagonal Head, M12 x 70MM	$4.81	4
HB4	LR037704	BOLT	LR037704 BOLT Adjusting, Hexagonal Head, M16 X 111	$17.57	2
HN1	FY114056	NUT - HEX. IN STOCK	FY114056 NUT - HEX. Hexagonal Head, M14 IN STOCK	$1.20	2
HN2	LR034277	NUT IN STOCK	LR034277 NUT M14, Nut And Washer IN STOCK	$3.65	6
HN3	FY116056	NUT	FY116056 NUT Hex Nut Type, M16	$1.70	2
HN4	LR161093	NUT IN STOCK	LR161093 NUT Flag Type, M14 IN STOCK	$1.67	2
HN5	RYH500530	NUT AND WASHER - HEX.	RYH500530 NUT AND WASHER - HEX. Hexagonal Head, M14	$2.82	2
HN6	RYH500510	NUT - HEX.	RYH500510 NUT - HEX. M12, Nut And Washer	$3.62	4
HW1	603123518	WASHER - ADJUSTING	603123518 WASHER - ADJUSTING Adjusting	$5.29	2
HX1	LR071767	RIVET - PLASTIC	LR071767 RIVET - PLASTIC 7.8-9.1 x 4.5-10.5	$2.92	4
3D758A	LR129075	COVER - SUSPENSION ARM	LR129075 COVER - SUSPENSION ARM RH	$15.71	1
3D758A	LR129088	COVER - SUSPENSION ARM	LR129088 COVER - SUSPENSION ARM LH	$15.71	1
3D758B	LR112632	HEAT SHIELD - SENSOR	LR112632 HEAT SHIELD - SENSOR 2.0L I4 DSL HIGH DOHC AJ200 / RH	$19.13	1
3D758B	LR112633	HEAT SHIELD - SENSOR	LR112633 HEAT SHIELD - SENSOR 5.0 Petrol AJ133 DOHC CDA / RH / From: M2000001	$20.60	1
5A972	LR037691	LINK - SUSPENSION ARM	LR037691 LINK - SUSPENSION ARM Suspension Arm To Knuckle	$9.17	2
5500A	LR139391	ARM - REAR SUSPENSION	LR139391 ARM - REAR SUSPENSION RH/LH, Upper / To: N2066120	$219.42	2
5500A	LR161274	ARM - REAR SUSPENSION	LR161274 ARM - REAR SUSPENSION RH/LH, Upper / From: N2066121	$219.42	2
5500B	LR133674	ARM - REAR SUSPENSION	LR133674 ARM - REAR SUSPENSION LH, Lower	$421.06	1
5500B	LR133675	ARM - REAR SUSPENSION	LR133675 ARM - REAR SUSPENSION RH, Lower	$426.52	1
5500C	LR128797	ARM - REAR SUSPENSION	LR128797 ARM - REAR SUSPENSION Standard Wheelbase / LH, Front, Lower / To: N2074357	$85.63	1
5500C	LR128796	ARM - REAR SUSPENSION	LR128796 ARM - REAR SUSPENSION Standard Wheelbase / RH, Front, Lower / To: N2074357	$90.48	1
5500C	LR128794	ARM - REAR SUSPENSION	LR128794 ARM - REAR SUSPENSION Short Wheelbase / RH, Front, Lower / To: N2074357	$95.02	1
5500C	LR128795	ARM - REAR SUSPENSION	LR128795 ARM - REAR SUSPENSION Short Wheelbase / LH, Front, Lower / To: N2074357	$95.02	1
5500C	LR163128	ARM - REAR SUSPENSION	LR163128 ARM - REAR SUSPENSION Short Wheelbase / RH, Front, Lower / From: N2074358	$99.29	1
5500C	LR163134	ARM - REAR SUSPENSION	LR163134 ARM - REAR SUSPENSION Short Wheelbase / LH, Front, Lower / From: N2074358	$94.57	1
5500C	LR163135	ARM - REAR SUSPENSION	LR163135 ARM - REAR SUSPENSION Standard Wheelbase / LH, Front, Lower / From: N2074358	$89.48	1
5500C	LR163135	ARM - REAR SUSPENSION	LR163135 ARM - REAR SUSPENSION Long Wheelbase / LH, Front, Lower / From: P2000001	$89.48	1
5500C	LR163130	ARM - REAR SUSPENSION	LR163130 ARM - REAR SUSPENSION Standard Wheelbase / RH, Front, Lower / From: N2074358	$90.05	1
5500C	LR163130	ARM - REAR SUSPENSION	LR163130 ARM - REAR SUSPENSION Long Wheelbase / RH, Front, Lower / From: P2000001	$90.05	1
