Drive Shaft - Rear Axle Drive (Propshaft) (Standard Wheelbase, Long Wheelbase) ((V) Fromm2000001)

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Drive Shaft - Rear Axle Drive (Propshaft) (Standard Wheelbase, Long Wheelbase) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR092696 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR011068 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500270 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR143018 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
TYF500020 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR148061 SHAFT - REAR AXLE OUTER STUB Enquire To Order
LR141985 SHAFT - REAR AXLE OUTER STUB Enquire To Order
LR141984 SHAFT - REAR AXLE OUTER STUB Enquire To Order
Photo Part No Description Price (each) Stock
LR131706 BRACKET - DRIVESHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR154196 NUT - PROPSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR034506 KIT - "O" RING Enquire To Order
View All

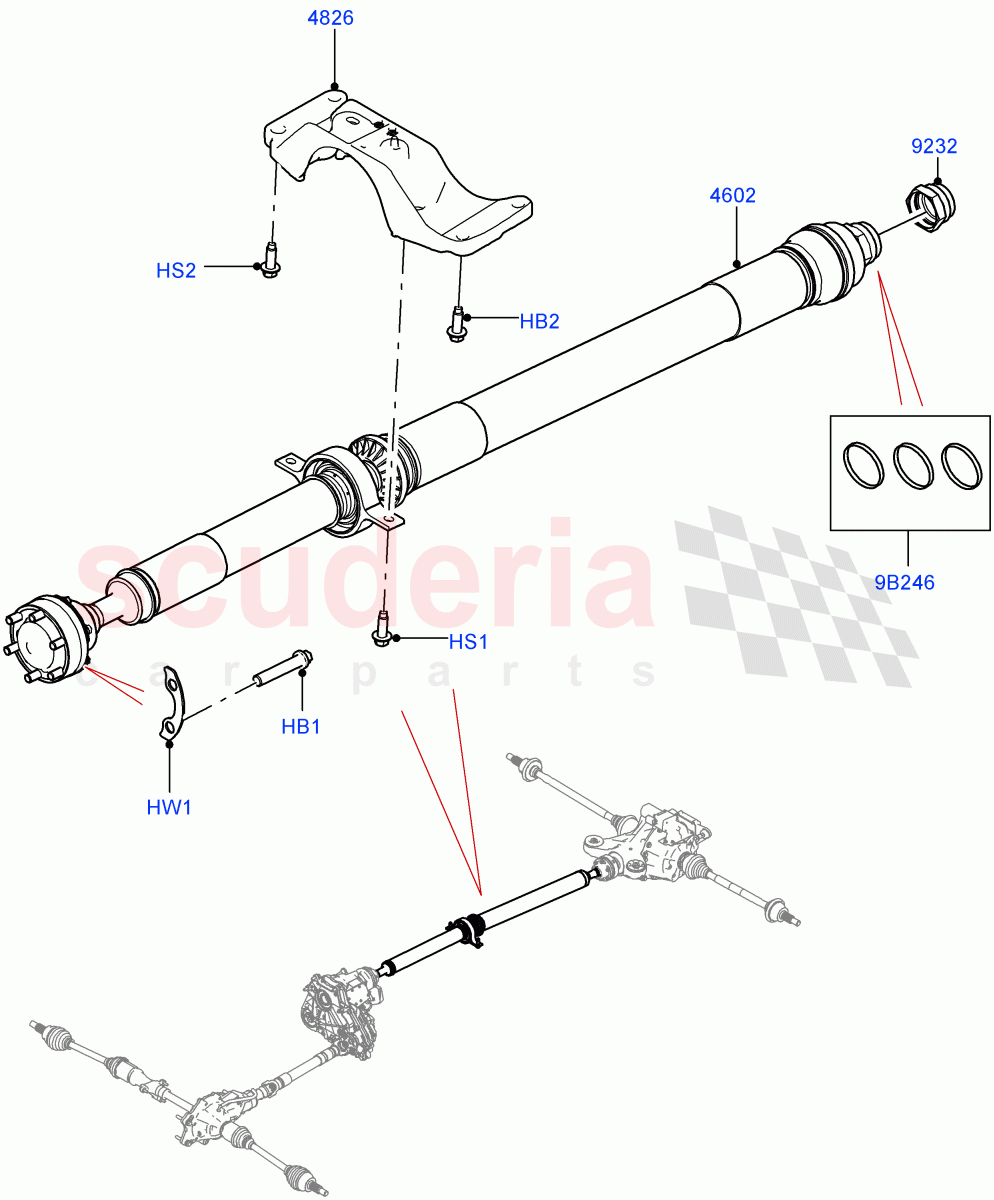

Drive Shaft - Rear Axle Drive (Propshaft) (Standard Wheelbase, Long Wheelbase) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR092696
BOLT
External Torx Head, M10 x 52MM / From: M2000001 		- 6 Enquire
HB2 LR011068
BOLT
Bolt And Washer, M10 X 45 / From: M2000001 		- 1 Enquire
HS1 RYG500270
SCREW
Hexagonal Head, M10 X 25MM / From: M2000001 		- 2 Enquire
HS2 LR143018
SCREW
Less Electric Engine Battery / M12 x 47 / From: M2000001 		- 1 Enquire
HW1 TYF500020
WASHER - SEALING
M10, Service Fit - Flange Type Propshaft Connection, Special Washer / From: M2000001 		- 3 Enquire
9B246 LR034506
KIT - "O" RING
3 Piece / From: M2000001 		- 1 Enquire
4602 LR148061
SHAFT - REAR AXLE OUTER STUB
5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase / From: M2000001 		- 1 Enquire
4602 LR141985
SHAFT - REAR AXLE OUTER STUB
3.0L AJ20D6 Diesel High / From: M2000001 		- 1 Enquire
4602 LR141984
SHAFT - REAR AXLE OUTER STUB
3.0L AJ20P6 Petrol High / From: M2000001 		- 1 Enquire
4826 LR131706
BRACKET - DRIVESHAFT
From: M2000001 		- 1 Enquire
9232 LR154196
NUT - PROPSHAFT
With O-Ring / From: M2000001 		- 1 Enquire
