Rear Cross Member & Stabilizer Bar (Stabilizer Bar) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Rear Cross Member & Stabilizer Bar (Stabilizer Bar)

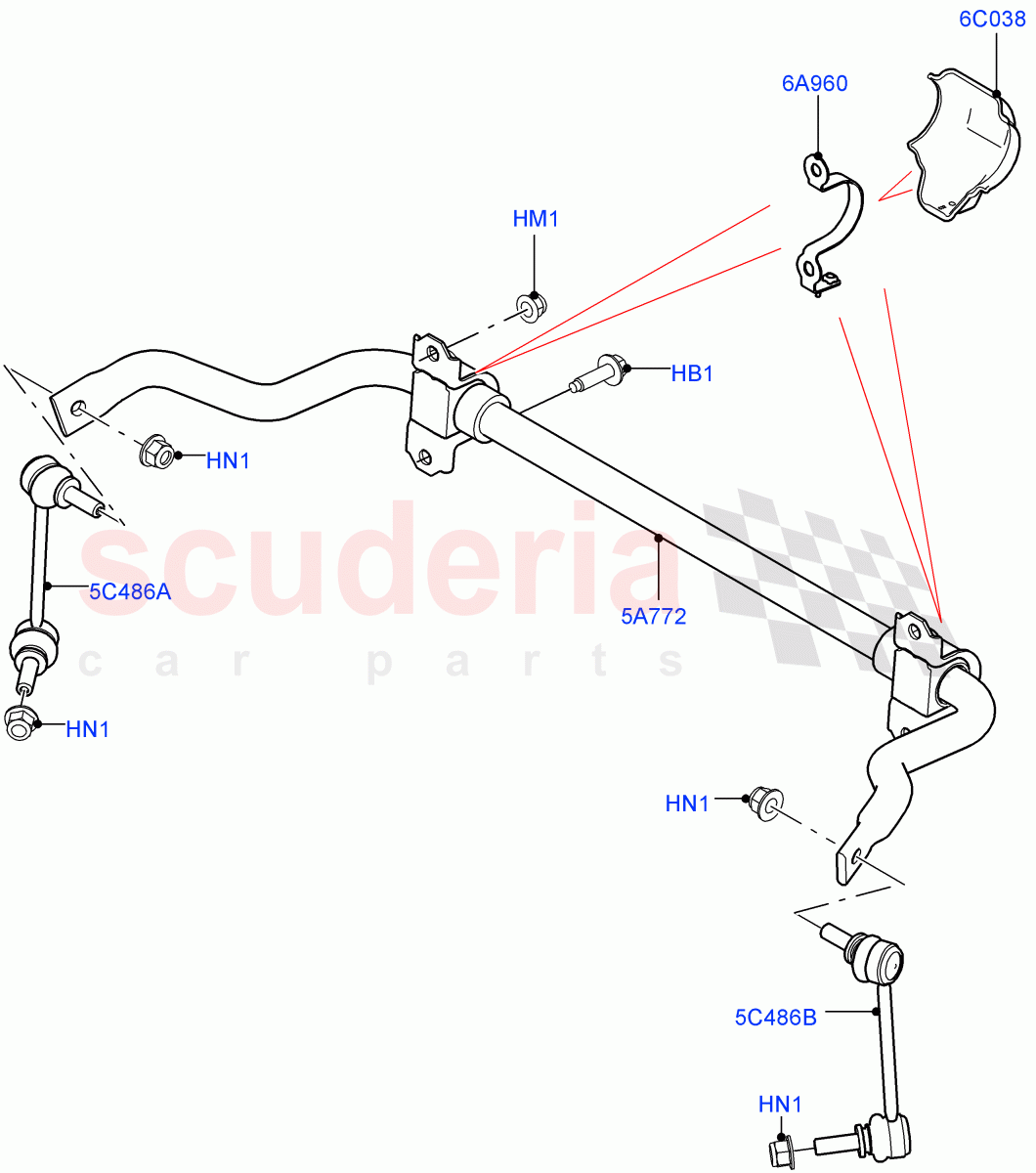

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033245	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY114056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132598	BAR - STABILIZER	Enquire	To Order
	LR132582	BAR - STABILIZER	Enquire	To Order
	LR133220	BAR - STABILIZER	Enquire	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR139067	BRACKET	Enquire	To Order
	LR144616	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139066	SHIELD - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048092	LINK - STABILIZER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048093	LINK - STABILIZER BAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033245	BOLT	LR033245 BOLT HEX Flange, M12 x 40MM	-	2	Enquire
HM1	FY112056	NUT - HEX.	FY112056 NUT - HEX. Hex Nut Type, M12	-	2	Enquire
HN1	FY114056	NUT - HEX.	FY114056 NUT - HEX. Hexagonal Head, M14	-	4	Enquire
5A772	LR132598	BAR - STABILIZER	LR132598 BAR - STABILIZER Front Spring Load Class-B, Standard Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR132582	BAR - STABILIZER	LR132582 BAR - STABILIZER Front Spring Load Class-C, Standard Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR133220	BAR - STABILIZER	LR133220 BAR - STABILIZER Front Spring Load Class-E, Standard Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR130583	BAR - STABILIZER	LR130583 BAR - STABILIZER Front Spring Load Class-A, Short Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR130588	BAR - STABILIZER	LR130588 BAR - STABILIZER Front Spring Load Class-B, Short Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR130590	BAR - STABILIZER	LR130590 BAR - STABILIZER Front Spring Load Class-C, Short Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR132599	BAR - STABILIZER	LR132599 BAR - STABILIZER Front Spring Load Class-D, Short Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps	-	1	Enquire
5A772	LR132582	BAR - STABILIZER	LR132582 BAR - STABILIZER Short Wheelbase, With Four Corner Air Suspension / Includes Insulators And Clamps / To: L2999999	-	1	Enquire
5A772	LR142079	BAR - STABILIZER	LR142079 BAR - STABILIZER Electric Engine Battery-PHEV, Standard Wheelbase, With Four Corner Air Suspension / Includes Insulators And Clamps	-	1	Enquire
5A772	LR132582	BAR - STABILIZER	LR132582 BAR - STABILIZER 2.0L I4 DSL HIGH DOHC AJ200, Short Wheelbase, With Four Corner Air Suspension / Includes Insulators And Clamps / From: M2000001	-	1	Enquire
5A772	LR142079	BAR - STABILIZER	LR142079 BAR - STABILIZER 5.0 Petrol AJ133 DOHC CDA, Short Wheelbase, With Four Corner Air Suspension / Includes Insulators And Clamps / From: M2000001	-	1	Enquire
5A772	LR153884	BAR - STABILIZER	LR153884 BAR - STABILIZER 5.0 Petrol AJ133 DOHC CDA, Standard Wheelbase, With Four Corner Air Suspension / Includes Insulators And Clamps / From: M2000001	-	1	Enquire
5A772	LR132599	BAR - STABILIZER	LR132599 BAR - STABILIZER Front Spring Load Class-A, Standard Wheelbase, With Standard Duty Coil Spring Susp / Includes Insulators And Clamps / From: M2000001	-	1	Enquire
5C486A	LR048092	LINK - STABILIZER BAR	LR048092 LINK - STABILIZER BAR RH	-	1	Enquire
5C486B	LR048093	LINK - STABILIZER BAR	LR048093 LINK - STABILIZER BAR LH	-	1	Enquire
6A960	LR139067	BRACKET	LR139067 BRACKET 3.0L AJ20P6 Petrol High / To: L2010597	-	2	Enquire
6A960	LR144616	BRACKET	LR144616 BRACKET 3.0L AJ20P6 Petrol High, Short Wheelbase / From: L2010598	-	2	Enquire
6C038	LR139066	SHIELD - REAR	LR139066 SHIELD - REAR 3.0L AJ20P6 Petrol High	-	2	Enquire
