Air Suspension Compressor And Lines (Short Wheelbase, With Four Corner Air Suspension) of Land Rover Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol]

View All

Land Rover Defender (2020+) [5.0 OHC SGDI SC V8 Petrol] - Air Suspension Compressor And Lines (Short Wheelbase, With Four Corner Air Suspension)

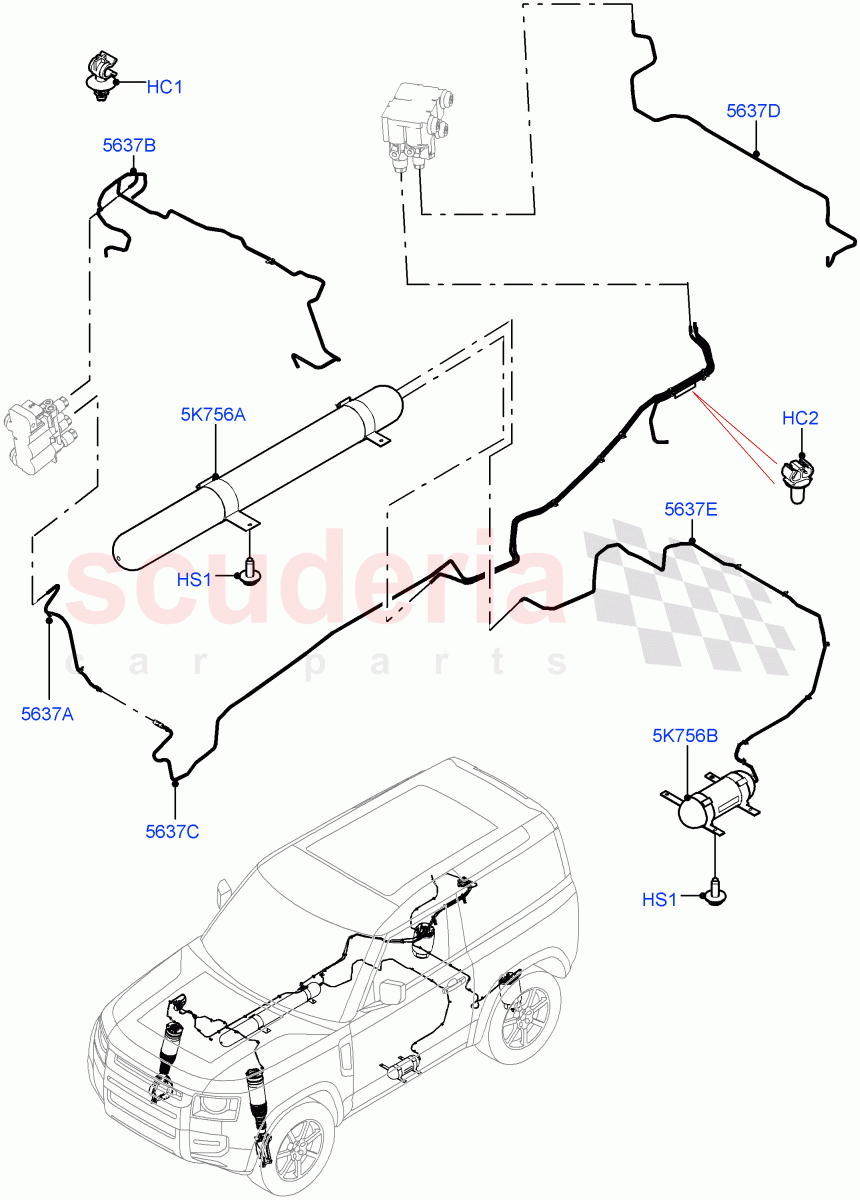

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037084	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037085	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149652	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129131	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129135	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129137	TUBE - AIR SUSPENSION	Enquire	To Order
	LR146819	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129145	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132032	TUBE - AIR SUSPENSION	Enquire	To Order
	LR146825	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129150	TANK - AIR SUSPENSION	Enquire	To Order
	LR166463	TANK - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129149	TANK - AIR SUSPENSION	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HC1	LR037084	CLIP - HOSE	LR037084 CLIP - HOSE 6MM, Single	-	-	Enquire
HC2	LR037085	CLIP - DOUBLE	LR037085 CLIP - DOUBLE 6MM, Double	-	2	Enquire
HS1	LR149652	SCREW AND WASHER	LR149652 SCREW AND WASHER M8 X 22MM	-	8	Enquire
5K756A	LR129150	TANK - AIR SUSPENSION	LR129150 TANK - AIR SUSPENSION RH, Long / To: N2999999	-	1	Enquire
5K756A	LR166463	TANK - AIR SUSPENSION	LR166463 TANK - AIR SUSPENSION RH, Long / From: P2000001	-	1	Enquire
5K756B	LR129149	TANK - AIR SUSPENSION	LR129149 TANK - AIR SUSPENSION LH, Short	-	1	Enquire
5637A	LR129131	TUBE - AIR SUSPENSION	LR129131 TUBE - AIR SUSPENSION Rear Axle Valve To Front Axle Valve	-	1	Enquire
5637B	LR129135	TUBE - AIR SUSPENSION	LR129135 TUBE - AIR SUSPENSION Axle Valve To Front LH Spring, Axle Valve To Front RH Spring, Set Of 2 Pieces	-	1	Enquire
5637C	LR129137	TUBE - AIR SUSPENSION	LR129137 TUBE - AIR SUSPENSION Axle Valve To Rear RH Spring, Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 3 Pieces / To: M2034808	-	1	Enquire
5637C	LR146819	TUBE - AIR SUSPENSION	LR146819 TUBE - AIR SUSPENSION Axle Valve To Rear RH Spring, Axle Valve To Reservoir Tank, Rear Axle Valve To Front Axle Valve, Set Of 3 Pieces / From: M2034809	-	1	Enquire
5637D	LR129145	TUBE - AIR SUSPENSION	LR129145 TUBE - AIR SUSPENSION Axle Valve To Rear LH Spring	-	1	Enquire
5637E	LR132032	TUBE - AIR SUSPENSION	LR132032 TUBE - AIR SUSPENSION Air Tanks Connection / To: M2034808	-	1	Enquire
5637E	LR146825	TUBE - AIR SUSPENSION	LR146825 TUBE - AIR SUSPENSION Air Tanks Connection / From: M2034809	-	1	Enquire
