Air Vents, Louvres And Ducts (Internal Components, 1St Row)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Air Vents, Louvres And Ducts (Internal Components, 1st Row)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR131781 PIN - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR133505 PIN - RETAINING Enquire To Order
Photo Part No Description Price (each) Stock
LR007312 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR101428 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RYP500770 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR132273 DUCT - AIR VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR132271 DUCT - AIR VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR035924 DUCT - HEATER OUTLET Enquire To Order
LR139517 DUCT - HEATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR035925 DUCT - HEATER OUTLET Enquire To Order
LR139519 DUCT - HEATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR041044 SENSOR - HEATER TEMPERATURE CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
LR062233 SENSOR - HEATER TEMPERATURE CONTROL Enquire To Order
View All

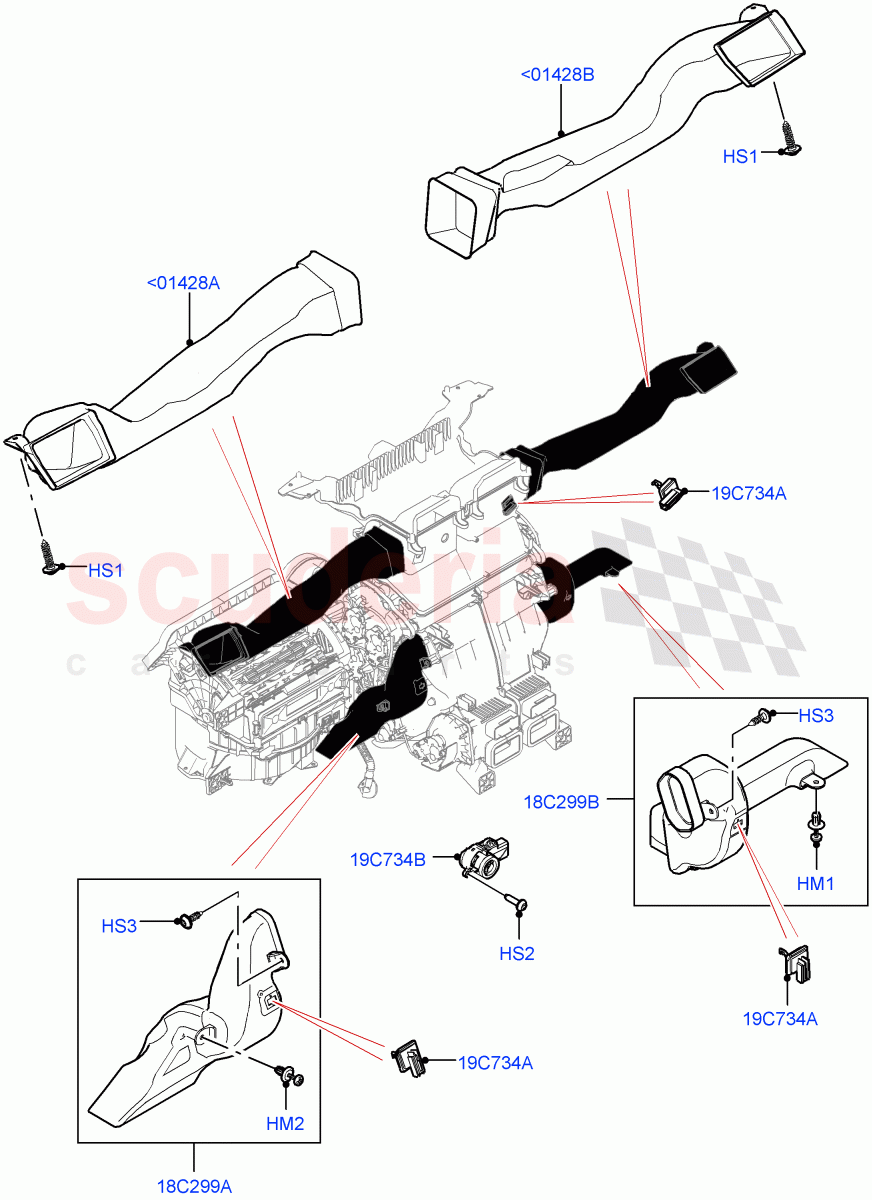

Air Vents, Louvres And Ducts (Internal Components, 1st Row) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A LR132273
DUCT - AIR VENT
LH Upper 		- 1 Enquire
<01428B LR132271
DUCT - AIR VENT
RH Upper 		- 1 Enquire
HM1 LR131781
PIN - RETAINING
6.25 x 1.6/6MM 		- 1 Enquire
HM2 LR133505
PIN - RETAINING
5.0 x 3.8/6 mm 		- 1 Enquire
HS1 LR007312
SCREW
4.2 X 19MM 		- 2 Enquire
HS2 LR101428
SCREW
4 X 16MM 		- 2 Enquire
HS3 RYP500770
SCREW
5 X 16MM, Torx 		- 2 Enquire
18C299A LR035924
DUCT - HEATER OUTLET
RHD / LH Lower 		- 1 Enquire
18C299A LR139517
DUCT - HEATER OUTLET
LHD / LH Lower 		- 1 Enquire
18C299B LR035925
DUCT - HEATER OUTLET
RHD / RH Lower 		- 1 Enquire
18C299B LR139519
DUCT - HEATER OUTLET
LHD / RH Lower 		- 1 Enquire
19C734A LR041044
SENSOR - HEATER TEMPERATURE CONTROL
Attached To Air Ducts 		- 4 Enquire
19C734B LR062233
SENSOR - HEATER TEMPERATURE CONTROL
Located In Instrument Panel 		- 1 Enquire
