Heater Hoses (3.0L Aj20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, Premium Air...

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, Premium Air...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
LR030752 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR148083 PUMP - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100018 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR163794 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR134992 BRACKET - PUMP SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR125240 HOSE - WATER Enquire To Order
View All

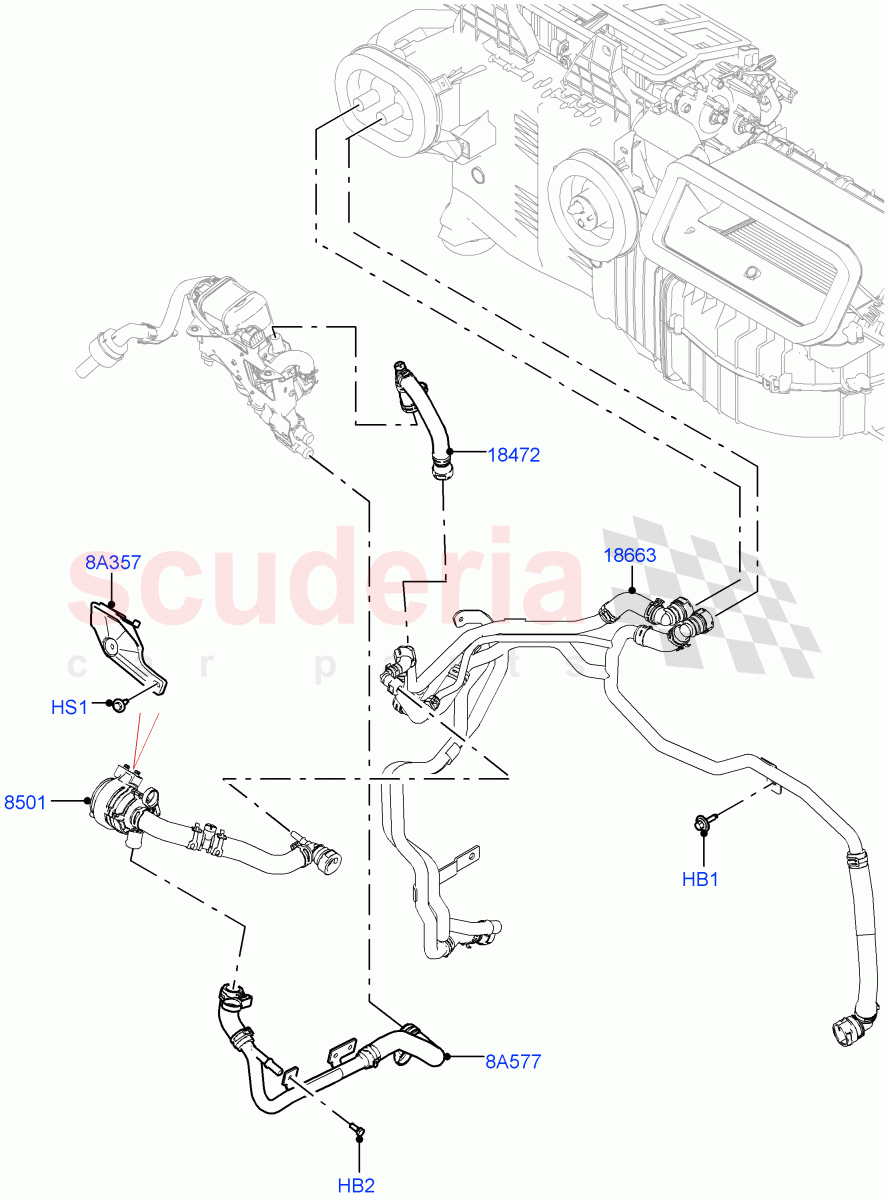

Heater Hoses (3.0L AJ20D6 Diesel High, Fuel Heater W/Pk Heat With Remote, Premium Air Conditioning-Front/Rear, Fuel Fired Heater With Park Heat) ((V) FROMP2000001) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM / From: P2000001 		- 2 Enquire
HB2 LR030752
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 x 22MM / From: P2000001 		- 2 Enquire
HS1 FYP500550
SCREW
Bracket, Hexagonal Head, M6 X 20MM / From: P2000001 		- 2 Enquire
8A357 LR134992
BRACKET - PUMP SUPPORT
Water Pump / From: P2000001 		- 1 Enquire
8A577 LR125240
HOSE - WATER
From: P2000001 		- 1 Enquire
8501 LR148083
PUMP - WATER
From: P2000001 		- 1 Enquire
18472 LR100018
HOSE - HEATER WATER
To Fuel Fired Heater / From: P2000001 		- 1 Enquire
18663 LR163794
HOSE - COOLING SYSTEM
To HVAC Unit / From: P2000001 		- 1 Enquire
