Heater Hoses (2.0L I4 High Dohc Aj200 Petrol, Less Heater, With Ptc Heater)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Heater Hoses (2.0L I4 High DOHC AJ200 Petrol, Less Heater, With Ptc Heater)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR030752 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR099973 HOSE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100066 BRACKET - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR128294 HOSE - COOLING SYSTEM Enquire To Order
Photo Part No Description Price (each) Stock
LR100055 TUBE - HEATER WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR131389 HOSE AND BRACKET - HEATING Enquire To Order
View All

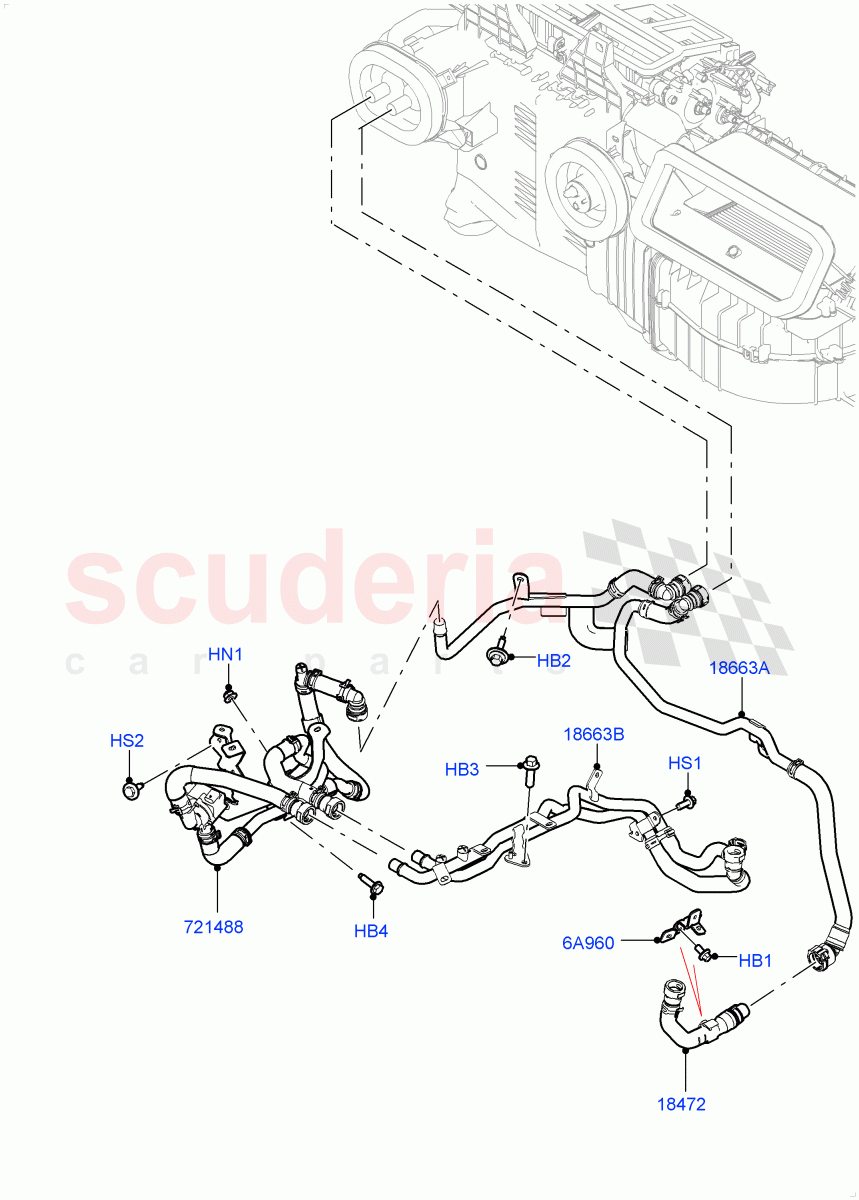

Heater Hoses (2.0L I4 High DOHC AJ200 Petrol, Less Heater, With Ptc Heater) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM 		- 3 Enquire
HB2 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM 		- 2 Enquire
HB3 FS108256
BOLT
Hexagonal Head, M8 X 25MM 		- 1 Enquire
HB4 LR030752
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M6 x 22MM 		- 2 Enquire
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 		- 2 Enquire
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 1 Enquire
HS2 FYP500550
SCREW
Hexagonal Head, M6 X 20MM 		- 1 Enquire
6A960 LR100066
BRACKET - HOSE 		- 1 Enquire
18472 LR099973
HOSE - HEATER WATER
To Thermostat 		- 1 Enquire
18663A LR128294
HOSE - COOLING SYSTEM
To HVAC Unit 		- 1 Enquire
18663B LR100055
TUBE - HEATER WATER
Inlet 		- 1 Enquire
721488 LR131389
HOSE AND BRACKET - HEATING
Water Pump 		- 1 Enquire
