Heater/Air Cond.external Components (Main Unit, Nitra Plant Build)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Heater/Air Cond.External Components (Main Unit, Nitra Plant Build)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR036394 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR018267 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR131023 KIT - HEATER SEALINGS Enquire To Order
Photo Part No Description Price (each) Stock
LR131014 TUBE - WATER DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR137032 DEFLECTOR - AIR Enquire To Order
LR137033 DEFLECTOR - AIR Enquire To Order
Photo Part No Description Price (each) Stock
LR035867 GROMMET - HEATER Enquire To Order
Photo Part No Description Price (each) Stock
LR036363 GROMMET - HEATER Enquire To Order
View All

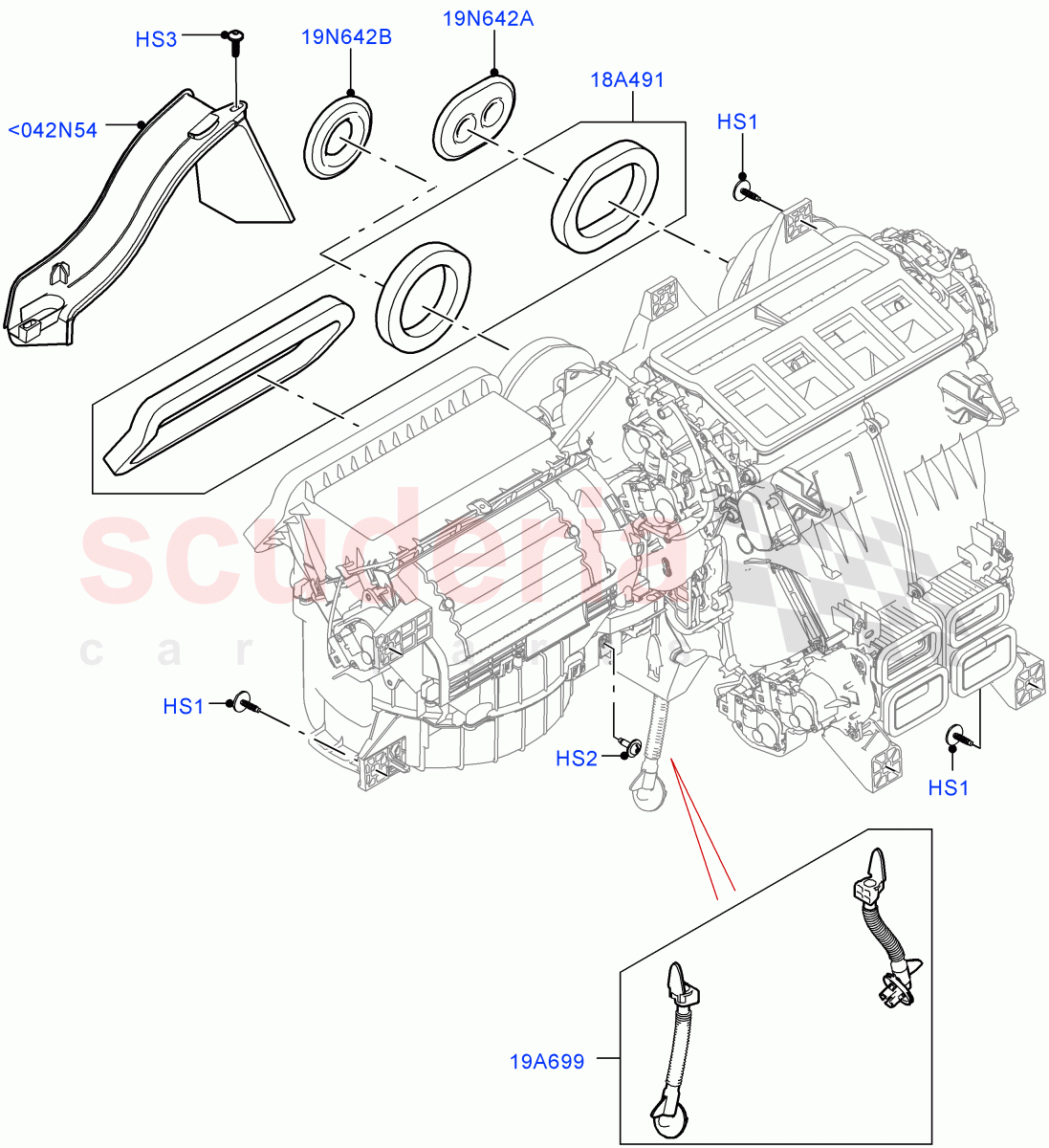

Heater/Air Cond.External Components (Main Unit, Nitra Plant Build) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<042N54 LR137032
DEFLECTOR - AIR
LHD 		- 1 Enquire
<042N54 LR137033
DEFLECTOR - AIR
RHD 		- 1 Enquire
HS1 LR036394
SCREW AND WASHER
M6 X 23MM, Torx 		- 6 Enquire
HS2 LR083229
SCREW
M6 x 18MM 		- 1 Enquire
HS3 LR018267
SCREW
M6 X 20MM, Torx 		- 2 Enquire
18A491 LR131023
KIT - HEATER SEALINGS
Service Kit, Set Of 3 Pieces 		- 1 Enquire
19A699 LR131014
TUBE - WATER DRAIN 		- 1 Enquire
19N642A LR035867
GROMMET - HEATER
RH, External 		- 1 Enquire
19N642B LR036363
GROMMET - HEATER
LH, External 		- 1 Enquire
