Air Conditioning Condensr/Compressr (2.0L Aj200P Hi Phev)

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] - Air Conditioning Condensr/Compressr (2.0L AJ200P Hi PHEV)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR003574 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB108076 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR082290 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR035462 CLIP - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR044466 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR054870 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR054871 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR142627 CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
LR122304 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR086926 SENSOR - REFRIGERANT PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR131140 HOSE - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR144595 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR159419 COMPRESSOR - AIR CONDITIONING Enquire To Order
LR172658 COMPRESSOR - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
LR100920 BRACKET - COMPRESSOR Enquire To Order
Photo Part No Description Price (each) Stock
LR131151 TUBE - COMPRESSOR DELIVERY Enquire To Order
Photo Part No Description Price (each) Stock
LR101278 TUBE - COMPRESSOR LINE Enquire To Order
View All

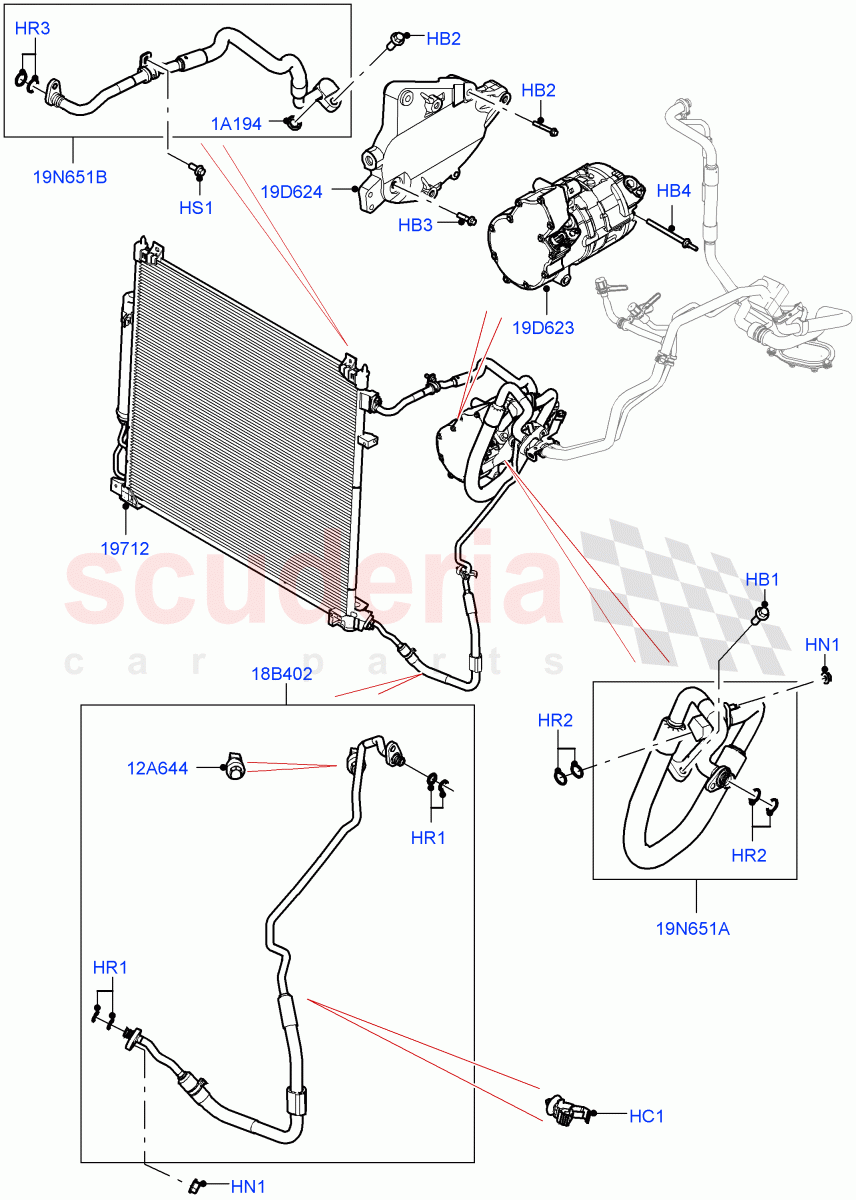

Air Conditioning Condensr/Compressr (2.0L AJ200P Hi PHEV) of Land Rover Land Rover Defender (2020+) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108256
BOLT
Hexagonal Head, M8 X 25MM 		- 2 Enquire
HB2 LR003574
BOLT
Hexagonal Head, M8 x 60MM 		- 2 Enquire
HB3 FB108076
BOLT
M8 X 35MM 		- 3 Enquire
HB4 LR082290
BOLT
M8X100 + M6X20 		- 3 Enquire
HC1 LR035462
CLIP - HOSE
For Air Conditioning Hose 		- 1 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HR1 LR044466
O-RING
7.65 X 1.78 		- 4 Enquire
HR2 LR054870
O-RING
16.5 X 1.78MM 		- 4 Enquire
HR3 LR054871
O-RING
10.82MM X 1.78MM 		- 2 Enquire
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM 		- 1 Enquire
1A194 LR122304
WASHER - SEALING
12.7MM 		- 1 Enquire
12A644 LR086926
SENSOR - REFRIGERANT PRESSURE
Refrigerant Pressure Sensor 		- 1 Enquire
18B402 LR131140
HOSE - AIR CONDITIONING
Condenser Outlet 		- 1 Enquire
19D623 LR144595
COMPRESSOR - AIR CONDITIONING
To: N2072830 		- 1 Enquire
19D623 LR159419
COMPRESSOR - AIR CONDITIONING
From: N2072831 / To: N2101323 		- 1 Enquire
19D623 LR172658
COMPRESSOR - AIR CONDITIONING
From: N2101324 		- 1 Enquire
19D624 LR100920
BRACKET - COMPRESSOR
Air Conditioning Compressor Bracket 		- 1 Enquire
19N651A LR131151
TUBE - COMPRESSOR DELIVERY
Compressor Inlet 		- 1 Enquire
19N651B LR101278
TUBE - COMPRESSOR LINE
Condenser Inlet Tube 		- 1 Enquire
19712 LR142627
CONDENSER 		- 1 Enquire
