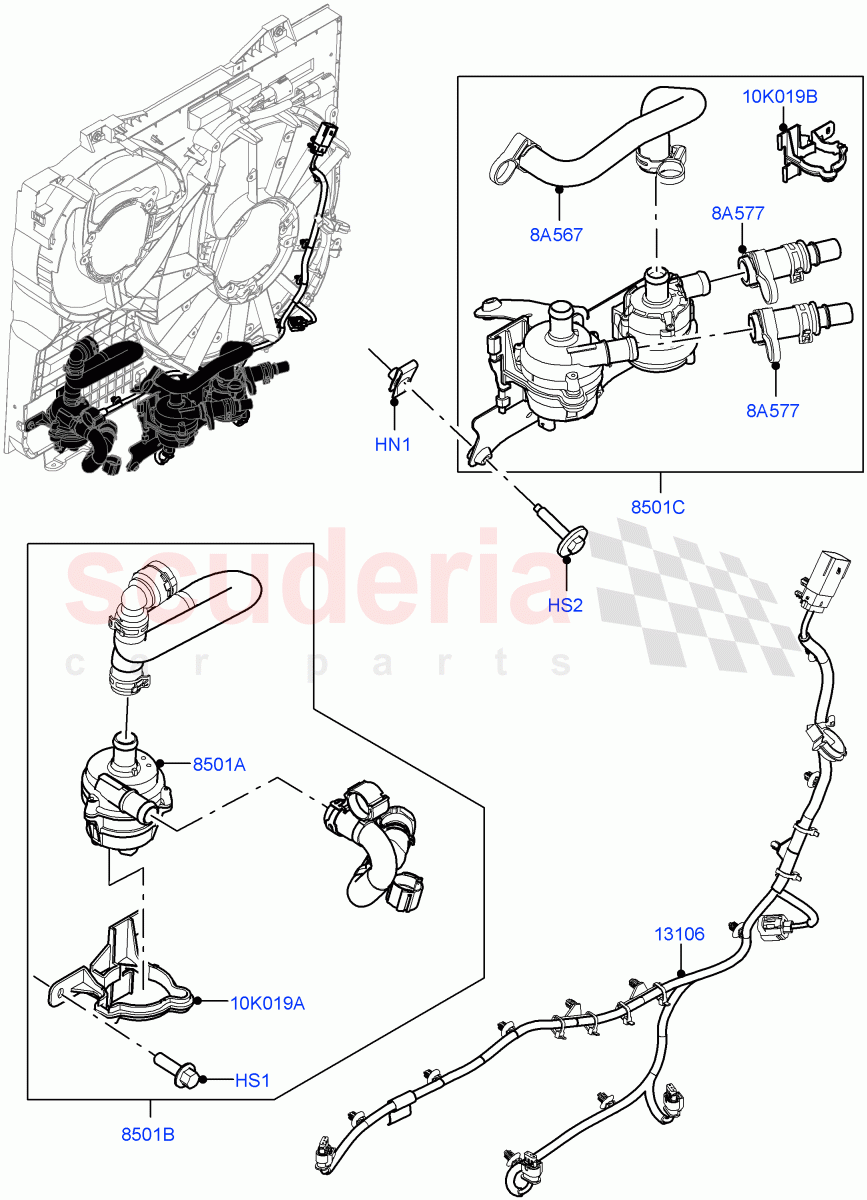

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR095160	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100557	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR137961	PUMP - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131970	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132441	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082251	CLAMP - WATER PUMP MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR153421	BRACKET - PUMP SUPPORT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR000053	NUT - FLANGED	LR000053 NUT - FLANGED M6	-	2	Enquire
HS1	RYG500220	SCREW	RYG500220 SCREW Hexagonal Head, M6 X 20MM	-	1	Enquire
HS2	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	-	3	Enquire
8A567	LR131970	HOSE - WATER	LR131970 HOSE - WATER	-	1	Enquire
8A577	LR132441	HOSE	LR132441 HOSE	-	2	Enquire
10K019A	LR082251	CLAMP - WATER PUMP MOUNTING	LR082251 CLAMP - WATER PUMP MOUNTING LH	-	1	Enquire
10K019B	LR153421	BRACKET - PUMP SUPPORT	LR153421 BRACKET - PUMP SUPPORT RH	-	1	Enquire
8501A	LR095160	PUMP - WATER	LR095160 PUMP - WATER Single	-	1	Enquire
8501B	LR100557	PUMP - WATER	LR100557 PUMP - WATER Complete Assembly	-	1	Enquire
8501C	LR137961	PUMP - WATER	LR137961 PUMP - WATER	-	1	Enquire
13106	LR136757	WIRING - WATER PUMP	LR136757 WIRING - WATER PUMP To: M2051203	-	1	Enquire
13106	LR156120	WIRING - WATER PUMP	LR156120 WIRING - WATER PUMP From: M2051211 / To: N2999999	-	1	Enquire
13106	LR145280	WIRING - WATER PUMP	LR145280 WIRING - WATER PUMP From: M2051204 / To: M2051210	-	1	Enquire
13106	LR172169	WIRING - WATER PUMP	LR172169 WIRING - WATER PUMP From: P2000001	-	1	Enquire
