Cooling System Pipes And Hoses (Nitra Plant Build) (2.0L Aj200P Hi Phev, With Extra Engine Cooling...

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Nitra Plant Build) (2.0L AJ200P Hi PHEV, With Extra Engine Cooling...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR129407 HOSE - WATER Enquire To Order
LR146276 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR129408 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR132657 HOSE - RADIATOR Enquire To Order
LR174026 Pipe Enquire To Order
Photo Part No Description Price (each) Stock
LR100081 HOSE - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR108588 HOSE - OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR131395 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR129412 RESERVOIR - EXPANSION Enquire To Order
Photo Part No Description Price (each) Stock
LR129410 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR100553 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR131393 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR132432 HOSE - RADIATOR TO ENG. VENT ELBOW Enquire To Order
Photo Part No Description Price (each) Stock
LR131382 HOSE - COOLANT BLEED Enquire To Order
Photo Part No Description Price (each) Stock
LR138047 BRACKET - HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR132446 HOSE - WATER Enquire To Order
View All

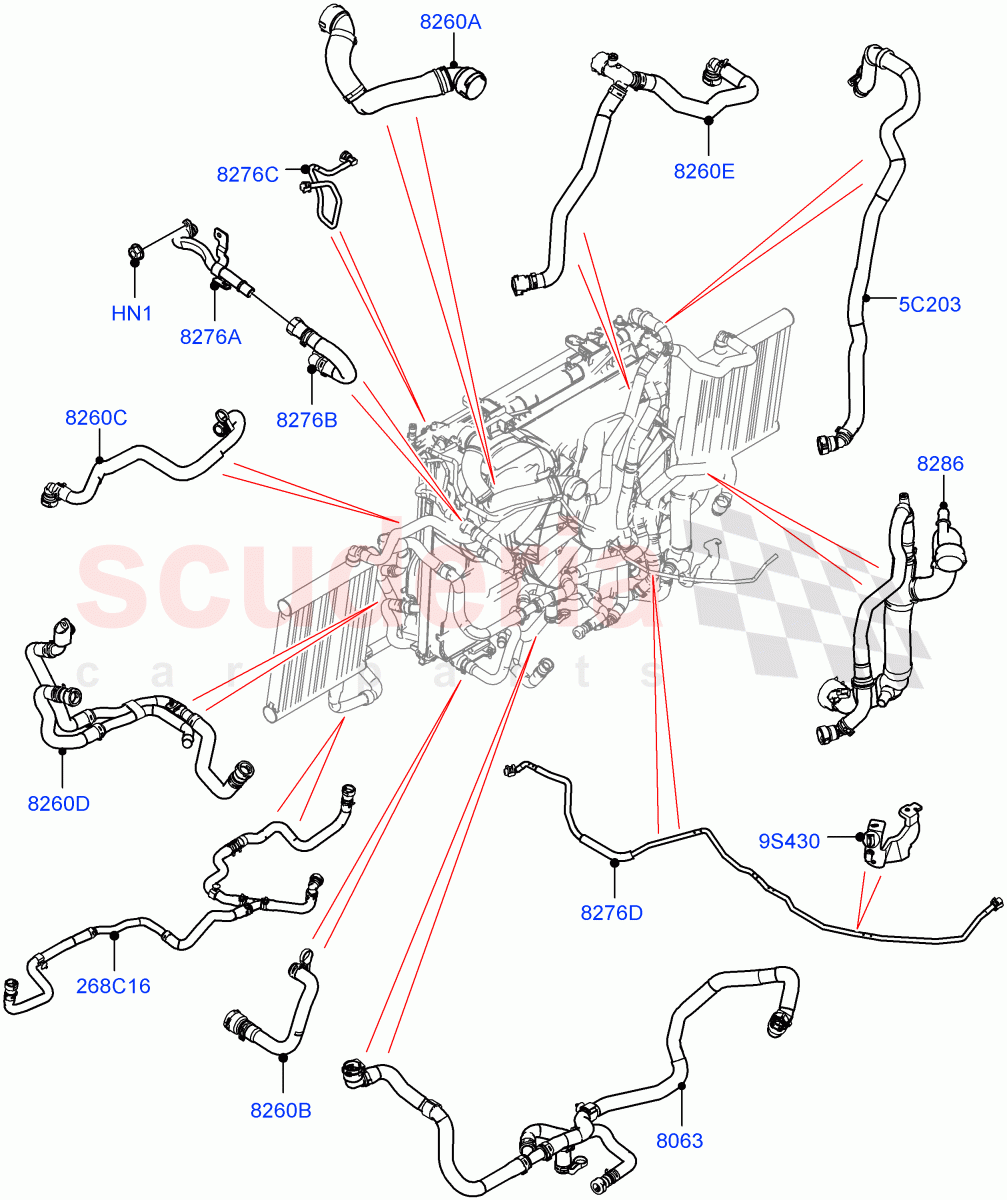

Cooling System Pipes And Hoses (Nitra Plant Build) (2.0L AJ200P Hi PHEV, With Extra Engine Cooling System) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: M2000001 		- 1 Enquire
5C203 LR132657
HOSE - RADIATOR
Water Pump / From: M2000001 / To: N2106960 		- 1 Enquire
5C203 LR174026
Pipe
Water Pump / From: N2106961 		- 1 Enquire
9S430 LR138047
BRACKET - HOSE
From: M2000001 		- 1 Enquire
268C16 LR132446
HOSE - WATER
Auxiliary Radiator, Bottom / From: M2000001 		- 1 Enquire
8063 LR129407
HOSE - WATER
From Engine To Expansion Tank / From: M2000001 / To: M2034428 		- 1 Enquire
8063 LR146276
HOSE - WATER
From Engine To Expansion Tank / From: M2034429 		- 1 Enquire
8260A LR100081
HOSE - RADIATOR
Radiator, Top / From: M2000001 		- 1 Enquire
8260B LR108588
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: M2000001 		- 1 Enquire
8260C LR131395
HOSE - WATER
Auxiliary Radiator, LH Upper / From: M2000001 		- 1 Enquire
8260D LR129412
RESERVOIR - EXPANSION
Battery, Water Charge Air Cooler / From: M2000001 		- 1 Enquire
8260E LR129410
HOSE - WATER
Auxiliary Radiator, RH Upper / From: M2000001 		- 1 Enquire
8276A LR100553
HOSE - WATER
Water Charge Air Cooler / From: M2000001 		- 1 Enquire
8276B LR131393
HOSE - WATER
Intercooler Inlet / From: M2000001 		- 1 Enquire
8276C LR132432
HOSE - RADIATOR TO ENG. VENT ELBOW
Radiator Degas Line / From: M2000001 		- 1 Enquire
8276D LR131382
HOSE - COOLANT BLEED
To Expansion Tank / From: M2000001 		- 1 Enquire
8286 LR129408
HOSE - RADIATOR
Lower, Radiator / From: M2000001 		- 1 Enquire
