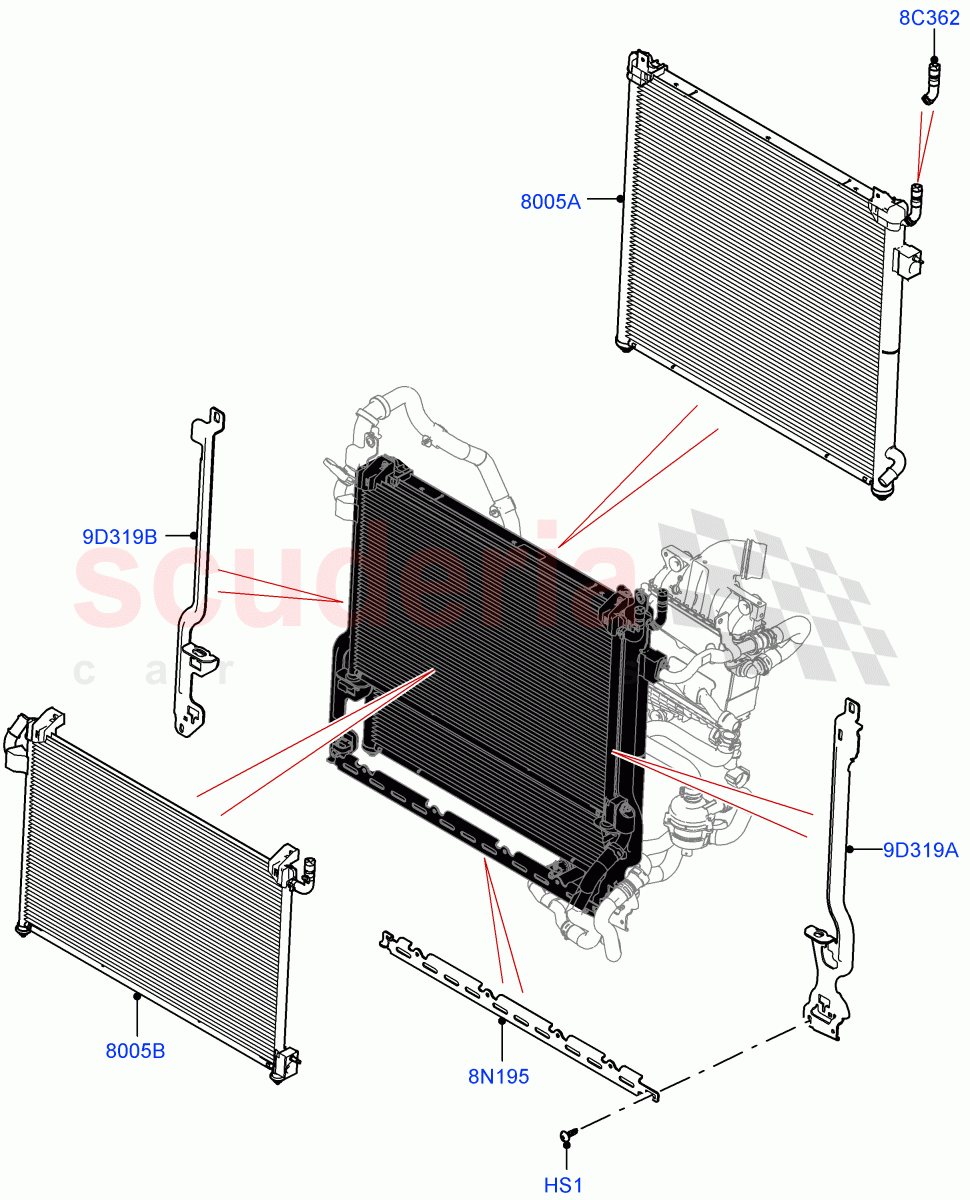

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092782	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171302	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062108	PIPE - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143230	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171305	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171309	BRACKET - RADIATOR UPPER	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head	-	2	Enquire
8C362	LR062108	PIPE - FILLER	LR062108 PIPE - FILLER Fill, Tube	-	1	Enquire
8N195	LR143230	BRACKET - RADIATOR	LR143230 BRACKET - RADIATOR Radiator Mounting	-	1	Enquire
9D319A	LR171305	Bracket	LR171305 Bracket LH, Condenser Support	-	1	Enquire
9D319B	LR171309	BRACKET - RADIATOR UPPER	LR171309 BRACKET - RADIATOR UPPER RH, Condenser Support	-	1	Enquire
8005A	LR092782	RADIATOR - WATER CHARGE AIR COOLER	LR092782 RADIATOR - WATER CHARGE AIR COOLER Rear	-	1	Enquire
8005B	LR171302	RADIATOR - WATER CHARGE AIR COOLER	LR171302 RADIATOR - WATER CHARGE AIR COOLER Front	-	1	Enquire
