Name: Thermostat/Housing & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001)
Rating: 4.2 (1 reviews)

Thermostat/Housing & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Thermostat/Housing & Related Parts (Nitra Plant Build) (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC...

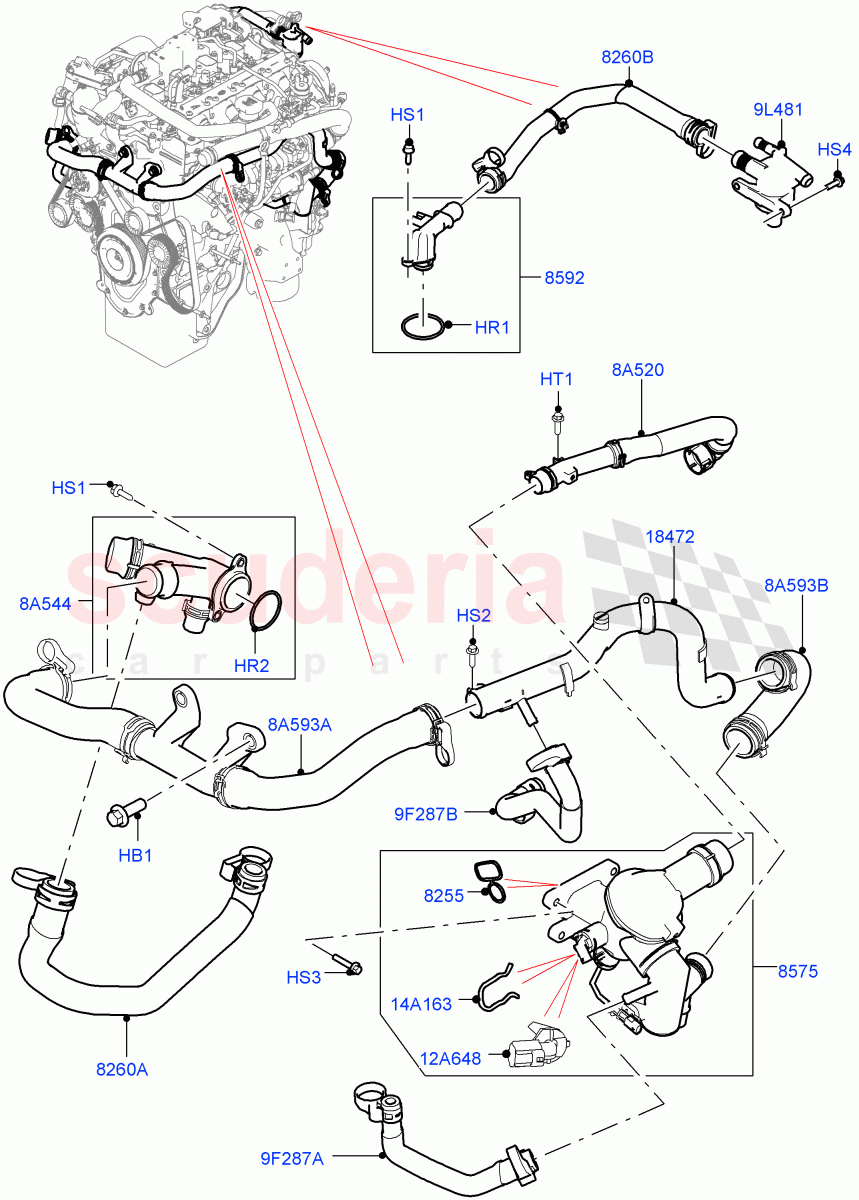

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR082795	BOLT - HEX.HEAD	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123819	O-RING	$3.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123822	O-RING	$4.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073689	SCREW	$2.27	To Order
	LR073689	SCREW	$2.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073648	SCREW	$2.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR133081	STUD	$2.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105592	SEAL - THERMOSTAT	$8.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR106640	THERMOSTAT AND HOUSING	$136.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122821	TUBE - WATER OUTLET	$46.64	To Order
	LR171244	TUBE - WATER OUTLET	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111133	TUBE - BY-PASS	$54.11	To Order
	LR169924	TUBE - BY-PASS	$53.31	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110295	HOSE - WATER INLET	$69.88	To Order
	LR162133	HOSE - OIL	$69.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108956	HOSE	$53.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093671	TUBE - OUTLET	$50.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR181890	TUBE - CONNECTING	$31.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093489	SEPARATOR - COOLANT DEGAS	$89.83	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105610	RETAINER - SENSOR CLIP	$4.50	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100356	TUBE - BY-PASS	$171.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092095	HOSE - WATER BY-PASS	$42.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093484	HOSE - BYPASS VALVE	$58.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115232	HOSE - BY-PASS	$41.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR082795	BOLT - HEX.HEAD	LR082795 BOLT - HEX.HEAD Hexagonal Head, M12 X 35MM, To Heater Hoses	$3.19	2
HR1	LR123819	O-RING	LR123819 O-RING Between Cylinder Head And Coolant Inlet Pipe	$3.19	1
HR2	LR123822	O-RING	LR123822 O-RING EGR Cooler	$4.43	1
HS1	LR073689	SCREW	LR073689 SCREW Hexagonal Head, M6 X 20MM, Outlet pipe	$2.27	1
HS1	LR073689	SCREW	LR073689 SCREW Connecting Tube, Hexagonal Head, M6 X 20MM	$2.27	2
HS2	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	3
HS3	LR073648	SCREW IN STOCK	LR073648 SCREW Hexagonal Head, M6 x 30MM, Thermostat To Engine IN STOCK	$2.55	4
HS4	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM, Separator IN STOCK	$1.54	2
HT1	LR133081	STUD	LR133081 STUD M6 X 26MM	$2.42	2
8A520	LR093671	TUBE - OUTLET	LR093671 TUBE - OUTLET Outlet	$50.39	1
8A544	LR181890	TUBE - CONNECTING	LR181890 TUBE - CONNECTING EGR Cooler	$31.38	1
8A593A	LR100356	TUBE - BY-PASS	LR100356 TUBE - BY-PASS Front	$171.89	1
8A593B	LR092095	HOSE - WATER BY-PASS	LR092095 HOSE - WATER BY-PASS Rear	$42.03	1
9F287A	LR093484	HOSE - BYPASS VALVE	LR093484 HOSE - BYPASS VALVE To Thermostat	$58.27	1
9F287B	LR115232	HOSE - BY-PASS	LR115232 HOSE - BY-PASS	$41.68	1
9L481	LR093489	SEPARATOR - COOLANT DEGAS	LR093489 SEPARATOR - COOLANT DEGAS	$89.83	1
12A648	LR105595	SENSOR - ENGINE COOLANT TEMPERATURE	LR105595 SENSOR - ENGINE COOLANT TEMPERATURE	$34.73	1
14A163	LR105610	RETAINER - SENSOR CLIP	LR105610 RETAINER - SENSOR CLIP	$4.50	1
8255	LR105592	SEAL - THERMOSTAT IN STOCK	LR105592 SEAL - THERMOSTAT Thermostat And Housing Assy IN STOCK	$8.28	1
8260A	LR110295	HOSE - WATER INLET	LR110295 HOSE - WATER INLET To Oil Cooler / To: N2077453	$69.88	1
8260A	LR162133	HOSE - OIL	LR162133 HOSE - OIL To Oil Cooler / From: N2077454	$69.88	1
8260B	LR108956	HOSE	LR108956 HOSE Tube Water By-Pass	$53.70	1
8575	LR106640	THERMOSTAT AND HOUSING	LR106640 THERMOSTAT AND HOUSING	$136.01	1
8592	LR122821	TUBE - WATER OUTLET	LR122821 TUBE - WATER OUTLET To: N2096022	$46.64	1
8592	LR171244	TUBE - WATER OUTLET	LR171244 TUBE - WATER OUTLET From: N2096023	$47.02	1
18472	LR111133	TUBE - BY-PASS	LR111133 TUBE - BY-PASS Left Side / To: N2095492	$54.11	1
18472	LR169924	TUBE - BY-PASS	LR169924 TUBE - BY-PASS Left Side / From: N2095493	$53.31	1
