Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L Aj200P Hi Phev) ((V)...

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106126 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR129411 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR131274 TUBE - INVERTER COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR132592 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR118347 PIPE - MOTOR/GENERATOR COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR132417 PLATE - MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR129413 TUBE - INVERTER COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR129405 PIPE - MOTOR/GENERATOR COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR132401 HOSE - WATER INLET Enquire To Order
Photo Part No Description Price (each) Stock
LR131407 TUBE - INVERTER COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR131405 TUBE - INVERTER COOLING Enquire To Order
Photo Part No Description Price (each) Stock
LR132631 HOSE - WATER Enquire To Order
View All

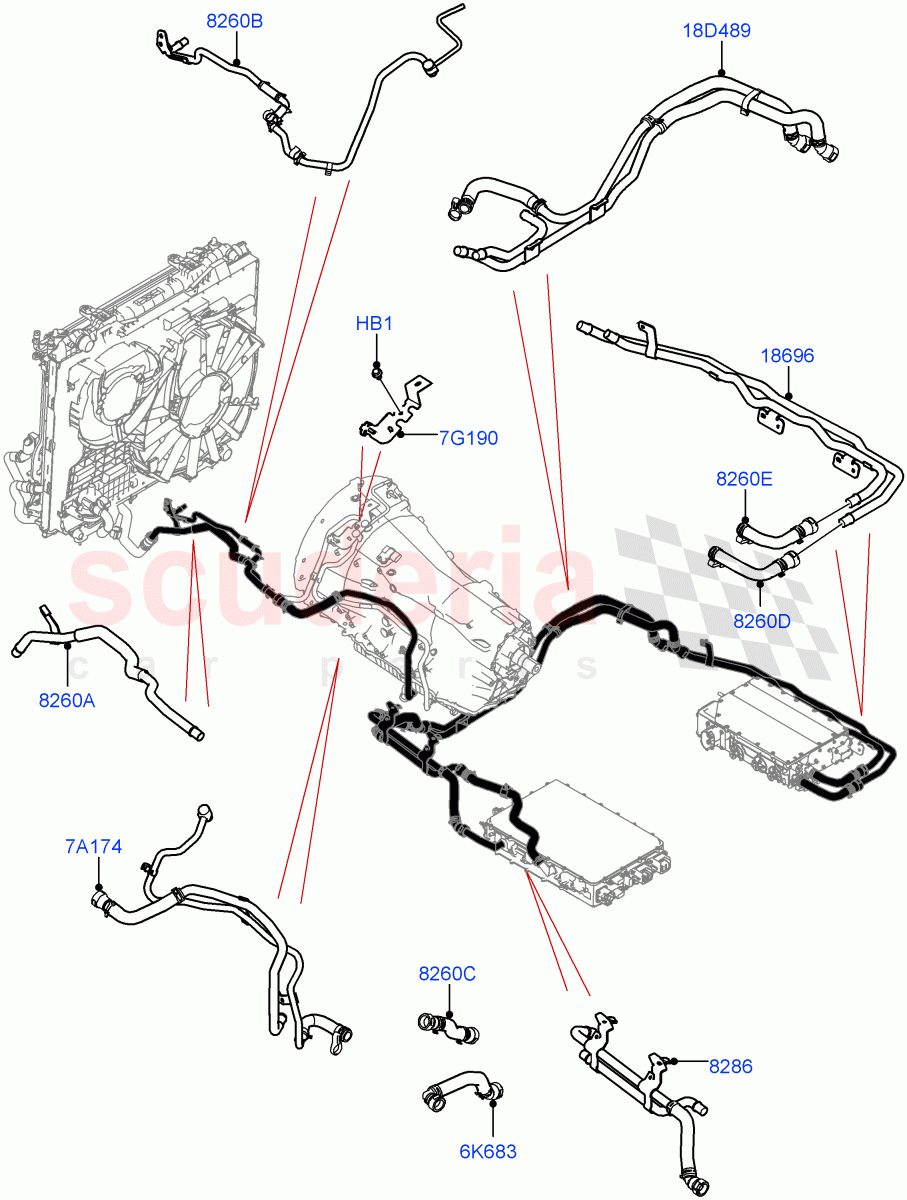

Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS106126
BOLT
Hexagonal Head, M6 x 12MM / From: M2000001 		- 1 Enquire
6K683 LR132592
HOSE - WATER
Battery Charger to Crankshaft Integrated Motor Generator / From: M2000001 		- 1 Enquire
7A174 LR118347
PIPE - MOTOR/GENERATOR COOLING
Feed / From: M2000001 		- 1 Enquire
7G190 LR132417
PLATE - MOUNTING
From: M2000001 		- 1 Enquire
18D489 LR132631
HOSE - WATER
From: M2000001 		- 1 Enquire
8260A LR129413
TUBE - INVERTER COOLING
Auxiliary Radiator To Inverter / From: M2000001 		- 1 Enquire
8260B LR129405
PIPE - MOTOR/GENERATOR COOLING
Crank Integrated Motor Generator, Return / From: M2000001 		- 1 Enquire
8260C LR132401
HOSE - WATER INLET
Inlet - Battery Charger / From: M2000001 		- 1 Enquire
8260D LR131407
TUBE - INVERTER COOLING
Outlet / From: M2000001 		- 1 Enquire
8260E LR131405
TUBE - INVERTER COOLING
Inlet / From: M2000001 		- 1 Enquire
8286 LR129411
HOSE - WATER
Inverter To Battery Charger / From: M2000001 		- 1 Enquire
18696 LR131274
TUBE - INVERTER COOLING
From: M2000001 		- 1 Enquire
