Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Rear Springs And Shock Absorbers (With Standard Duty Coil Spring Susp)

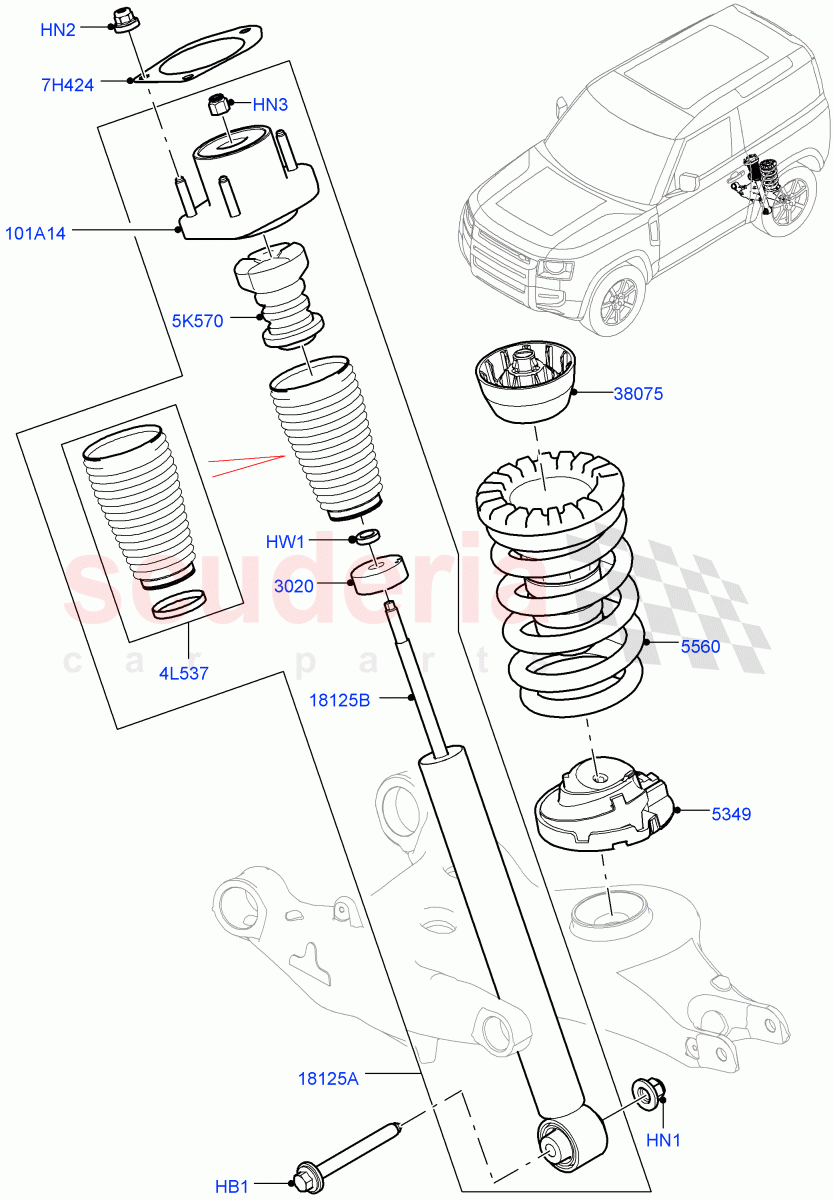

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038196	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034227	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034278	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161563	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105451	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132324	PAD - ANTI-SQUEAK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131214	SPRING - COIL	Enquire	To Order
	LR131215	SPRING - COIL	Enquire	To Order
	LR131216	SPRING - COIL	Enquire	To Order

...and 17 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR106456	PLATE - SPRING RETAINING	Enquire	To Order
	LR149835	PLATE - SPRING RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100396	KIT - BOOT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR161349	BUMPER - SHOCK ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034276	SEAL - STRUT TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125895	REINFORCEMENT - SUSPENSION BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145409	SHOCK ABSORBER - REAR	Enquire	To Order
	LR148085	SHOCK ABSORBER - REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140228	SHOCK ABSORBER - REAR	Enquire	To Order
	LR140227	SHOCK ABSORBER - REAR	Enquire	To Order
	LR158959	SHOCK ABSORBER - REAR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038196	BOLT	LR038196 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HN1	LR034277	NUT	LR034277 NUT M14, Nut And Washer	-	2	Enquire
HN2	LR034227	NUT - FLANGED	LR034227 NUT - FLANGED M10	-	6	Enquire
HN3	LR034278	NUT	LR034278 NUT M12 x 1	-	2	Enquire
HW1	LR161563	WASHER	LR161563 WASHER RH/LH	-	2	Enquire
4L537	LR100396	KIT - BOOT	LR100396 KIT - BOOT RH/LH	-	2	Enquire
5K570	LR161349	BUMPER - SHOCK ABSORBER	LR161349 BUMPER - SHOCK ABSORBER RH/LH	-	2	Enquire
7H424	LR034276	SEAL - STRUT TOP	LR034276 SEAL - STRUT TOP Antisqueak, RH/LH	-	2	Enquire
101A14	LR125895	REINFORCEMENT - SUSPENSION BRACKET	LR125895 REINFORCEMENT - SUSPENSION BRACKET RH/LH	-	2	Enquire
3020	LR105451	BUMP STOP	LR105451 BUMP STOP RH/LH	-	2	Enquire
5349	LR132324	PAD - ANTI-SQUEAK	LR132324 PAD - ANTI-SQUEAK RH/LH	-	2	Enquire
5560	LR131214	SPRING - COIL	LR131214 SPRING - COIL Rear Spring Load Class-A, Short Wheelbase / RH/LH / To: M2034428	-	2	Enquire
5560	LR131215	SPRING - COIL	LR131215 SPRING - COIL Rear Spring Load Class-B, Short Wheelbase / RH/LH / To: M2034428	-	2	Enquire
5560	LR131216	SPRING - COIL	LR131216 SPRING - COIL Rear Spring Load Class-C, Short Wheelbase / RH/LH / To: M2034428	-	2	Enquire
5560	LR131217	SPRING - COIL	LR131217 SPRING - COIL Rear Spring Load Class-D, Short Wheelbase / RH/LH / To: M2034428	-	2	Enquire
5560	LR131218	SPRING - COIL	LR131218 SPRING - COIL Rear Spring Load Class-E, Short Wheelbase / RH/LH / To: M2034428	-	2	Enquire
5560	LR131219	SPRING - COIL	LR131219 SPRING - COIL Rear Spring Load Class-A, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428	-	2	Enquire
5560	LR131220	SPRING - COIL	LR131220 SPRING - COIL Rear Spring Load Class-B, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428	-	2	Enquire
5560	LR131221	SPRING - COIL	LR131221 SPRING - COIL Rear Spring Load Class-C, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428	-	2	Enquire
5560	LR131222	SPRING - COIL	LR131222 SPRING - COIL Rear Spring Load Class-D, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428	-	2	Enquire
5560	LR131223	SPRING - COIL	LR131223 SPRING - COIL Rear Spring Load Class-E, Standard Wheelbase / RH/LH / From: M2000001 / To: M2034428	-	2	Enquire
5560	LR144600	SPRING - COIL	LR144600 SPRING - COIL Rear Spring Load Class-A, Short Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144601	SPRING - COIL	LR144601 SPRING - COIL Rear Spring Load Class-B, Short Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144602	SPRING - COIL	LR144602 SPRING - COIL Rear Spring Load Class-C, Short Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144603	SPRING - COIL	LR144603 SPRING - COIL Rear Spring Load Class-D, Short Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144604	SPRING - COIL	LR144604 SPRING - COIL Rear Spring Load Class-E, Short Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144605	SPRING - COIL	LR144605 SPRING - COIL Rear Spring Load Class-A, Standard Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144606	SPRING - COIL	LR144606 SPRING - COIL Rear Spring Load Class-B, Standard Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144608	SPRING - COIL	LR144608 SPRING - COIL Rear Spring Load Class-C, Standard Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144609	SPRING - COIL	LR144609 SPRING - COIL Rear Spring Load Class-D, Standard Wheelbase / RH/LH / From: M2034429	-	2	Enquire
5560	LR144610	SPRING - COIL	LR144610 SPRING - COIL Rear Spring Load Class-E, Standard Wheelbase / RH/LH / From: M2034429	-	2	Enquire
18125A	LR145409	SHOCK ABSORBER - REAR	LR145409 SHOCK ABSORBER - REAR RH/LH / To: M2034429	-	2	Enquire
18125A	LR148085	SHOCK ABSORBER - REAR	LR148085 SHOCK ABSORBER - REAR RH/LH / From: M2034430	-	2	Enquire
18125B	LR140228	SHOCK ABSORBER - REAR	LR140228 SHOCK ABSORBER - REAR Short Wheelbase / RH/LH / To: M2061930	-	2	Enquire
18125B	LR140227	SHOCK ABSORBER - REAR	LR140227 SHOCK ABSORBER - REAR Standard Wheelbase / RH/LH / To: M2061930	-	2	Enquire
18125B	LR158959	SHOCK ABSORBER - REAR	LR158959 SHOCK ABSORBER - REAR RH/LH / From: M2061931	-	2	Enquire
38075	LR106456	PLATE - SPRING RETAINING	LR106456 PLATE - SPRING RETAINING RH/LH / To: M2034429	-	2	Enquire
38075	LR149835	PLATE - SPRING RETAINING	LR149835 PLATE - SPRING RETAINING RH/LH / From: M2034430	-	2	Enquire
