Rear Axle (Rear Axle Open Diff w/TVBB) ((V) FROMM2000001) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Rear Axle (Rear Axle Open Diff w/TVBB) ((V) FROMM2000001)

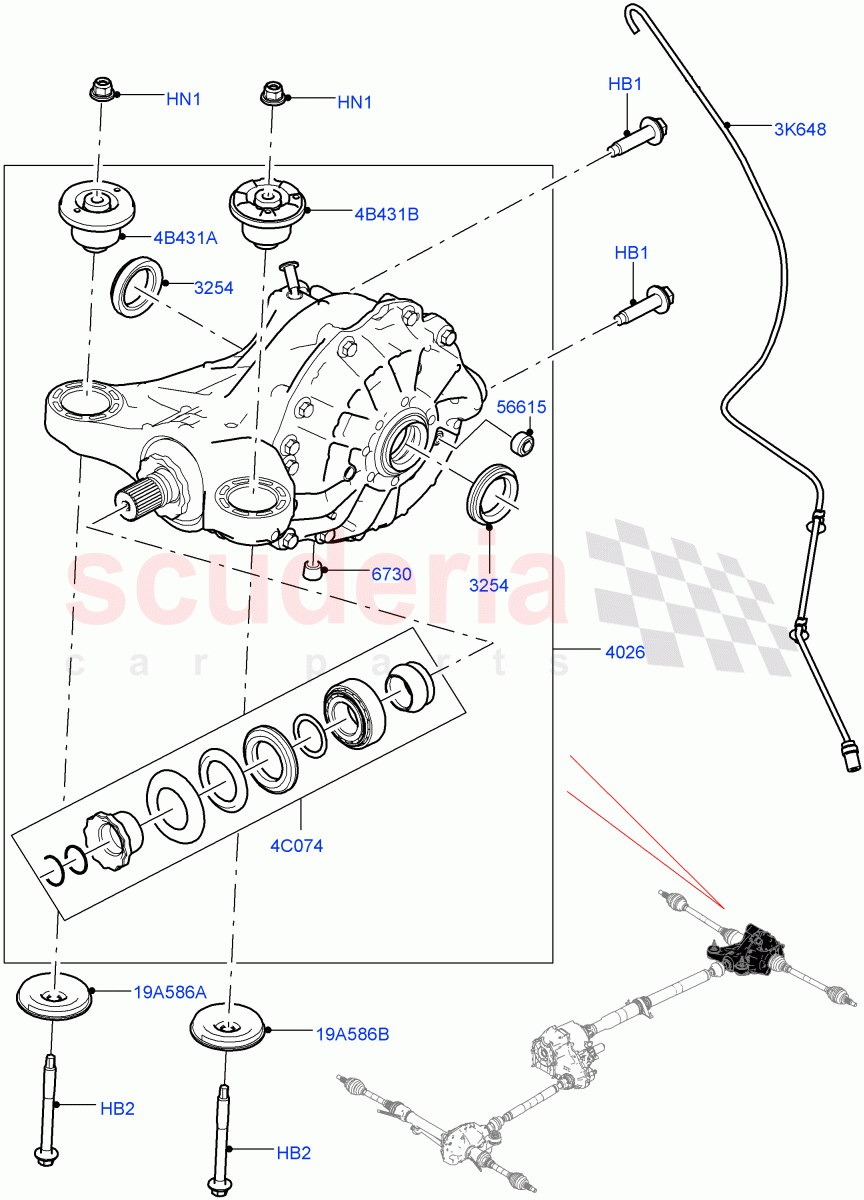

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR033214	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085983	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500510	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158113	SEAL - OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143206	DIFFERENTIAL - REAR	Enquire	To Order
	LR143208	DIFFERENTIAL - REAR	Enquire	To Order
	LR143210	DIFFERENTIAL - REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	TYB500110	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132690	TUBE - BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR158115	KIT - PINION REPAIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYB500060	PLUG - FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033261	INSULATOR - BUSH TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033262	INSULATOR - BUSH TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072608	PLATE - DIFFERENTAL MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072607	PLATE - DIFFERENTAL MOUNTING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR033214	BOLT	LR033214 BOLT Bolt And Washer, Hexagonal Head, M14 X 55MM / From: M2000001	-	2	Enquire
HB2	LR085983	BOLT	LR085983 BOLT Hexagonal Head, M12 X 114,5 / From: M2000001	-	2	Enquire
HN1	RYH500510	NUT - HEX.	RYH500510 NUT - HEX. M12, Nut And Washer / From: M2000001	-	2	Enquire
3K648	LR132690	TUBE - BREATHER	LR132690 TUBE - BREATHER From: M2000001	-	1	Enquire
4B431A	LR033261	INSULATOR - BUSH TYPE	LR033261 INSULATOR - BUSH TYPE RH / From: M2000001	-	1	Enquire
4B431B	LR033262	INSULATOR - BUSH TYPE	LR033262 INSULATOR - BUSH TYPE LH / From: M2000001	-	1	Enquire
4C074	LR158115	KIT - PINION REPAIR	LR158115 KIT - PINION REPAIR Includes Seal / From: M2000001	-	1	Enquire
19A586A	LR072608	PLATE - DIFFERENTAL MOUNTING	LR072608 PLATE - DIFFERENTAL MOUNTING RH / From: M2000001	-	1	Enquire
19A586B	LR072607	PLATE - DIFFERENTAL MOUNTING	LR072607 PLATE - DIFFERENTAL MOUNTING LH / From: M2000001	-	1	Enquire
3254	LR158113	SEAL - OIL	LR158113 SEAL - OIL Driveshaft / From: M2000001	-	2	Enquire
4026	LR143206	DIFFERENTIAL - REAR	LR143206 DIFFERENTIAL - REAR 3.0L AJ20D6 Diesel High / From: M2000001	-	1	Enquire
4026	LR143208	DIFFERENTIAL - REAR	LR143208 DIFFERENTIAL - REAR 3.0L AJ20P6 Petrol High / From: M2000001	-	1	Enquire
4026	LR143210	DIFFERENTIAL - REAR	LR143210 DIFFERENTIAL - REAR 2.0L I4 DSL HIGH DOHC AJ200 / From: M2000001	-	1	Enquire
4026	LR143218	DIFFERENTIAL - REAR	LR143218 DIFFERENTIAL - REAR 2.0L AJ200P Hi PHEV / From: M2000001	-	1	Enquire
6730	TYB500110	PLUG - OIL DRAIN	TYB500110 PLUG - OIL DRAIN Drain Plug, Plug - Oil Drain / From: M2000001	-	1	Enquire
56615	TYB500060	PLUG - FILLER	TYB500060 PLUG - FILLER Filler Plug / From: M2000001	-	1	Enquire
