Air Suspension Compressor And Lines (Compressor Assy) (With Four Corner Air Suspension, Electric Engine Battery-PHEV) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Air Suspension Compressor And Lines (Compressor Assy) (With Four Corner Air Suspension, Electric...

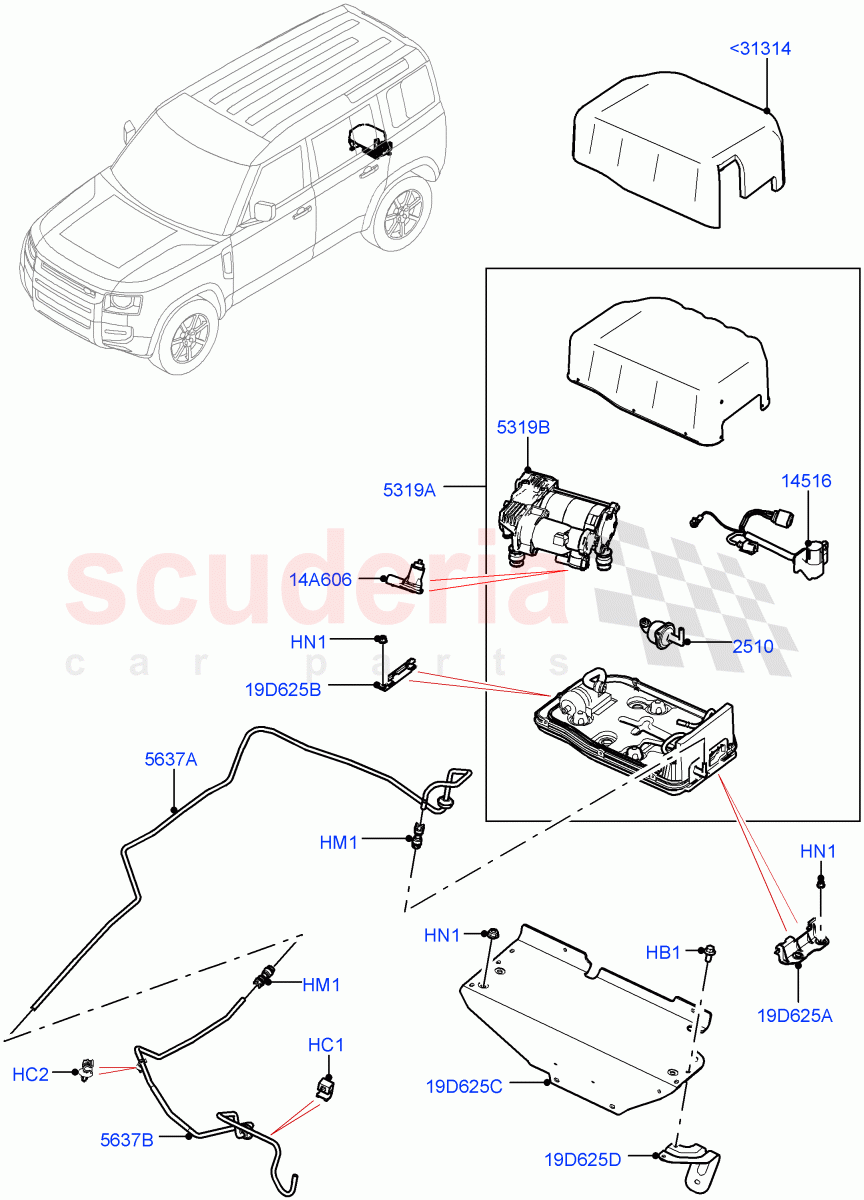

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR071777	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085629	CLIP - DOUBLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050522	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR083989	CONNECTOR - VALVE BLOCK TO PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140035	EXPANSION CHAMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095837	WIRE - AIR COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140034	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095838	COMPRESSOR - SUSPENSION LEVELLING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR132034	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129143	TUBE - AIR SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146263	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR146170	VALVE - SOLENOID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098840	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR098841	BRACKET - COMPRESSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR142089	BRACKET - BATTERY HOLD DOWN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130629	BRACKET - COMPRESSOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<31314	LR146263	PAD - FOAM	LR146263 PAD - FOAM Cover	-	1	Enquire
HB1	LR071777	BOLT - HEX.HEAD	LR071777 BOLT - HEX.HEAD M6 X 14MM	-	3	Enquire
HC1	LR085629	CLIP - DOUBLE	LR085629 CLIP - DOUBLE 8 x 6MM, Single	-	1	Enquire
HC2	LR050522	CLIP - HOSE	LR050522 CLIP - HOSE Clip 8-9X6.5X1.5-5	-	1	Enquire
HM1	LR083989	CONNECTOR - VALVE BLOCK TO PIPE	LR083989 CONNECTOR - VALVE BLOCK TO PIPE Air Tube Connector, In Line	-	2	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6	-	8	Enquire
14A606	LR146170	VALVE - SOLENOID	LR146170 VALVE - SOLENOID	-	1	Enquire
19D625A	LR098840	BRACKET - COMPRESSOR	LR098840 BRACKET - COMPRESSOR Left Side	-	1	Enquire
19D625B	LR098841	BRACKET - COMPRESSOR	LR098841 BRACKET - COMPRESSOR Right Side	-	1	Enquire
19D625C	LR142089	BRACKET - BATTERY HOLD DOWN	LR142089 BRACKET - BATTERY HOLD DOWN Upper	-	1	Enquire
19D625D	LR130629	BRACKET - COMPRESSOR	LR130629 BRACKET - COMPRESSOR Lower	-	1	Enquire
2510	LR140035	EXPANSION CHAMBER	LR140035 EXPANSION CHAMBER Air Suspension Lines	-	1	Enquire
5319A	LR140034	COMPRESSOR - SUSPENSION LEVELLING	LR140034 COMPRESSOR - SUSPENSION LEVELLING Compressor Assy	-	1	Enquire
5319B	LR095838	COMPRESSOR - SUSPENSION LEVELLING	LR095838 COMPRESSOR - SUSPENSION LEVELLING Compressor Only, Includes Rivets And Label	-	1	Enquire
5637A	LR132034	TUBE - AIR SUSPENSION	LR132034 TUBE - AIR SUSPENSION To Compressor	-	1	Enquire
5637B	LR129143	TUBE - AIR SUSPENSION	LR129143 TUBE - AIR SUSPENSION	-	1	Enquire
14516	LR095837	WIRE - AIR COMPRESSOR	LR095837 WIRE - AIR COMPRESSOR	-	1	Enquire
