Land Rover Defender (2020+) [2.0 Turbo Diesel] - Front Axle Case (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol, 3.0L AJ20P6 Petrol High, 2.0L...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR038977 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR039049 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FB110186 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FS110256 BOLT - FLANGED HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
TYP500100 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR085630 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050513 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR050515 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FB110096 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR158113 SEAL - OIL Enquire To Order
LR158113 SEAL - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR108815 DIFFERENTIAL - FRONT Enquire To Order
LR125192 DIFFERENTIAL - FRONT Enquire To Order
LR137487 DIFFERENTIAL - FRONT Enquire To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TYB500110 PLUG - OIL DRAIN Enquire To Order
TYB500110 PLUG - OIL DRAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR125891 TUBE - BREATHER Enquire To Order
LR039394 HOSE - VENT Enquire To Order
Photo Part No Description Price (each) Stock
LR091706 DAMPER - DAMPING MASS Enquire To Order
LR062295 DAMPER - DAMPING MASS Enquire To Order
LR062297 DAMPER - DAMPING MASS Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR052323 KIT - FDU TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR038842 BRACKET - FDU TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR100856 HOSE - VENT Enquire To Order
LR121135 HOSE - VENT Enquire To Order
LR082620 HOSE - VENT Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR067897 KIT - PINION REPAIR Enquire To Order
LR158114 KIT - PINION REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR060048 INSULATOR - BUSH TYPE Enquire To Order
LR033264 INSULATOR - BUSH TYPE Enquire To Order
LR060048 INSULATOR - BUSH TYPE Enquire To Order
Photo Part No Description Price (each) Stock
LR033265 INSULATOR - BUSH TYPE Enquire To Order
LR056079 INSULATOR - BUSH TYPE Enquire To Order
Photo Part No Description Price (each) Stock
TYB500060 PLUG - FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR087163 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR056077 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR033207 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
LR056078 WASHER - DIFFERENTIAL MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR019019 SEAL - SPECIAL Enquire To Order
View All

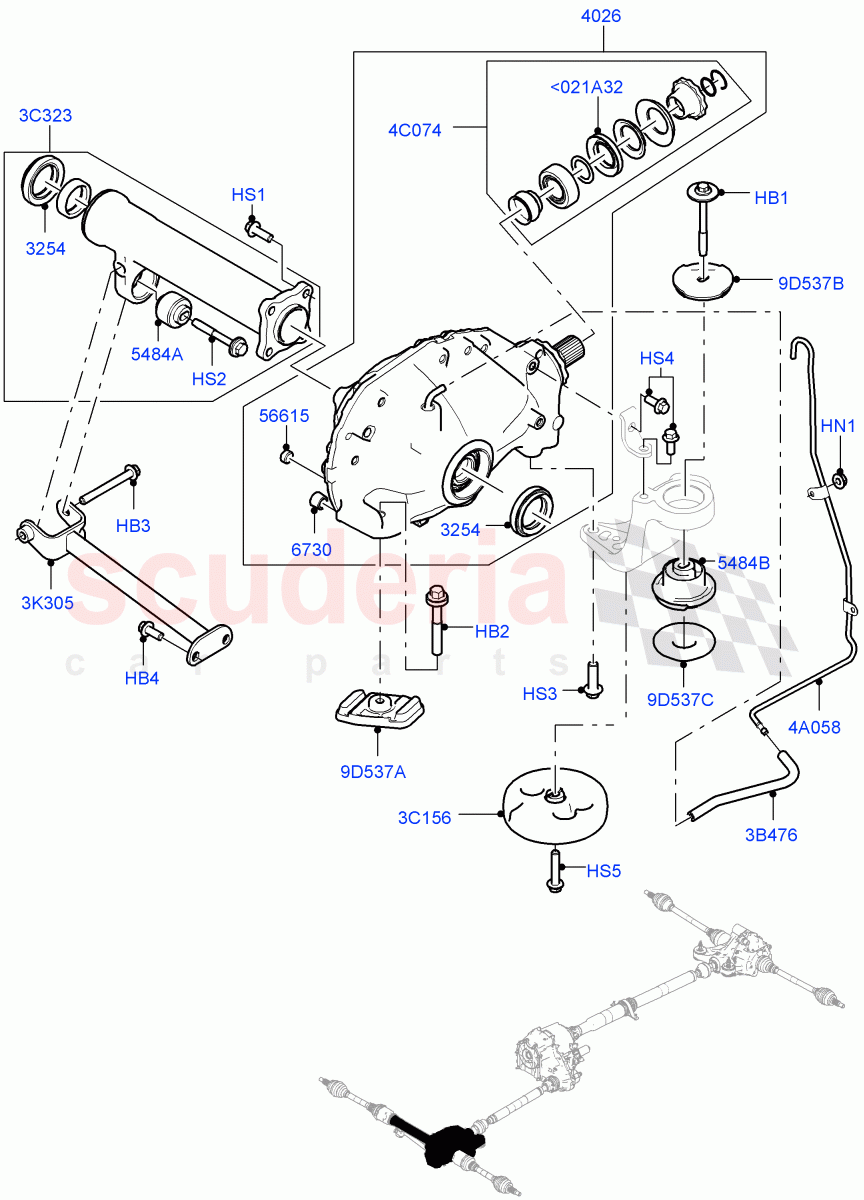

Front Axle Case (2.0L AJ200P Hi PHEV, 2.0L I4 High DOHC AJ200 Petrol, 3.0L AJ20P6 Petrol High, 2.0L I4 DSL HIGH DOHC AJ200, 5.0 Petrol AJ133 DOHC CDA) of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<021A32 LR019019
SEAL - SPECIAL 		- 1 Enquire
HB1 LR038977
BOLT
Hexagonal Head, M10 X 100 		- 1 Enquire
HB2 LR039049
BOLT
Hexagonal Head, M12 x 85MM 		- 1 Enquire
HB3 FB110186
BOLT - HEX.HEAD
2.0L AJ200P Hi PHEV / M10 X 90MM / From: M2047657 		- 1 Enquire
HB4 FS110256
BOLT - FLANGED HEX.
2.0L AJ200P Hi PHEV / M10 X 25MM / From: M2047657 		- 2 Enquire
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 		- 2 Enquire
HS1 TYP500100
SCREW
Hexagonal Head, M10 X 30MM 		- 4 Enquire
HS2 LR085630
SCREW
M10 x 75MM, Screw And Washer 		- 1 Enquire
HS3 LR050513
SCREW
Hexagonal Head, M12 x 40MM 		- 3 Enquire
HS4 LR050515
SCREW
Hexagonal Head, M10 x 26MM 		- 2 Enquire
HS5 FB110096
SCREW
HEX Flange, Hexagonal Head, M10 X 45 		- 1 Enquire
3B476 LR125891
TUBE - BREATHER
3.0L AJ20P6 Petrol High 		- 1 Enquire
3B476 LR039394
HOSE - VENT
2.0L AJ200P Hi PHEV 		- 1 Enquire
3C156 LR091706
DAMPER - DAMPING MASS
2.0L I4 DSL HIGH DOHC AJ200 		- 1 Enquire
3C156 LR062295
DAMPER - DAMPING MASS
2.0L AJ200P Hi PHEV / To: M2047656 		- 1 Enquire
3C156 LR062297
DAMPER - DAMPING MASS
2.0L AJ200P Hi PHEV / From: M2047657 		- 1 Enquire
3C156 LR062295
DAMPER - DAMPING MASS
2.0L I4 High DOHC AJ200 Petrol / From: M2047657 		- 1 Enquire
3C323 LR052323
KIT - FDU TUBE
Front Drive Unit Tube, Includes Tube, Bearing, Seal, Bush And Screw 		- 1 Enquire
3K305 LR038842
BRACKET - FDU TUBE SUPPORT
2.0L AJ200P Hi PHEV / From: M2047657 		- 1 Enquire
4A058 LR100856
HOSE - VENT
2.0L AJ200P Hi PHEV / Breather Pipe 		- 1 Enquire
4A058 LR121135
HOSE - VENT
3.0L AJ20P6 Petrol High / Breather Pipe 		- 1 Enquire
4A058 LR082620
HOSE - VENT
2.0L I4 High DOHC AJ200 Petrol / Breather Pipe 		- 1 Enquire
4A058 LR038826
HOSE - VENT
5.0 Petrol AJ133 DOHC CDA / Breather Pipe / From: M2000001 		- 1 Enquire
4C074 LR067897
KIT - PINION REPAIR
Includes Seal / To: L2999999 		- 1 Enquire
4C074 LR158114
KIT - PINION REPAIR
Includes Seal / From: M2000001 		- 1 Enquire
9D537A LR087163
WASHER - DIFFERENTIAL MOUNTING
Front 		- 1 Enquire
9D537B LR056077
WASHER - DIFFERENTIAL MOUNTING
Rear, Upper 		- 1 Enquire
9D537C LR033207
WASHER - DIFFERENTIAL MOUNTING
2.0L I4 DSL HIGH DOHC AJ200 / Lower, Rear 		- 1 Enquire
9D537C LR056078
WASHER - DIFFERENTIAL MOUNTING
3.0L AJ20P6 Petrol High / Lower, Rear 		- 1 Enquire
3254 LR158113
SEAL - OIL
Driveshaft / To: L2999999 		- 2 Enquire
3254 LR158113
SEAL - OIL
Driveshaft / From: M2000001 		- 2 Enquire
4026 LR108815
DIFFERENTIAL - FRONT
2.0L I4 DSL HIGH DOHC AJ200 / New Part-Please Check For Reman Version / To: L2999999 		- 1 Enquire
4026 LR125192
DIFFERENTIAL - FRONT
3.0L AJ20P6 Petrol High / To: L2999999 		- 1 Enquire
4026 LR137487
DIFFERENTIAL - FRONT
2.0L I4 High DOHC AJ200 Petrol / To: L2999999 		- 1 Enquire
4026 LR141951
DIFFERENTIAL - FRONT
2.0L I4 DSL HIGH DOHC AJ200 / From: M2000001 		- 1 Enquire
4026 LR141947
DIFFERENTIAL - FRONT
3.0L AJ20P6 Petrol High / From: M2000001 		- 1 Enquire
4026 LR142010
DIFFERENTIAL - FRONT
2.0L AJ200P Hi PHEV / From: M2000001 		- 1 Enquire
4026 LR125038
DIFFERENTIAL - FRONT
2.0L I4 DSL HIGH DOHC AJ200 / Remanufactured Part / To: L2999999 		- 1 Enquire
5484A LR060048
INSULATOR - BUSH TYPE
3.0L AJ20P6 Petrol High / Front Drive Unit Tube / To: L2999999 		- 1 Enquire
5484A LR033264
INSULATOR - BUSH TYPE
2.0L I4 DSL HIGH DOHC AJ200 / Front Drive Unit Tube / To: L2999999 		- 1 Enquire
5484A LR060048
INSULATOR - BUSH TYPE
Front Drive Unit Tube / From: M2000001 		- 1 Enquire
5484B LR033265
INSULATOR - BUSH TYPE
Differential / To: L2999999 		- 1 Enquire
5484B LR056079
INSULATOR - BUSH TYPE
Differential / From: M2000001 		- 1 Enquire
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain / To: L2999999 		- 1 Enquire
6730 TYB500110
PLUG - OIL DRAIN
Drain Plug, Plug - Oil Drain / From: M2000001 		- 1 Enquire
56615 TYB500060
PLUG - FILLER
Filler Plug 		- 1 Enquire
