Front Suspension Arms of Land Rover Land Rover Defender (2020+) [2.0 Turbo Diesel]

View All

Land Rover Defender (2020+) [2.0 Turbo Diesel] - Front Suspension Arms

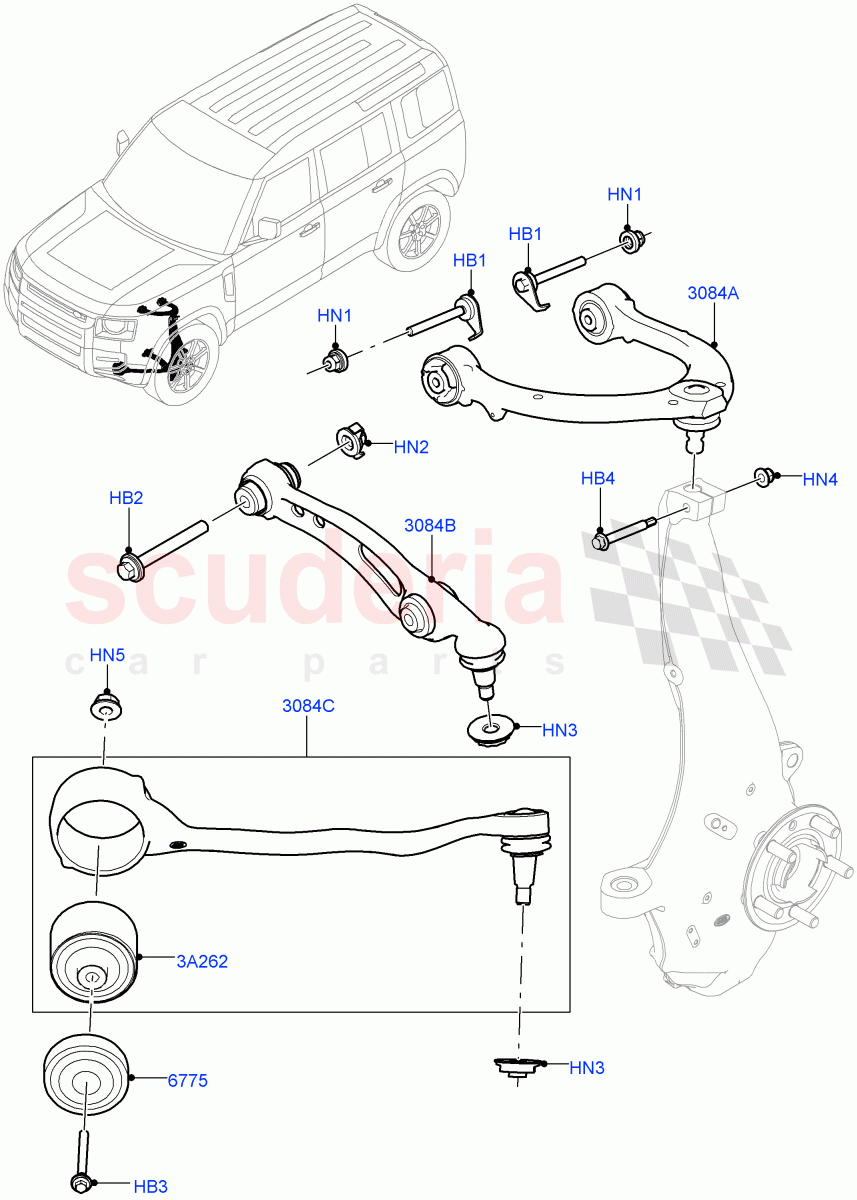

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038449	BOLT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072694	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR097372	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG000230	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034227	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038365	NUT - FLAG TYPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034221	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034277	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104875	COVER - SUSPENSION ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR130399	ARM - FRONT SUSPENSION	Enquire	To Order
	LR130403	ARM - FRONT SUSPENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123628	ARM - FRONT SUSPENSION	Enquire	To Order
	LR137876	ARM - FRONT SUSPENSION	Enquire	To Order
	LR175797	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133896	ARM - FRONT SUSPENSION	Enquire	To Order
	LR133899	ARM - FRONT SUSPENSION	Enquire	To Order
	LR144505	ARM - FRONT SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133900	BUSH - SUSPENSION ARM	Enquire	To Order
	LR174897	BUSH - SUSPENSION ARM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR038449	BOLT - FLAG TYPE	LR038449 BOLT - FLAG TYPE Hexagonal Head, M10 X 90MM	-	4	Enquire
HB2	LR072694	BOLT	LR072694 BOLT Hexagonal Head, M14 X 125	-	2	Enquire
HB3	LR097372	BOLT	LR097372 BOLT Hexagonal Head, M14 X 148MM	-	2	Enquire
HB4	KYG000230	BOLT	KYG000230 BOLT Hexagonal Head, M10 x 70MM	-	2	Enquire
HN1	LR034227	NUT - FLANGED	LR034227 NUT - FLANGED M10	-	4	Enquire
HN2	LR038365	NUT - FLAG TYPE	LR038365 NUT - FLAG TYPE Flag Type, M14	-	2	Enquire
HN3	LR034221	NUT - FLANGED	LR034221 NUT - FLANGED M16	-	4	Enquire
HN4	FY110056	NUT	FY110056 NUT M10	-	2	Enquire
HN5	LR034277	NUT	LR034277 NUT M14, Nut And Washer	-	2	Enquire
3A262	LR133900	BUSH - SUSPENSION ARM	LR133900 BUSH - SUSPENSION ARM To: L2007640	-	1	Enquire
3A262	LR174897	BUSH - SUSPENSION ARM	LR174897 BUSH - SUSPENSION ARM From: L2007641	-	1	Enquire
3084A	LR130399	ARM - FRONT SUSPENSION	LR130399 ARM - FRONT SUSPENSION RH, Upper	-	1	Enquire
3084A	LR130403	ARM - FRONT SUSPENSION	LR130403 ARM - FRONT SUSPENSION LH, Upper	-	1	Enquire
3084B	LR123628	ARM - FRONT SUSPENSION	LR123628 ARM - FRONT SUSPENSION RH, Lower, Rear / To: L2999999	-	1	Enquire
3084B	LR137876	ARM - FRONT SUSPENSION	LR137876 ARM - FRONT SUSPENSION LH, Lower, Rear / To: L2999999	-	1	Enquire
3084B	LR175797	ARM - FRONT SUSPENSION	LR175797 ARM - FRONT SUSPENSION RH, Lower, Rear / From: M2000001	-	1	Enquire
3084B	LR137876	ARM - FRONT SUSPENSION	LR137876 ARM - FRONT SUSPENSION LH, Lower, Rear / From: M2000001	-	1	Enquire
3084C	LR133896	ARM - FRONT SUSPENSION	LR133896 ARM - FRONT SUSPENSION LH, Front, Lower / To: L2007640	-	1	Enquire
3084C	LR133899	ARM - FRONT SUSPENSION	LR133899 ARM - FRONT SUSPENSION RH, Front, Lower / To: L2007640	-	1	Enquire
3084C	LR144505	ARM - FRONT SUSPENSION	LR144505 ARM - FRONT SUSPENSION RH, Front, Lower / From: L2007641	-	1	Enquire
3084C	LR144506	ARM - FRONT SUSPENSION	LR144506 ARM - FRONT SUSPENSION LH, Front, Lower / From: L2007641	-	1	Enquire
6775	LR104875	COVER - SUSPENSION ARM	LR104875 COVER - SUSPENSION ARM Protective	-	4	Enquire
