Rear Seat Pads/Valances & Heating (Pads/Valances) (40/20/40 Super Slouch Rear Seat) of Land Rover Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10]

View All

Land Rover Range Rover (2022+) [4.4 V8 Turbo Petrol NC10] - Rear Seat Pads/Valances & Heating (Pads/Valances) (40/20/40 Super Slouch Rear Seat)

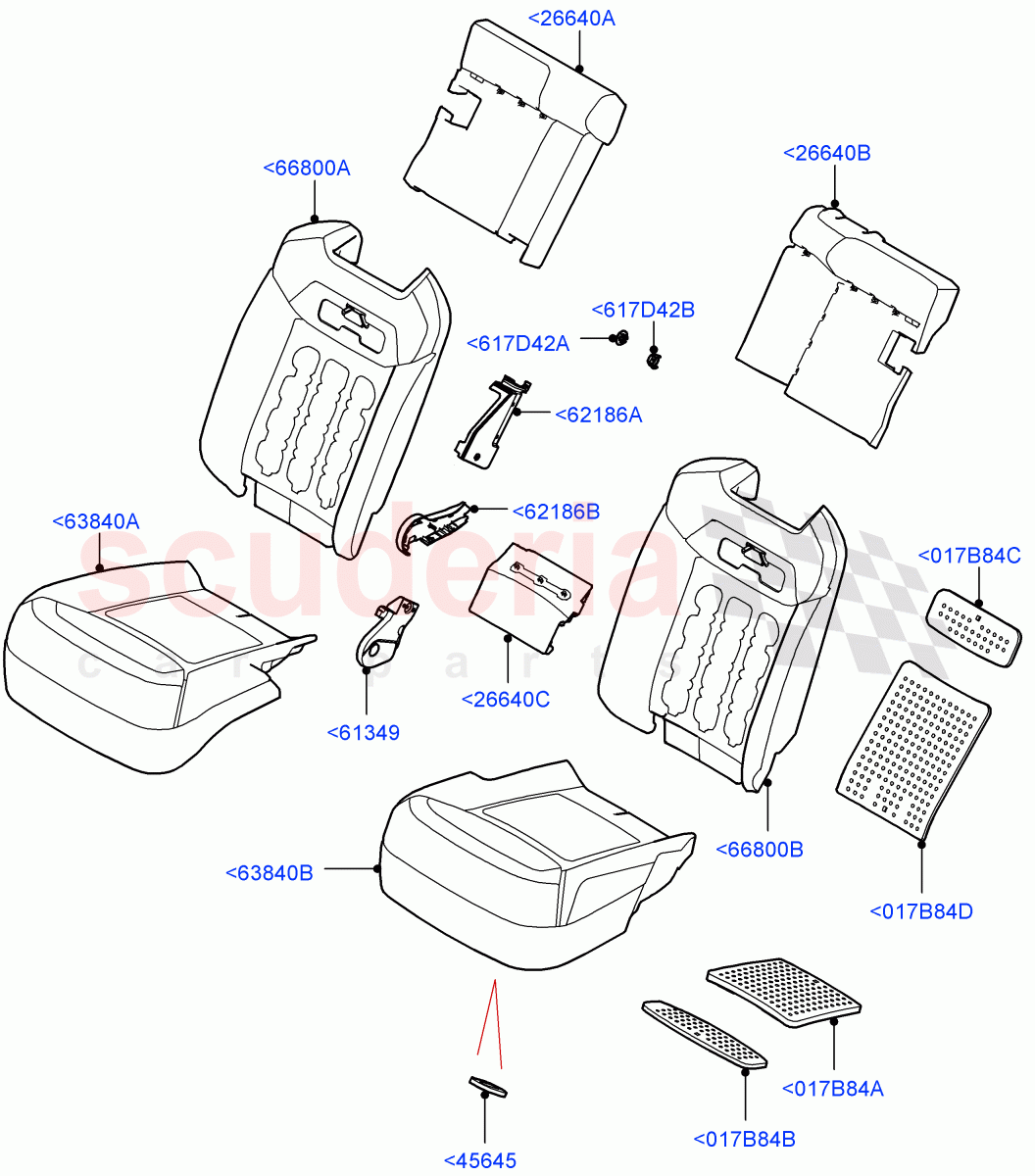

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR041100	RETAINER - SEAT DUCT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110705	COVER - RECLINE MECHANISM	Enquire	To Order
	LR111319	COVER - RECLINE MECHANISM	Enquire	To Order
	LR111319	COVER - RECLINE MECHANISM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR160975	PAD - BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160976	PAD - BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR160977	PAD - BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR108140	VALANCE - SEAT	Enquire	To Order
	LR108140	VALANCE - SEAT	Enquire	To Order
	LR108135	VALANCE - SEAT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR163280	VALANCE - SEAT CUSHION	Enquire	To Order
	LR163281	VALANCE - SEAT CUSHION	Enquire	To Order
	LR163282	VALANCE - SEAT CUSHION	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151322	PAD - REAR SEAT CUSHION	Enquire	To Order
	LR151322	PAD - REAR SEAT CUSHION	Enquire	To Order
	LR151323	PAD - REAR SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR151326	PAD - REAR SEAT CUSHION	Enquire	To Order
	LR151326	PAD - REAR SEAT CUSHION	Enquire	To Order
	LR151327	PAD - REAR SEAT CUSHION	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR152398	PAD - REAR SEAT BACK	Enquire	To Order
	LR152398	PAD - REAR SEAT BACK	Enquire	To Order
	LR168170	Pad - Rear Seat Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152399	PAD - REAR SEAT BACK	Enquire	To Order
	LR152399	PAD - REAR SEAT BACK	Enquire	To Order
	LR168171	Pad - Rear Seat Back	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151405	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151404	PAD - FOAM	Enquire	To Order
	LR171361	Pad - Foam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151406	PAD - FOAM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR151407	PAD - FOAM	Enquire	To Order
	LR171362	Pad - Foam	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125089	BEZEL - SEAT BACK LOCKING MECHANISM	Enquire	To Order
	LR125089	BEZEL - SEAT BACK LOCKING MECHANISM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR118366	BEZEL - SEAT BACK LOCKING MECHANISM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B84A	LR151405	PAD - FOAM	LR151405 PAD - FOAM For Seat Cushion, RH/LH, Upper	-	2	Enquire
<017B84B	LR151404	PAD - FOAM	LR151404 PAD - FOAM Less SV Model Spec / For Seat Cushion, Lower, RH/LH	-	2	Enquire
<017B84B	LR171361	Pad - Foam	LR171361 Pad - Foam SV1 Model Spec / For Seat Cushion, Lower, RH/LH / From: PA000001	-	2	Enquire
<017B84C	LR151406	PAD - FOAM	LR151406 PAD - FOAM For Seat Back, RH/LH, Upper	-	2	Enquire
<017B84D	LR151407	PAD - FOAM	LR151407 PAD - FOAM Less SV Model Spec / For Seat Back, Lower, RH/LH	-	2	Enquire
<017B84D	LR171362	Pad - Foam	LR171362 Pad - Foam SV1 Model Spec / For Seat Back, Lower, RH/LH / From: PA000001	-	2	Enquire
<617D42A	LR125089	BEZEL - SEAT BACK LOCKING MECHANISM	LR125089 BEZEL - SEAT BACK LOCKING MECHANISM Int Ebony Carpet / Outer / To: NA999999	-	1	Enquire
<617D42A	LR125089	BEZEL - SEAT BACK LOCKING MECHANISM	LR125089 BEZEL - SEAT BACK LOCKING MECHANISM Outer / From: PA000001	-	1	Enquire
<617D42B	LR118366	BEZEL - SEAT BACK LOCKING MECHANISM	LR118366 BEZEL - SEAT BACK LOCKING MECHANISM Inner	-	1	Enquire
<26640A	LR160975	PAD - BULKHEAD	LR160975 PAD - BULKHEAD RH	-	1	Enquire
<26640B	LR160976	PAD - BULKHEAD	LR160976 PAD - BULKHEAD LH	-	1	Enquire
<26640C	LR160977	PAD - BULKHEAD	LR160977 PAD - BULKHEAD Centre	-	1	Enquire
<45645	LR041100	RETAINER - SEAT DUCT	LR041100 RETAINER - SEAT DUCT Air Duct, RH/LH	-	2	Enquire
<61349	LR110705	COVER - RECLINE MECHANISM	LR110705 COVER - RECLINE MECHANISM Int Ebony Carpet / RH / To: NA999999	-	1	Enquire
<61349	LR111319	COVER - RECLINE MECHANISM	LR111319 COVER - RECLINE MECHANISM Int Ebony Carpet / LH / To: NA999999	-	1	Enquire
<61349	LR111319	COVER - RECLINE MECHANISM	LR111319 COVER - RECLINE MECHANISM LH / From: PA000001	-	1	Enquire
<61349	LR110705	COVER - RECLINE MECHANISM	LR110705 COVER - RECLINE MECHANISM RH / From: PA000001	-	1	Enquire
<62186A	LR108140	VALANCE - SEAT	LR108140 VALANCE - SEAT Int Ebony Carpet / LH, Inner / To: NA999999	-	1	Enquire
<62186A	LR108140	VALANCE - SEAT	LR108140 VALANCE - SEAT LH, Inner / From: PA000001	-	1	Enquire
<62186A	LR108135	VALANCE - SEAT	LR108135 VALANCE - SEAT Int Ebony Carpet / RH, Inner / To: NA999999	-	1	Enquire
<62186A	LR108135	VALANCE - SEAT	LR108135 VALANCE - SEAT RH, Inner / From: PA000001	-	1	Enquire
<62186B	LR163280	VALANCE - SEAT CUSHION	LR163280 VALANCE - SEAT CUSHION Caraway / Centre, Right Side	-	1	Enquire
<62186B	LR163281	VALANCE - SEAT CUSHION	LR163281 VALANCE - SEAT CUSHION Deep Garnet / Centre, Right Side	-	1	Enquire
<62186B	LR163282	VALANCE - SEAT CUSHION	LR163282 VALANCE - SEAT CUSHION Less SV Model Spec, Perlino / Centre, Right Side	-	1	Enquire
<62186B	LR110672	VALANCE - SEAT CUSHION	LR110672 VALANCE - SEAT CUSHION Light Cloud Duotone / Centre, Right Side	-	1	Enquire
<62186B	LR110672	VALANCE - SEAT CUSHION	LR110672 VALANCE - SEAT CUSHION Perlino, SV Model Spec / Centre, Right Side / From: PA000001	-	1	Enquire
<63840A	LR151322	PAD - REAR SEAT CUSHION	LR151322 PAD - REAR SEAT CUSHION Less Rear Seat Calf Rests / RH / To: NA999999	-	1	Enquire
<63840A	LR151322	PAD - REAR SEAT CUSHION	LR151322 PAD - REAR SEAT CUSHION Less SV Model Spec, Passenger Side Heated Calf Rest, RHD / RH / From: PA000001	-	1	Enquire
<63840A	LR151323	PAD - REAR SEAT CUSHION	LR151323 PAD - REAR SEAT CUSHION Driver + Passenger Heated Calf Rest / RH / To: NA999999	-	1	Enquire
<63840A	LR151323	PAD - REAR SEAT CUSHION	LR151323 PAD - REAR SEAT CUSHION LHD, Less SV Model Spec, Passenger Side Heated Calf Rest / RH / From: PA000001	-	1	Enquire
<63840A	LR167322	Pad - Rear Seat Cushion	LR167322 Pad - Rear Seat Cushion Passenger Side Heated Calf Rest, RHD, SV1 Model Spec / RH / From: PA000001	-	1	Enquire
<63840A	LR167323	Pad - Rear Seat Cushion	LR167323 Pad - Rear Seat Cushion LHD, Passenger Side Heated Calf Rest, SV1 Model Spec / RH / From: PA000001	-	1	Enquire
<63840B	LR151326	PAD - REAR SEAT CUSHION	LR151326 PAD - REAR SEAT CUSHION Less Rear Seat Calf Rests / LH / To: NA999999	-	1	Enquire
<63840B	LR151326	PAD - REAR SEAT CUSHION	LR151326 PAD - REAR SEAT CUSHION LHD, Less SV Model Spec, Passenger Side Heated Calf Rest / LH / From: PA000001	-	1	Enquire
<63840B	LR151327	PAD - REAR SEAT CUSHION	LR151327 PAD - REAR SEAT CUSHION Driver + Passenger Heated Calf Rest / LH / To: NA999999	-	1	Enquire
<63840B	LR151327	PAD - REAR SEAT CUSHION	LR151327 PAD - REAR SEAT CUSHION Less SV Model Spec, Passenger Side Heated Calf Rest, RHD / LH / From: PA000001	-	1	Enquire
<63840B	LR167324	Pad - Rear Seat Cushion	LR167324 Pad - Rear Seat Cushion LHD, Passenger Side Heated Calf Rest, SV1 Model Spec / LH / From: PA000001	-	1	Enquire
<63840B	LR167326	Pad - Rear Seat Cushion	LR167326 Pad - Rear Seat Cushion Passenger Side Heated Calf Rest, RHD, SV1 Model Spec / LH / From: PA000001	-	1	Enquire
<66800A	LR152398	PAD - REAR SEAT BACK	LR152398 PAD - REAR SEAT BACK RH / To: NA999999	-	1	Enquire
<66800A	LR152398	PAD - REAR SEAT BACK	LR152398 PAD - REAR SEAT BACK Less SV Model Spec / RH / From: PA000001	-	1	Enquire
<66800A	LR168170	Pad - Rear Seat Back	LR168170 Pad - Rear Seat Back SV1 Model Spec / RH / From: PA000001	-	1	Enquire
<66800B	LR152399	PAD - REAR SEAT BACK	LR152399 PAD - REAR SEAT BACK LH / To: NA999999	-	1	Enquire
<66800B	LR152399	PAD - REAR SEAT BACK	LR152399 PAD - REAR SEAT BACK Less SV Model Spec / LH / From: PA000001	-	1	Enquire
<66800B	LR168171	Pad - Rear Seat Back	LR168171 Pad - Rear Seat Back SV1 Model Spec / LH / From: PA000001	-	1	Enquire
